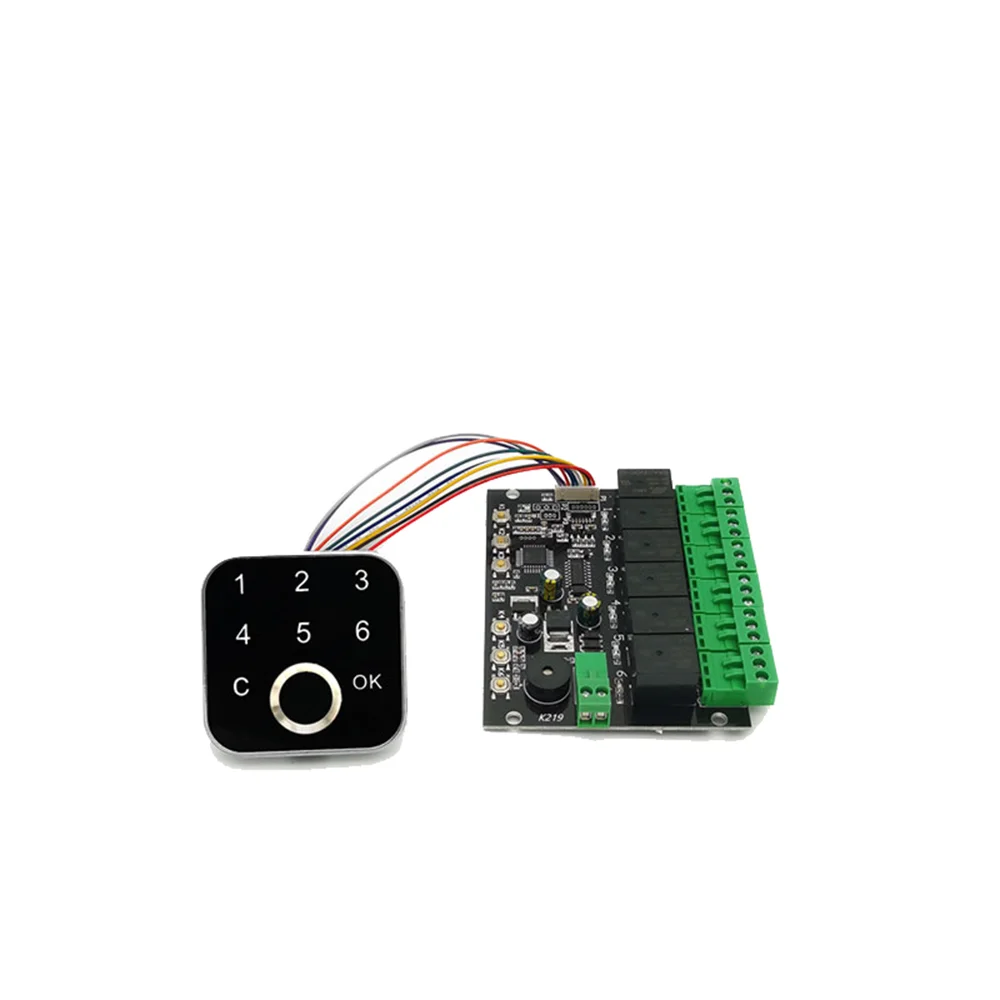

6 Way Relay Finger Print Switch Biometric Fingerprint Internal Door Lock Control Board Programmable Fingerprint Lock

1. Setting key 1.1 Short press the setting button, the blue light flashes quickly, you can register your fingerprints, put your finger in the collection area, and hear the music to indicate that the fingerprint registration is successful, you can register 10 fingerprints continuously, and exit the registration state without registering for a few seconds. (Only 10 fingerprints can be registered for each button) 1.2 Long press the setting button, the red light flashes and the relay light is on, if you hear a long tone, the fingerprint at that location is deleted; long press any setting button to hear two long sounds, all lights are on, the initialization is successful, and the factory values ​​are restored. 2. Keyboard settings 2.1. Set up management fingerprints: Touch the panel, the pink light is on, press 123456【OK】1【OK】 The blue light flashes, the finger is placed in the fingerprint collection area, and the sound of music indicates that the registration is successful, and 10 fingerprints can be registered continuously. If the management fingerprint is full, there will be an error tone and the red light will flash. In addition to setting functions, the administrator fingerprint can also unlock all relay switches. For example, to unlock the No. 3 relay, press the number 3 after the management fingerprint is passed. Note: When the management fingerprint is the same as the user fingerprint, the administrator function is used first. 2.2. Empty system to factory reset mode: Press the management password or management fingerprint【OK】1【C】(long press the C key), all relay lights are on, indicating that the clearing is successful, and the factory defaults are restored. 2.3. Set admin password: Press Admin Password or Admin Fingerprint【OK】2【OK】New password【OK】 After the password is set successfully, the previous set of passwords will be overwritten, and the original management password will be invalid; the management password can only be used for management settings and cannot be unlocked. (Password length: 3-6 digits) 2.4. Registering User Fingerprints: Press management password or manage fingerprint【OK】3【OK】fingerprint position number (1-6)【OK】 Note: When a finger records several relay positions at the same time, after pressing the fingerprint, the relay can be unlocked, and the interval time is 0.5 seconds. 2.5. Delete user fingerprint: Press the management password or manage the fingerprint【OK】3【C】fingerprint position number (1-6)【C】(long press the C key for the second time) the relay indicator lights up, all the fingerprints in this position are deleted successfully; 2.6. Set the relay password: the password length is 3-8 digits, the relay password cannot be repeated with the management password, and the repeated setting has a "di! di! di" error warning sound Press the management password or manage the fingerprint【OK】4【OK】Location number (1-6) 【OK】New password【OK】Use password: After touching the bright pink light on the screen, enter the new password【OK】 Support virtual password input, just press a few numbers and then enter the correct password 2.7. Delete relay password: Press the management password or management fingerprint [OK] 4 [C] position number (1-6) [C] (long press the C key for the second time) the relay indicator lights up, and the password for this position is successfully deleted; 2.8. Relay Mode Settings: Press management password or management fingerprint【OK】5【OK】Position number (1-6)【OK】Relay mode (1-6)【OK】
