Description

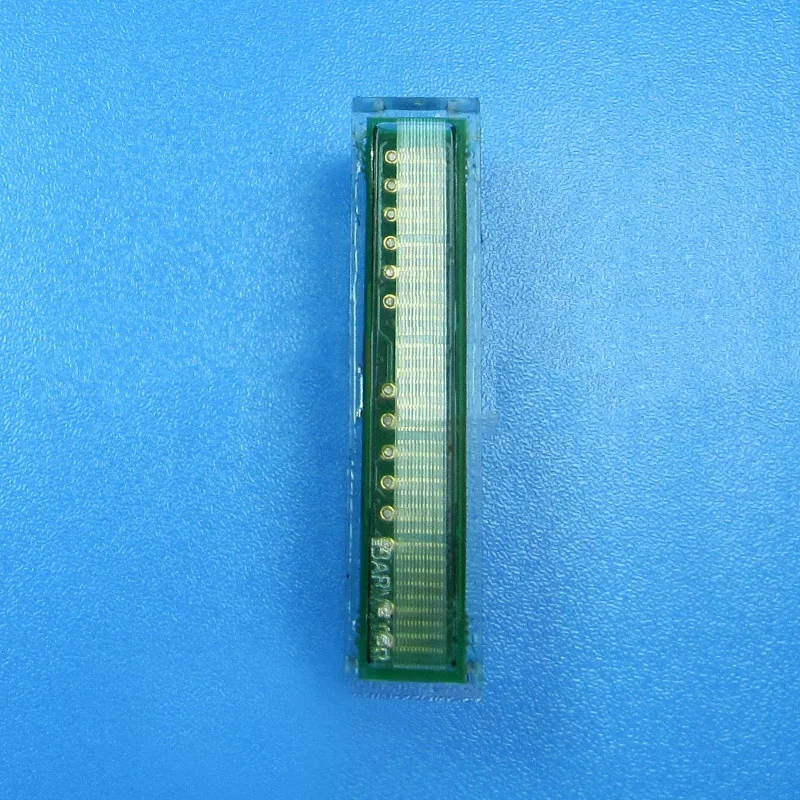

6*8 Matrix LED Display Bar Light Beam 51 Segments 42mm LED Linear Array LED Panel Minting Bar electronic Display Meter
Product Description
The BL series of LED Bargraph display, usinghigh brightness LED chips and semiconductorencapsulations processing technology , is theideal display device to replace moving coilindicators. Widely used in electronic display meters and instruments.The feature is asfollows.
Features
The use of grating broadening technology,to achieve high-density display Clearly display, uniform brightness Antimagnetic, aseismatic, impact resistance High reliability, maximum mean life
Specification
Absolute Maximum Rating(TA = 25℃ )
Peak forward current : 30~100mA, Typ 80mA Reverse voltage : 5V Power dissipation : Typ 0.2W (F.S) , Max0.3 W Operating temperature range : -25 ~ 70 °C
Storage temperature range: -40~ 85°C Soldering time at 260°C : 3sec .
