Description
Products Description
OPERATION SPECIFICATION

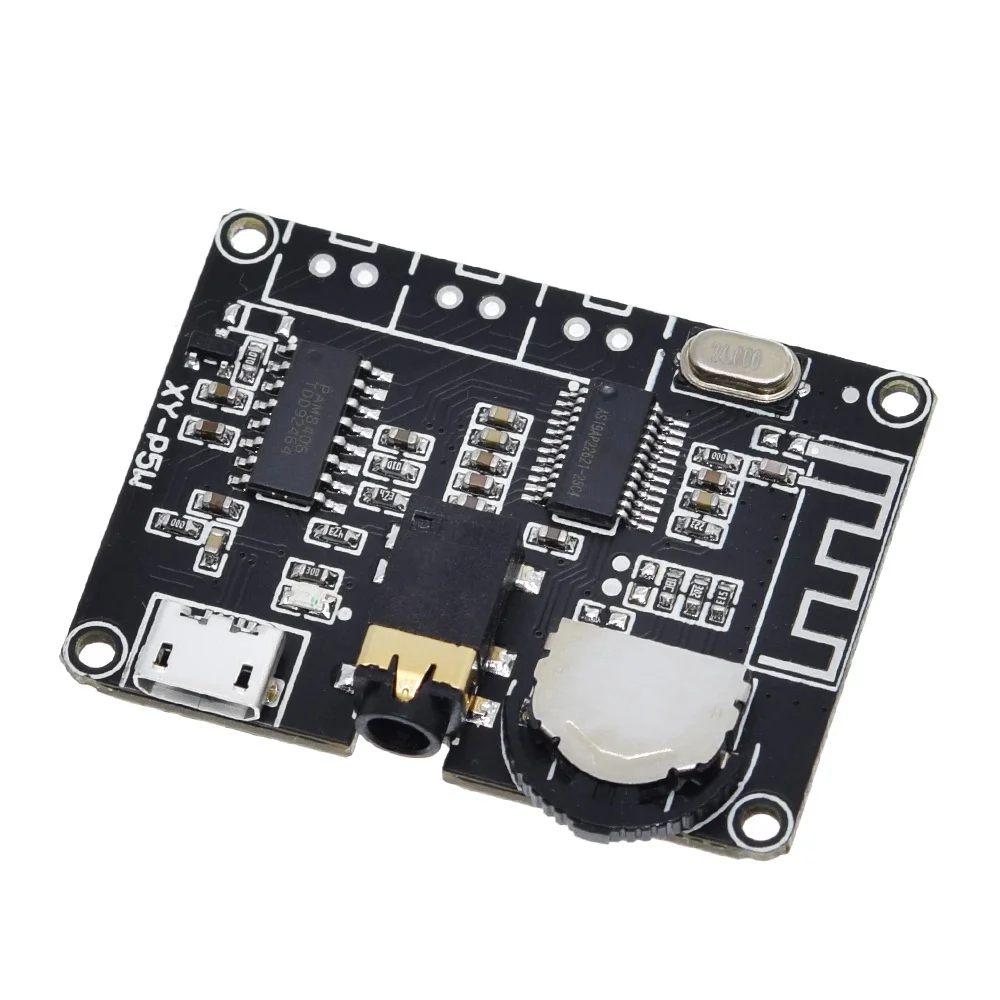

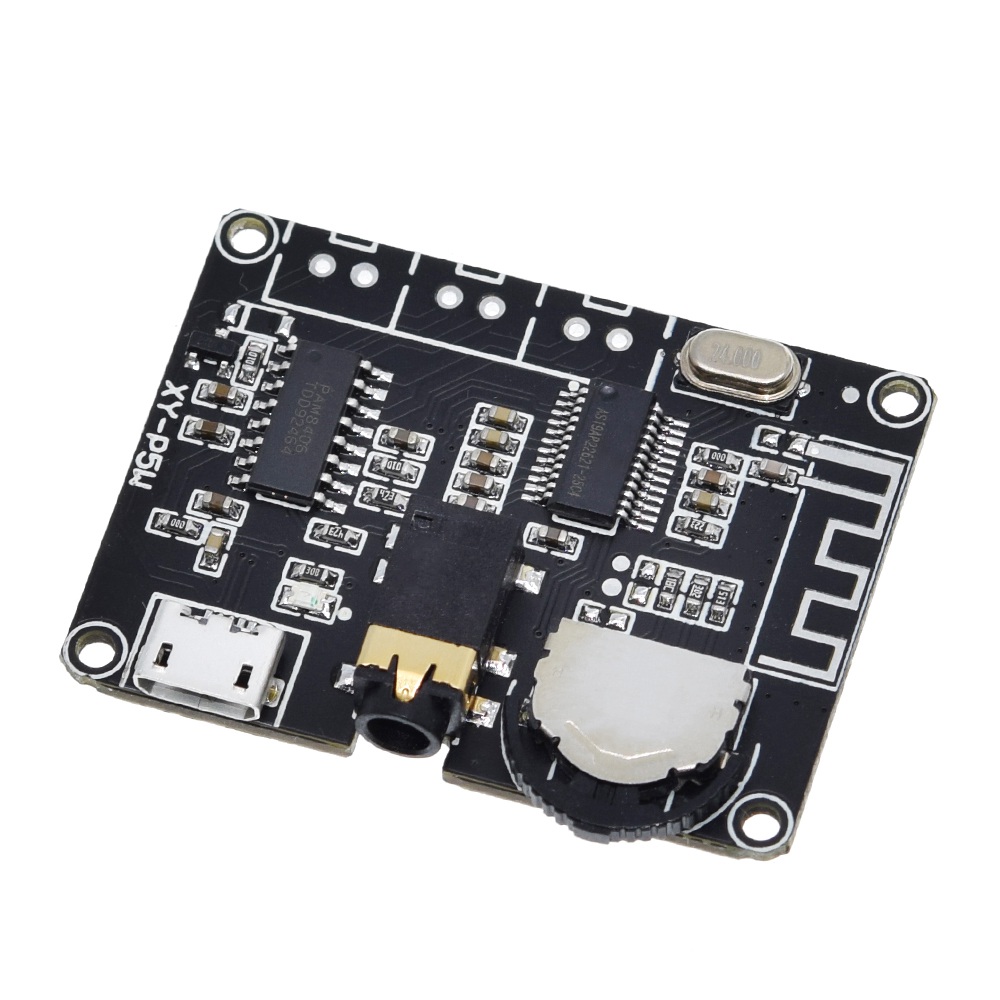

Supply the module,the blue LED is onand it goes into BT mode;Waiting for pairing after playing the audio toneTurn on phone BT
“XY-P5W will be searched and display Click the “XY-P5W”,it will connect to the board.It connects successfully with an audio tone
After this you can play the music.The power amplifier board will prepare for the next pairing with an audio tone,When the BT is
disconnected.
Precautions for using 3.7V lithium battery for power supply
1. When the battery is used for power supply, the decoding board will automatically shut down when the battery voltage is lower
than 3.3V. It needs to be powered on again or fully charged, and then short circuit the on / off contact for 2 seconds before it
can work normally.
2.When the battery is used for power supply, if the voltage of the battery is too low,"Zizi" noise may appear, in this case, the
battery needs to be charged
3.Since there is no lithium battery charging protection circuit designed on the decoding board. it is recommended to use the
lithium battery with its own protection board
4. If your charging battery supports micro USB direct charging, you can use micro USB
to charge the battery directly
5. The power supply must be more than 10W. It is recommended to use a power supply of more than 20W. If the power supply is not
enough, the sound quality will be affected
Supply the module,the blue LED is onand it goes into BT mode;Waiting for pairing after playing the audio toneTurn on phone BT
“XY-P5W will be searched and display Click the “XY-P5W”,it will connect to the board.It connects successfully with an audio tone
After this you can play the music.The power amplifier board will prepare for the next pairing with an audio tone,When the BT is
disconnected.
Precautions for using 3.7V lithium battery for power supply
1. When the battery is used for power supply, the decoding board will automatically shut down when the battery voltage is lower
than 3.3V. It needs to be powered on again or fully charged, and then short circuit the on / off contact for 2 seconds before it
can work normally.
2.When the battery is used for power supply, if the voltage of the battery is too low,"Zizi" noise may appear, in this case, the
battery needs to be charged
3.Since there is no lithium battery charging protection circuit designed on the decoding board. it is recommended to use the
lithium battery with its own protection board
4. If your charging battery supports micro USB direct charging, you can use micro USB
to charge the battery directly
5. The power supply must be more than 10W. It is recommended to use a power supply of more than 20W. If the power supply is not
enough, the sound quality will be affected
