Description

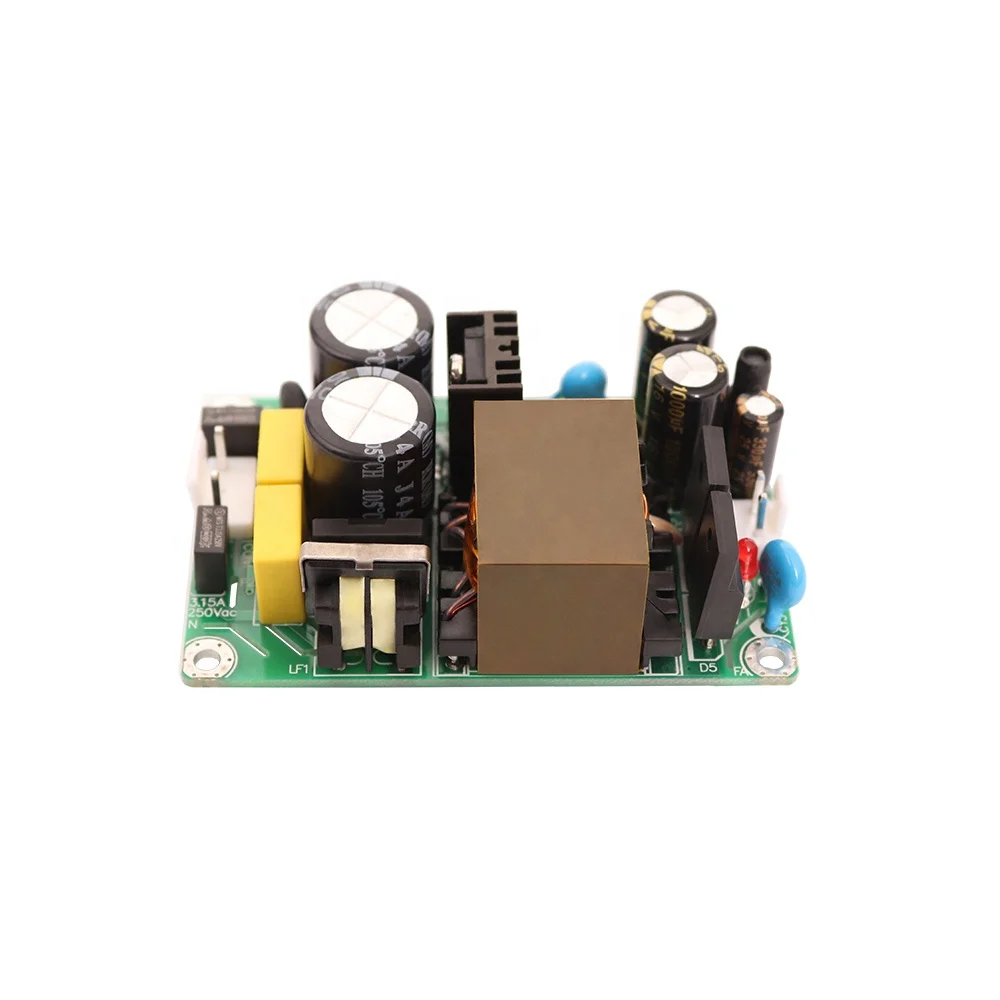

5V6A Switching Power Supply Automatic Voltage Regulator Circuit 220V AC Voltage Regulator for LED Dimming Thermostat
Product Description
Feature
Input voltage: AC: 100V-528V or DC: 141V-746V Temperature range: -30 ℃ ~ 60 ℃ Isolation withstand voltage: 3000VAC high-voltage isolated power supply Regulated output, low ripple Output short circuit, over current, over power protection High efficiency and high reliability
|
Model
|
Model
|
MP-U36S05-PS
|
MP-U36S12-PS
|
MP-U36S24-PS
|
||
|
Out
|
Output voltage
|
5v
|
12v
|
24v
|
||
|
Rated current (natural cooling)
|
6A
|
3A
|
1.5A
|
|||
|
Current range (natural cooling)
|
0.1 ~ 6A
|
0.1 ～ 3A
|
0.1 ~ 1.5A
|
|||
|
Rated power (natural cooling)
|
30W
|
36W
|
36W
|
|||
|
Ripple (maximum)
|
50mVp-p
|
50mVp-p
|
80mVp-p
|
|||
|
Efficiency (Typ)
|
82%
|
86.5%
|
89%
|
|||
|
Voltage adjustment range
|
not adjustable, the maximum input support 85V-528V input, any two of the four three-phase electricity 110V220V380V can work
|
|||||
|
Input
|
Start, rise time
|
1500ms, 30ms / 230VAC2500ms, 30ms / 115VAC (at full load)
|
||||
|
Voltage range
|
100 ~ 528VAC or 141 ~ 746VDC
|
|||||
|
Frequency range
|
47 ~ 63Hz
|
|||||
|
AC current (typ)
|
<0.8A No load less than 0.3W
|
|||||
|
Inrush current (typ)
|
Cold start: 30A / 230VAC
|
|||||
|
Protection
|
Leakage current
|
<2mA / 240VAC
|
||||
|
Overload
|
120% ~ 180% of rated output power
|
|||||
|
Overload
|
Protection mode: Break mode, automatic recovery after abnormal load condition is removed
|
|||||
|
Operating temperature / humidity
|
-30 ~ 60 ℃ (please refer to "derating curve") 20 ~ 90% RH, no condensation
|
|||||
|
Storage temperature and humidity:
|
-40 ~ + 85 ℃, 10 ~ 95% RH Safe electromagnetic compatibility
|
|||||
|
Safe electromagnetic compatibility
|
Safety specification
|
GB4943.1-2011
|
||||
|
Withstand voltage
|
I / P-0 / P: 3KVAC
|
|||||
|
Insulation resistance
|
I / P-O / P100M Ohms / 500VDC / 25 ℃ / 70% RH
|
|||||
|
Electromagnetic compatibility emission
|
comply with EN55032 (CISPR32) Class B, GB 17625.1-2012
|
|||||
|
Electromagnetic Compatibility Immunity
|
Comply with GB / T9254-2008
|
|||||
|
Other
|
Size
|
76 * 50 * 26.5mm
|
||||
|
Weight
|
95g adopts American PI chip, there will be sound under no load, and the frequency problem will disappear after loading
|
|||||
Remarks
1. All parameters are measured under rated voltage 220VAC input, rated load, ambient temperature 25 ℃, humidity 70%. 2. Accuracy: Including setting error, voltage regulation rate, load regulation rate. 3. Ripple test: connect the power supply and the load with a 30CM long twisted wire. The load is connected to 0, 1uF ceramic capacitor and 47uF capacitor at the load end with 20MHz oscilloscope. 4. Voltage regulation rate: Under the condition of rated load, the input voltage is measured from low to high. 5. Load adjustment rate: the measured output changes from 1% load to 100% load.
