Description
Product Description

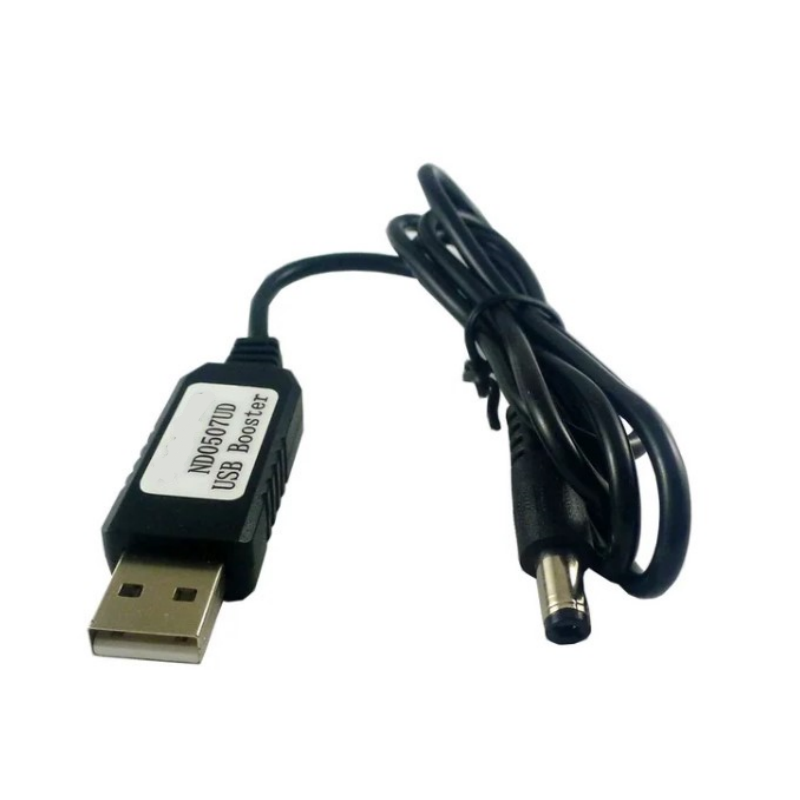

5V to 9V/12V USB A to DC 5.5*2.1mm Boost DC-DC Conerter Voltage Step-up Cable for Wifi Router Mobile Power
Description :
Input Voltage : DC 5V (4.5-5.5V) Output Voltage : DC 9V/12V No-load power consumption : <3mW Maximum load : 7W(IN DC 5V/2A) Operating Temperature : -40~85 Celsius Input Interface : USB Male A Output Interface: DC 5.5*2.5(2.1)mm Full length : 0.8~1Meter Weight : about 25g
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself
Typical application:
Thermostatic Controls Industrial Systems Consumer Products WIFI Router Smart home, Home automation for MEGA2560 Power
