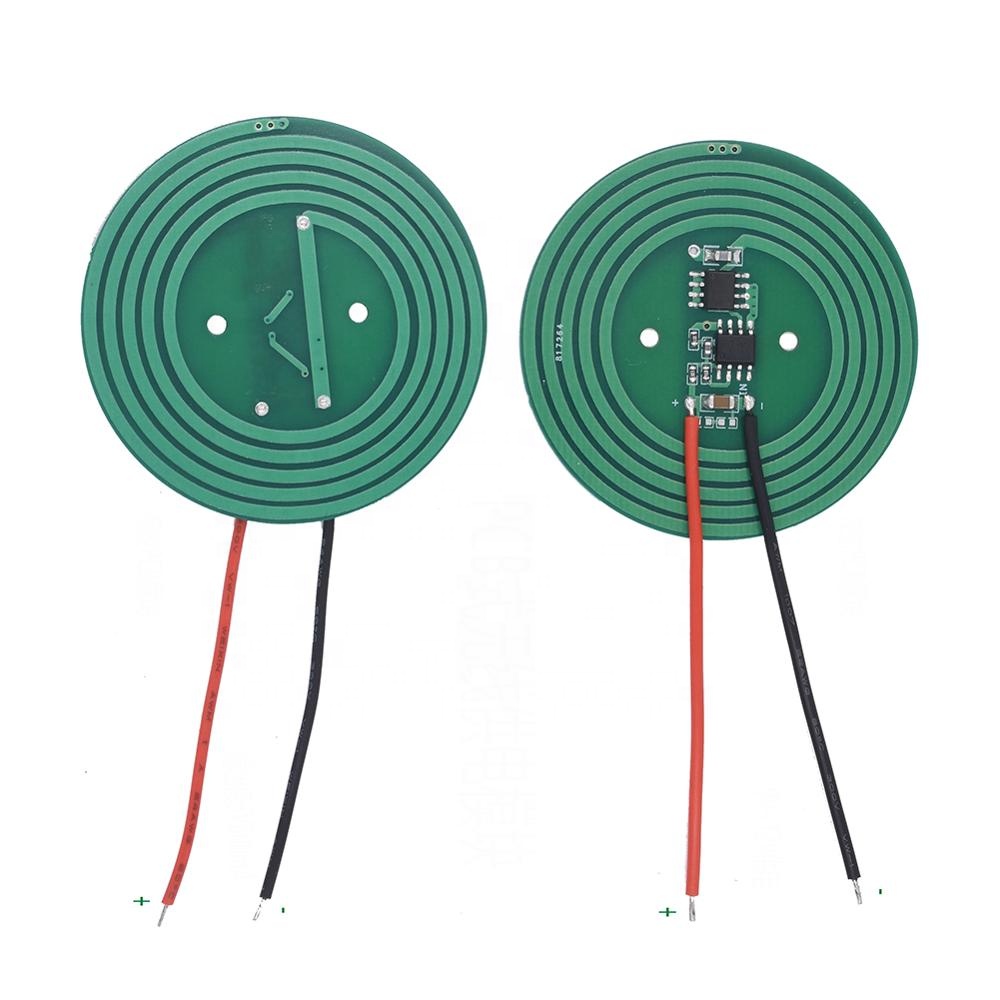

5V800mA 5-23mm Long Inductive Charging Distance High Current Wireless Charging XKT412-48 Wireless Charger Receiver PCB
XKT412-48
Easy installation and simple elimination of coils and production processes are more stable and reliable
Input voltage | 9~12v |
Launch PCB module size | outer diameter 50mm * PCB thickness 0.8mm |
Receive PCB module size | outer diameter 50mm * PCB thickness 0.8mm |
Receive maximum current | 5V800mA receiving output |
Use distance | 5mm~23mm |
Receive PCB and transmit PCB distance and output voltage and current relationship
5mm receiving output 5V800mA
6mm receiving output 5V800mA
7mm receiving output 5V700mA
8mm receiving output 5V700mA
Receive output 5V600mA at 9mm
10mm receiving output 5V500mA
11mm receiving output 5V500mA
Receive output 5V400mA at 12mm
Receive output 5V350mA at 13mm
Receive output 5V300mA at 14mm
15mm receiving output 5V250mA
16mm receiving output 5V200mA
Receive output 5V200mA at 17mm
Receive output 5V150mA at 18mm
Receive output 5V150mA at 19mm
20mm receiving output 5V120mA
Receive output 5V100mA at 21mm
When receiving 22mm, receive output 5V100mA
Receive output 5V100mA at 23mm
Note: The use distance must be greater than 5mm! It is easy to get close to overpressure! If the distance is close, please choose the same type of XKT412-49 module.
