Description

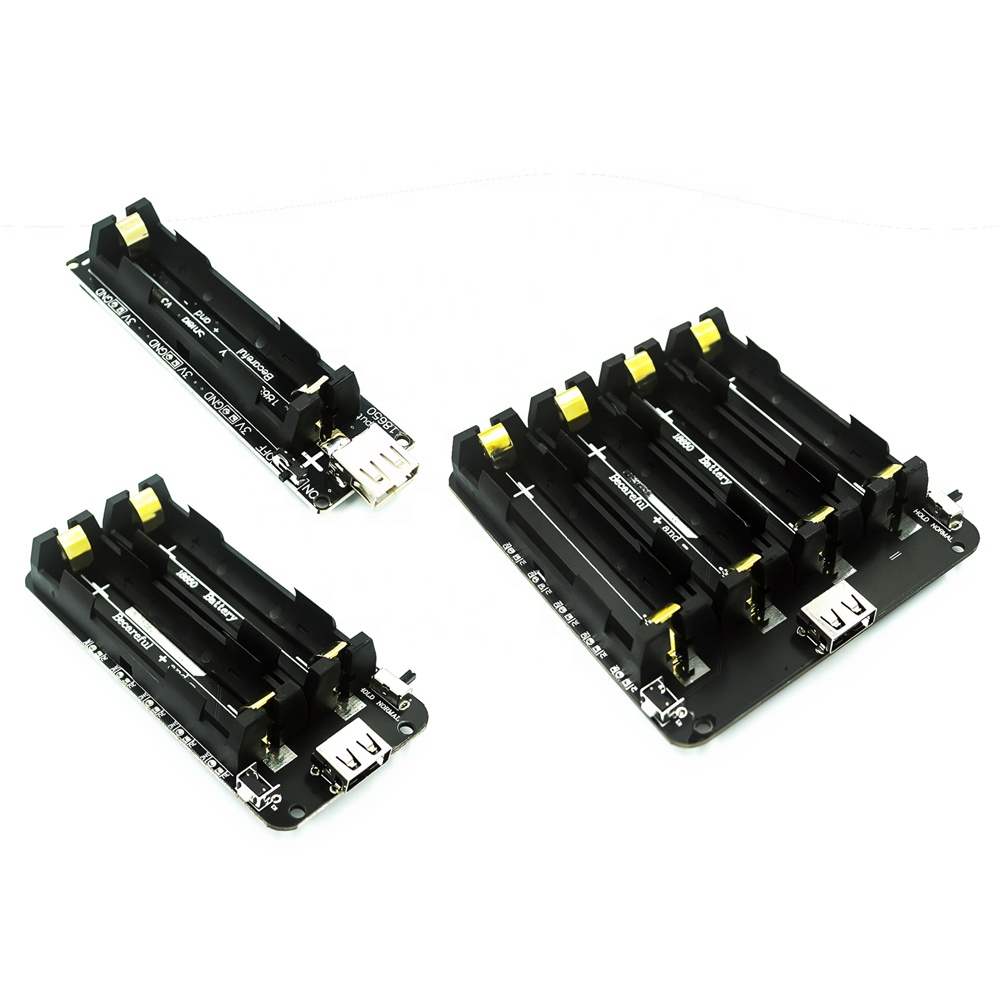

5V/3A 3V/1A 1/2/4 Way 18650 Lithium Battery Shield V8 ESP32 Battery Holder Expansion Board ESP32 Battery Shield
Product Description
Battery protection(Over charge or Over discharge) Micro USB port Input Type-A USB Output 0.5A current charging 1 switch control USB output 5~8V Input Voltage 3V & 1A Output 5V & 2A Output LED indicate (Green means full, Red means charging) 3V output port x3 5V output port x3 Be careful of "+" and "-", You should follow the direction of "+""-" on the PCB. If you put wrong direction, the charging chip will be destroyed. This product does not include 18650 battery
Specification
|
item
|
value
|
|
Application
|
ESP32 ESP8266
|
|
Supports
|
3V 1A/2.2A
|
|
Inteface
|
Micro usb/type A usb
|
|
Charging current
|
0.5A
|
|
Input voltage
|
5 to 8V
|
|
Led indicator
|
Green-full, Red-charging
|
