Description
5V 2A Charge Discharge Module Lithium Battery Charger Protection Board 3.7 4.2V 18650 Charge and Discharge Boost Power
Product Description
4 in 1 charge/Discharger(boost)/battery protection/Battery level indicator modules

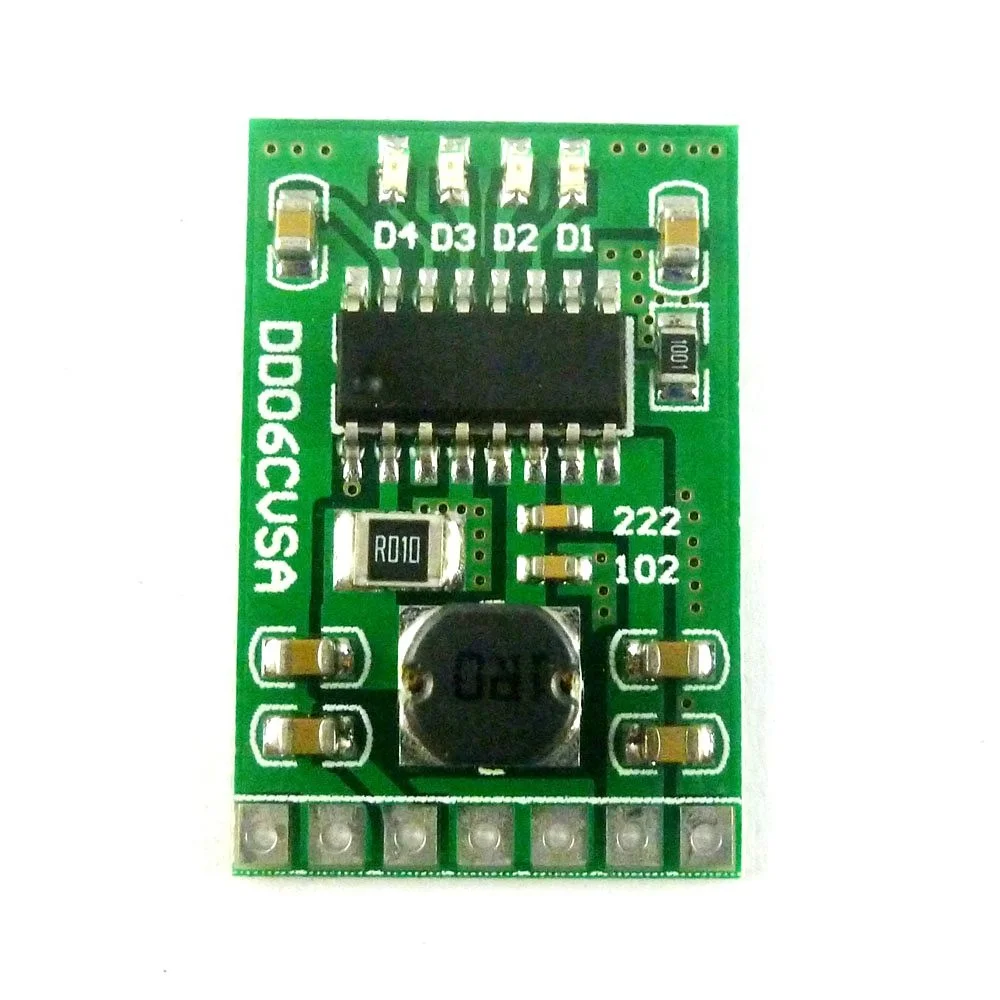

DD06CVSA is a multifunctional 3.7V/4.2V mobile power module,4 in 1 Function: charge, discharge, and battery protection.
It is very suitable for DIY mobile power.
Charge voltage : DC 4.5V-5.5V(Recommend DC 5V)
Charging current : 0-2.1A
Charge quiescent current : 100uA
Full charge voltage : 4.2V+-1%.
Discharge current : 0-3.5A;
Discharge quiescent current : 50uA
Discharge conversion efficiency : maximum 96%
Output voltage : 5V
Output current : 0-2.1A;
Operating ambient temperature : -20° to +85°
Size : 26.7 x 18.1 x 5.7mm
Weight: 1.9g
Comes with battery protection, do not need battery protection board
(if your battery comes with a protective board, it does not matter)
Overcurrent protection(OCP)
Overvoltage protection(OVP)
Short circuit protection(SCP)
Over-temperature protection(OTP)
DD06CVSA is a multifunctional 3.7V/4.2V mobile power module,4 in 1 Function: charge, discharge, and battery protection.
It is very suitable for DIY mobile power.
Charge voltage : DC 4.5V-5.5V(Recommend DC 5V)
Charging current : 0-2.1A
Charge quiescent current : 100uA
Full charge voltage : 4.2V+-1%.
Discharge current : 0-3.5A;
Discharge quiescent current : 50uA
Discharge conversion efficiency : maximum 96%
Output voltage : 5V
Output current : 0-2.1A;
Operating ambient temperature : -20° to +85°
Size : 26.7 x 18.1 x 5.7mm
Weight: 1.9g
Comes with battery protection, do not need battery protection board
(if your battery comes with a protective board, it does not matter)
Overcurrent protection(OCP)
Overvoltage protection(OVP)
Short circuit protection(SCP)
Over-temperature protection(OTP)
|
Pin description:
|
||
|
1
|
VIN: Charging port +
|
|
|
2
|
GND: Charging port -
|
|
|
3
|
BAT: Battery port +
|
|
|
4
|
GND: Battery port -
|
|
|
5
|
GND: Output port -
|
|
|
6
|
VOUT: Output port +
|
|
|
7
|
KEY: Output trigger port (Low pulse trigger)
|
|
1. In discharge mode (In the charging mode, the KEY function is invalid), the KEY Trigger once, turns on the output; Continuous trigger twice: turn off the output.
2. When the load access, it will automatically turn on the output.
But if the load is less than 50MA, the output will be turned off after 30 seconds
2. When the load access, it will automatically turn on the output.
But if the load is less than 50MA, the output will be turned off after 30 seconds
NOTE
If the output load current is less than 50MA, turn off the output after 30 seconds.
If the output load current is greater than 50MA, continuous turn on the output
This module is not suitable for uninterruptible power supply(ups).
If the output load current is greater than 50MA, continuous turn on the output
This module is not suitable for uninterruptible power supply(ups).
Applications
Battery-powered equipment
Lithium Battery 18650 14500
Mobile phone DIY
UPS power supply equipment DIY
Solar charging
MP3/MP4 player
Audio equipment
Video equipment
Portable Devices
Ble Wifi Applications
MCU development board
Lithium Battery 18650 14500
Mobile phone DIY
UPS power supply equipment DIY
Solar charging
MP3/MP4 player
Audio equipment
Video equipment
Portable Devices
Ble Wifi Applications
MCU development board
Details Images
