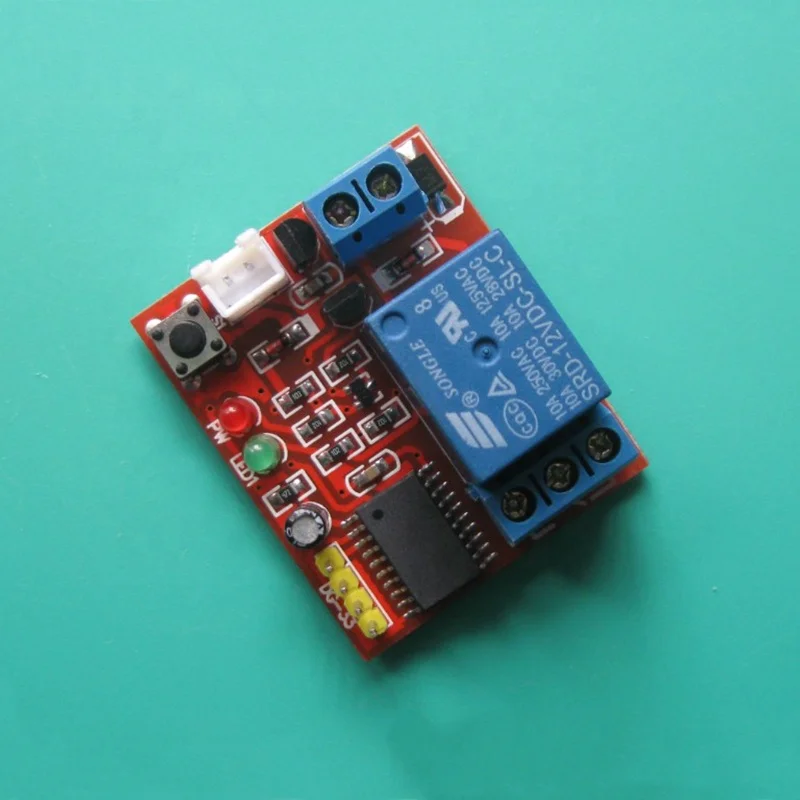

5V 12V One Push Button Start Stop Relay High/Low Level Trigger Bistable Bistable Contactor Switch Self Latching Relay
Product Description
Note
We have 5 /12V high level trigger relay, and 5 / 12V Low level trigger relay. Please note the voltage and trigger methods before order. Otherwise we default sent at random.
Relay output contacts adopt double-sided wiring, which can withstand large currents and is safer
Features
1. Adopt double-sided PCB design, 4 independent self-locking design, no mutual interference; 2. Using stable and reliable chip for control, stable and reliable performance, strong anti-interference, no false trigger, performance is far superior than CD4013; 3. The voltage regulator tube with high power provides sufficient and stable voltage, and there are enough heat dissipation holes to ensure that the product works stably and reliably for a long time; 4. It has a protection diode to prevent the power supply from being reversed, and there is no damage to the product if the power supply is reversed for a short time; 5. Use genuine Songle relays to control the load, which can bear the load under 250V 10A (AC) and 30V 10A (DC); 6. The trigger can also be connected with an external trigger switch, and the product is equipped with wiring sockets and leads, which is more convenient to use; 7. The trigger can also be triggered by other sensor modules, as long as it is a 5V or 12V high level trigger, it is valid, and the function has more extensions;
Product Usage:
Short-circuit both ends of the white socket on the board to lock the corresponding relay, and then short-circuit the two ends of the white socket on the board, the relay will be disconnected, or an external trigger switch can be connected to high level trigger. Household appliances control, various household lamps control, factory equipment control, used for the control of various low-current control high-voltage high-power products.
Specification
|
item
|
value
|
|
Supply voltage
|
12V (DC) Supply current: greater than 800mA
|
|
Load
|
250V 10A (AC) or 30V 10A (DC)
|
|
Life
|
1 million times
|
Installation Instructions
Product instructions
1. The power supply must meet the scope of use, DC 12V; 2. According to the requirements of the wiring diagram, the power supply cannot be connected reversely. Although there is a protection circuit, it cannot be connected reversely for a long time; 3. It is a normal phenomenon that the product uses a voltage regulator tube to generate a slight heat, and it is a normal phenomenon that the relay has a normal heat when it works for a long time; 4. The load power should leave a certain margin for the relay load, and high-power (about 2000W) and long-time working environments should be avoided, which will have a certain impact on the product life.
