Description

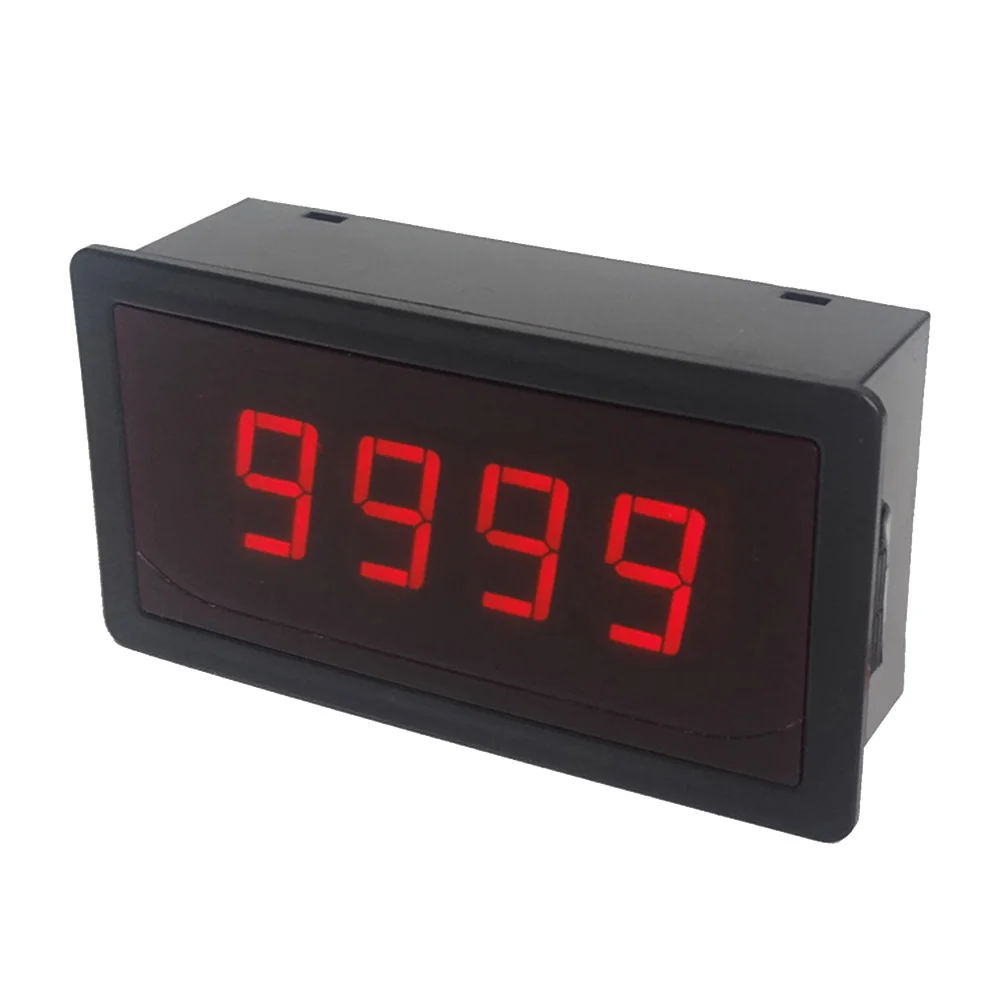

5V 12V 24V PT100 K Type Digital Thermometers Display Temperature Meter Digital Temperature Display With Probe
Product Description
PT100 DC5V power supply PT100 DC12V power supply PT100 DC24V power supply PT100 220V power supply K type DC5V power supply K type DC12V power supply K type DC24V power supply K type 220 power supply blue display
Specification
|
item
|
value
|
|
Input signal
|
Thermocouple/PT100/resistance/mA/V
|
|
Measurement method
|
16-bit AD conversion, 5 times/second
|
|
Measurement accuracy
|
0.2%/0.5%F.S
|
|
Display range
|
-1999~9999 (0~3 decimal places)
|
|
Display mode
|
4-digit 0.56" LED digital tube, red/blue
|
|
Working power
|
DC5V/12V/24V (isolated/non-isolated)/AC220V (isolated)
|
|
Working Environment
|
Temperature -10~50℃, Humidity 0~85%RH
|
Temperature sensor types
|
Number
|
Temperature sensor
|
Display range
|
Accuracy
|
|
00
|
T type
|
-200 to 400C
|
0.5%
|
|
01
|
R type
|
-50 to 1600C
|
0.5%
|
|
02
|
J type
|
-200 to 1200c
|
0.5%
|
|
03
|
Wre325
|
0 to 2300c
|
0.5%
|
|
04
|
B type
|
350 to 1800c
|
0.5%
|
|
05
|
S type
|
-50 to 1600c
|
0.5%
|
|
06
|
K type
|
-200 to 1300c
|
0.5%
|
|
07
|
E type
|
-200 to 900c
|
0.5%
|
|
08
|
PT100/PT1000
|
-199.9 to 600c
|
0.2%
|
|
09
|
CU50
|
-50 to 150c
|
0.2%
|
Application
Temperature display for freezers, freezers, drying boxes, storage tanks, etc. Granary, telecommunication room, power room, monitoring room temperature display, processing equipment, testing equipment, aging equipment, production machinery temperature display
