Description

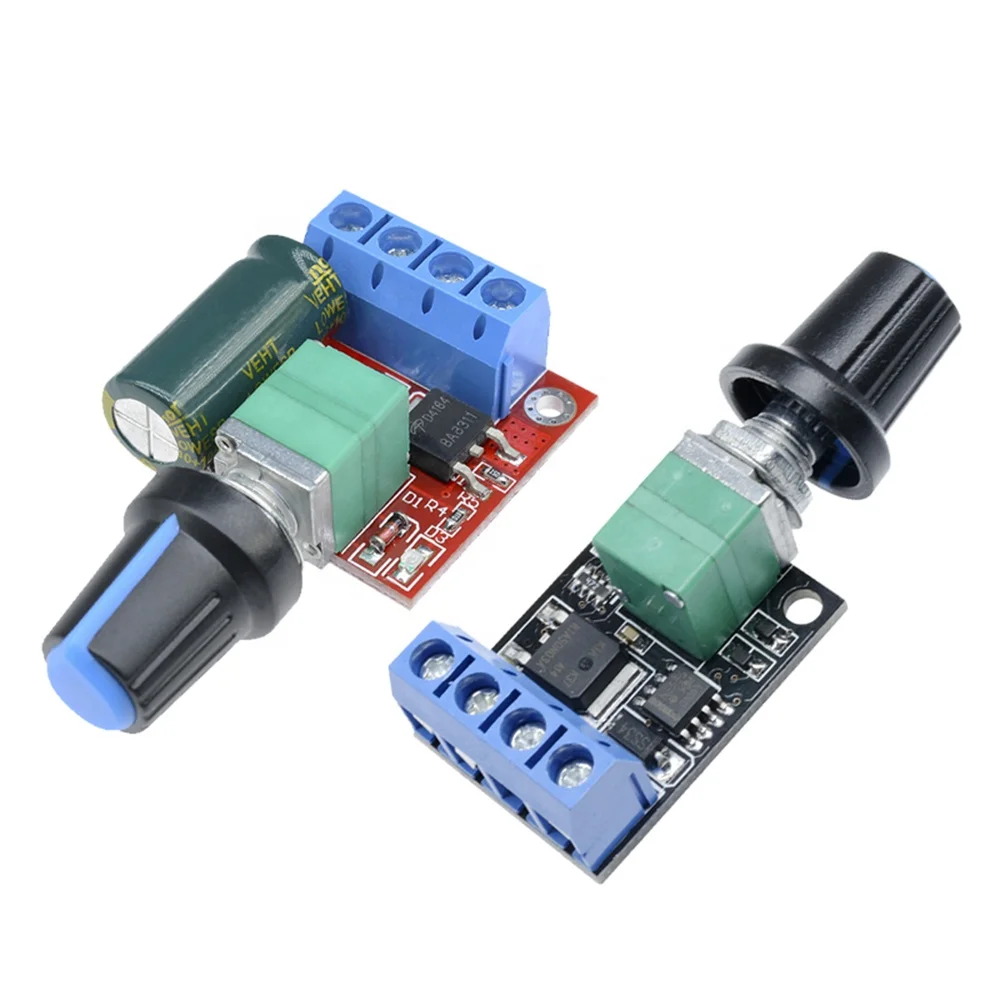

5V 12V 24V 2A/5A/10A Voltage Regulator Mini DC Motor PWM Governor Module Speed Control Switch Small PWM Dimmer Board
Specification
|
item
|
value
|
|
Voltage
|
DC 3 to 35V
|
|
Working current
|
2A/5A/10A optional
|
|
Power
|
Max 90W
|
|
PWM frequency
|
10Khz/20Khz
|
Product Description
PWM DC motor governor 5V-35V speed control switch 5A switch function LED dimmer speed control
1. Working voltage: DC4.5V-35V 2. Output current: 0-5A 3. Output power: 90W (maximum) 4. Quiescent current: 7u A (standby state) 5. PWM duty cycle: 1%-100% 6. PWM frequency: 20khz 7. Size: length 30MM x width 26MM (without handle) x height 14MM 8. Weight: 0.013KG Precautions: 1. The input of the DC motor governor is direct current, and cannot be directly connected to alternating current (for example: household 220V alternating current), otherwise it will burn out! ! ! 2. Do not reversely connect the positive and negative terminals of the DC power supply, otherwise the governor may be damaged. 3. The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence. 4. Adjusting the potentiometer knob can change the output duty ratio of the governor and the motor speed.
PWM DC motor speed controller 3-35V DC motor speed regulation 2A switch function
1. Working voltage: DC3-35V (voltage gear selection 3-15V or 5-35V) Working current: 2A (peak value 2.5A) 2. Rated power: 90W (peak) 3. Quiescent current: 0.015A (standby state) PWM duty cycle: 1%—100% 4. PWM frequency: 10KHz 5. Product size: length 30mm × width 24mm (without handle) × height 15mm
PWM DC motor governor 5V-16V12V speed control switch 10A switch function LED dimming speed control module
1. Maximum voltage: 16V Minimum voltage: 5V Continuous current: 10A 2. Short-circuit current limit: 2OA (less than 10 seconds) 3. Speed control mode: PWM stepless speed regulation, can also be used to adjust the light control mode: speed control potentiometer (turn on clockwise, continue from 4.1% to 99% speed clockwise rotation) 5. Duty cycle: 0%-99% (the 0% position is the state where the leftmost potentiometer is turned off) when the current is turned on, 0.002A (the governor does not need to be turned off for a long time, there will be no current). 6. Efficiency: The efficiency is as high as 98%. 7. Volume: length 30mm (without potentiometer), width 21mm, height 14mm 8. Weight: 10g
