5V 12V 24V 10A Forward Reverse PWM Electronic Speed Controller DC Servo Motor Driver H-Bridge Motor Drive Controller--shop.rfid-life.com

Motor Drive Controller

$21.10
Quantity

Description

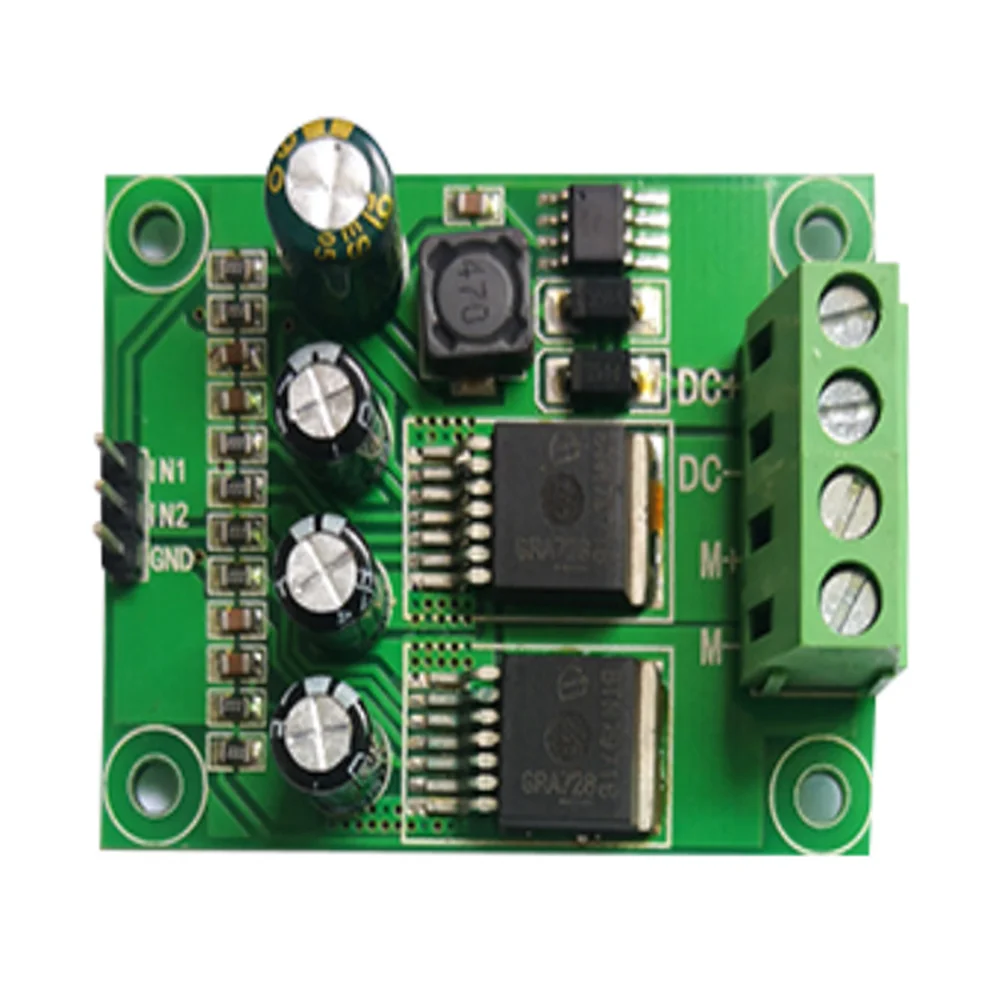

5V 12V 24V 10A Forward Reverse PWM Electronic Speed Controller DC Servo Motor Driver H-Bridge Motor Drive Controller
Product Description
Driver chip: BTN7971 Can control brushed motors within 5-24V DC 10A Signal supports 3.3-5VPWM or high and low level input Speed regulation: the greater the duty, the greater the speed
Signal type The control signal uses the sink current drive method, which supports the direct drive of most single-chip microcomputers
Specification
item
value
Size
57.7mm*40.13mm
Input voltage
DC5V-24V
Driver chip
BTN7971
Control output voltage
10A
Control signal voltage
3.3V/5V
PWM frequency
10Khz
