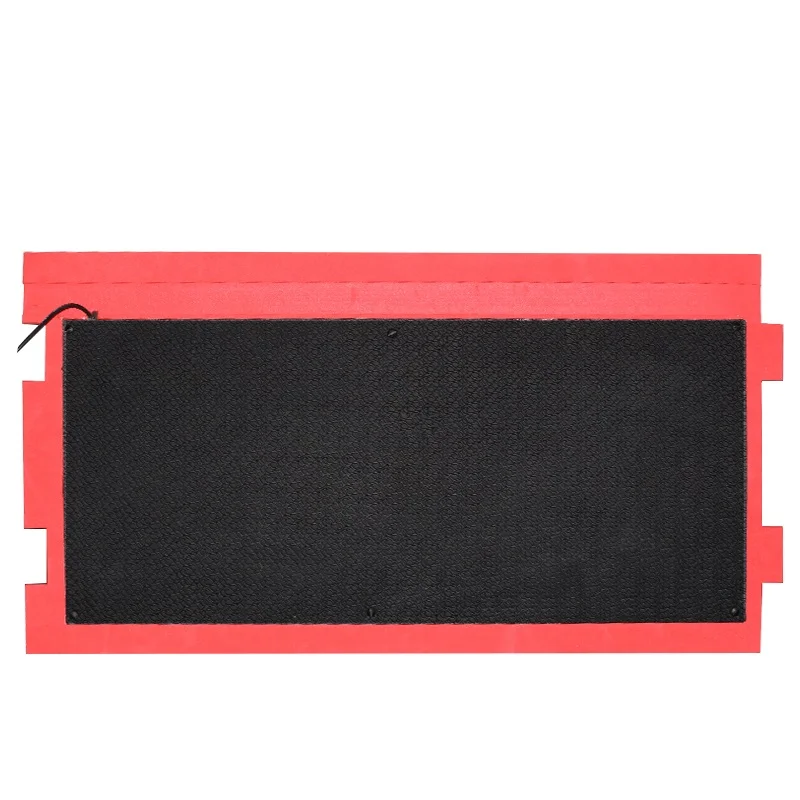

5Dbi 3 Meter 865868Mhz Uhf Rfid Tag Reader Race Timing System Mat Antenna
What is the overview of 5Dbi 3 Meter 865868Mhz Uhf Rfid Tag Reader Race Timing System Mat Antenna?
It is a compact floor mat UHF antenna. It can be widely integrated in many RFID terminal systems such as Runway Identification System, Marathon start and end recognition, Asset Management, Intelligent
management of access control, Customs access for person, Warehouse management, etc.
What is the technical specification of 5Dbi 3 Meter 865868Mhz Uhf Rfid Tag Reader Race Timing System Mat Antenna?
2. Environmental adaptability;
3. Waterproof and sunscreen design;
4. Good load-bearing outdoor all-day work;
5. High gain;
6. Large near field angle;
7. No miss reading and reading fast;
8. easy installation.
What is the technical specification of 5Dbi 3 Meter 865868Mhz Uhf Rfid Tag Reader Race Timing System Mat Antenna?
|
5Dbi 3 Meter 865868Mhz Uhf Rfid Tag Reader Race Timing System Mat Antenna |
|
| Electrical Specifications | |
| Frequency Range | 840/960 MHz at option |
| Bandwidth | 20 MHz |
| Gain | 13dBi |
| VSWR |
<1.1 |
| Horizontal Beam Width |
Hor:75° Vert:21° |
| F/B Ratio |
>24 |
| Impedance | 50Ω |
| Polarization | Linear Polarization |
| Max. Power | 200W |
| Connector | N-Female |
| Lightning Protection | DC ground |
| Mechanical Specifications | |
| Dimension |
1200*500*25mm |
| Weight | 8kg |
| Reflector Material | Aluminum alloy |
| Shell Material | EVA |
| Connection Method | Carpet connection |
| Working Environment | |
| Operating Temperature | -40~80°C |
| Waterproof | IP67 |
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. We have super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
