3V :Input voltage 4.5~28V,output 3V
3.3V :Input voltage 4.5~28V,output 3.3V
4V :Input voltage 4.8~28V,output 4V
5V :Input voltage 6~28V,output 5V
6V :Input voltage 7~28V,output 6V
9V :Input voltage 10~28V,output 9V
10V :Input voltage 11~28V,output 10V
12V :Input voltage 13~28V,output 12V
Maximum output current 4A,Short time maximum output current 5A
(With good heat dissipation)

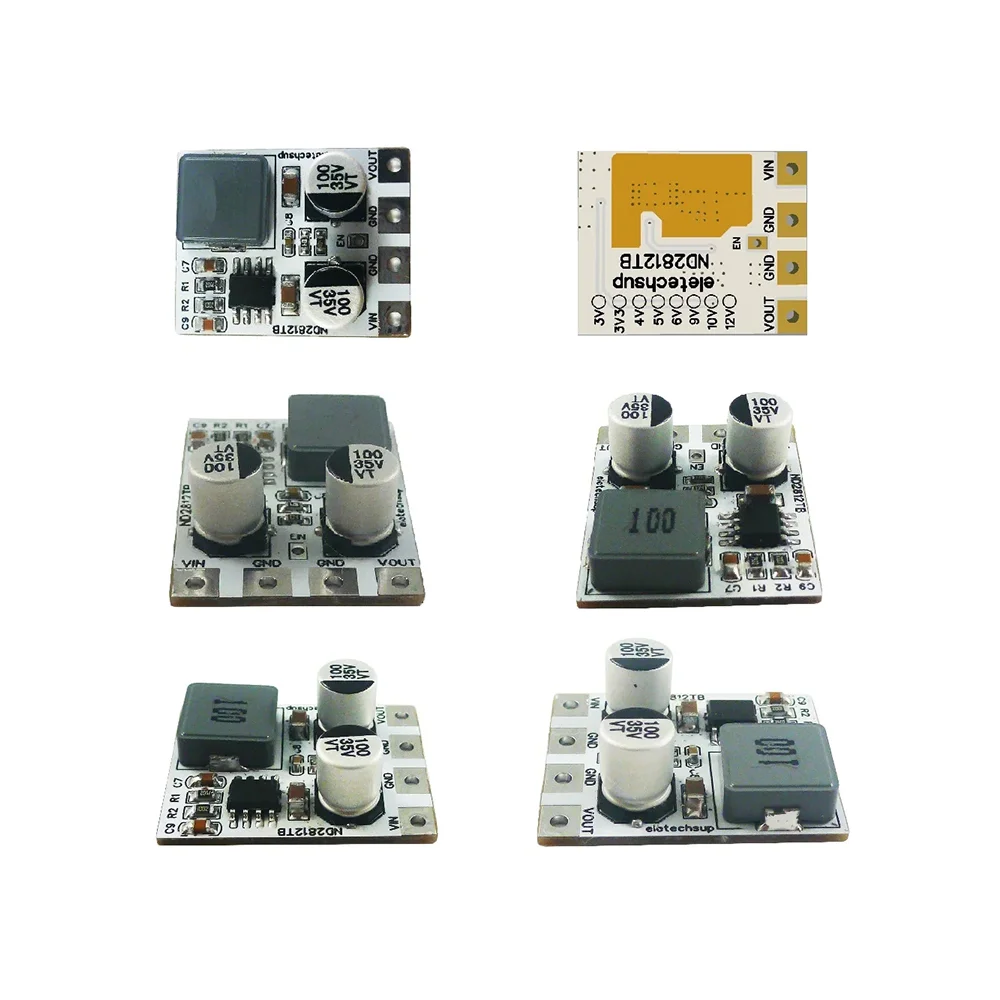

DC-DC Step-Down Converter module working frequency 500KHz. efficiency is 81-94% .
Quiescent current: 300-400uA
Operating Temperature :–40°C to +105°C
Size : 27.5 x 22 x 9mm
Weight : 5g
Features :
Instant PWM architecture to achieve fast transient responses
4A continuous, 5A peak load current capability
Under-voltage protection (UVP)
External softstart limits
Over-Current Protection (OCP)
Output short circuit p otection with current fold back
Over-Temperature Shutdown
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Applications:
DC motor power supply
WIFI Router Ethernet Switch
Network Equipment
Multimeter instrumentation
PTZ CCTV Camera
Electric toys
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
Battery powered equipment
Audio amplifier
