Description

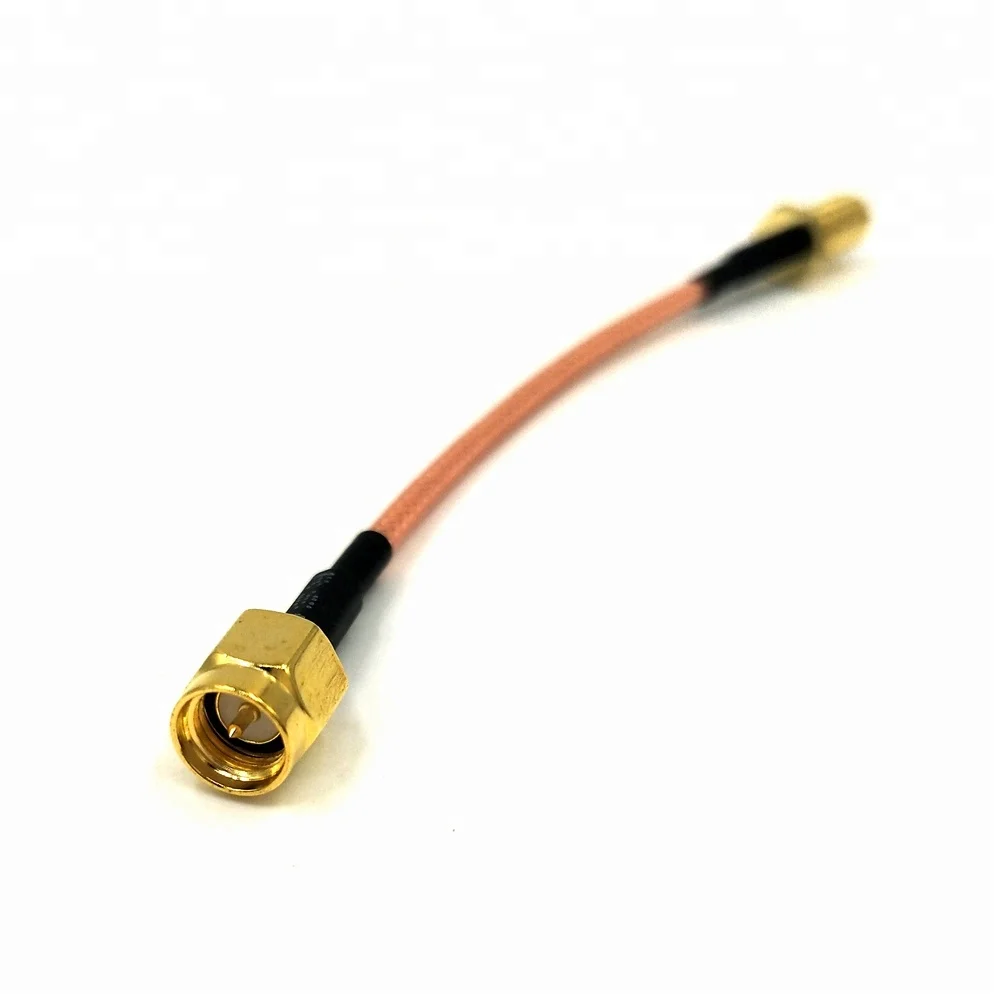

50ohm RG316 SMA male to SSMC female RF extension cable
Product Description
Type BNC is one of RF coaxial connectors using a bayonet type coupling mechanism, characteristic impedance has two types: 50ohm and 75ohm. They can be quick connect/disconnect, reliable lock etc. they are widely used in connection with the RF coaxial cables in computer filed, network of wireless, medical equipment and electronic instrument.
| Material | Shell | Brass, gold/nickel plated |
| male center contact | Brass,gold plated | |
| female center contacts | Gold plated, beryllium copper | |
| Insulators | PTFE | |
| Gaskets | Silicone Rubber | |
| Crimp Ferrules | Copper Alloy,Nickel Plated | |
| Electrical | Characteristic impedance | 50Ω, 75ohm |
| Frequency range | DC-4GHz | |
| Dielectric withstand voltage | 1500V RMS at sea level | |
| Insulation resistance | ≥ 5000MΩ | |
| Contact resistance | Center contact ≤ 1.5MΩ | |
| Outer contact ≤ 1.0MΩ | ||
| Durability | Mating Cycles ≥ 500 | |
| Operating Temperature | -55 to +155 Deg C |
Packaging & Shipping
Packaging Details: 50ohm RG316 SMA male to SSMC female RF extension cable will be packed in one small bag and then put in one box.If you need custom package, we will do as your requirest.
Delivery Detail: About 7 workdays after payments.
