Description

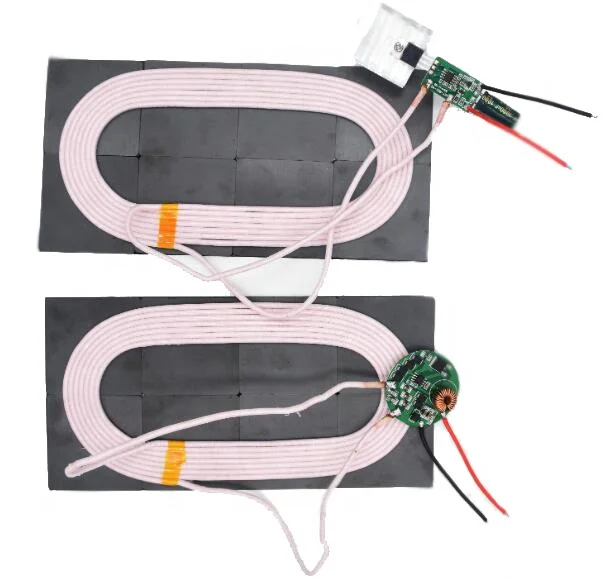

50mm Long Distance 12V1.8A 20W High Power Wireless Power Receiver XKT801-52 Cordless Power Charger with Magnetic board
Product Description
80mm DC remote module, added anti-back metal separator, designed with XKT-801 chip, simple and practical circuit
Specification
item
value
Transmission voltage
wide voltage 24V
Transmitter module size
17*28mm
Transmitting coil
200mm long and 100mm long
Receiver module size
diameter 40mm
Receiver coil size
200mm long and 100mm long
Installation Instructions
Sensing distance
Receive output 12V1.8A at 40mm Receive output 12V1.5A at 50mm Receive output 12V800mA at 60mm Receive output 12V400mA at 70mm Receive output 12V300mA at 80mm Note: The distance between the transceiver coil must be greater than 40mm and the proximity will be bad! ! !
