50kg Human Scale load cell weight sensors
1/6

50kg Human Scale load cell weight sensors--shop.rfid-life.com

sensor module

$0.54
Quantity
Wholesale Inquiry

Email: sale1@rfid-life.com

Whatsapp: +86 18205991243

Description

Product Description

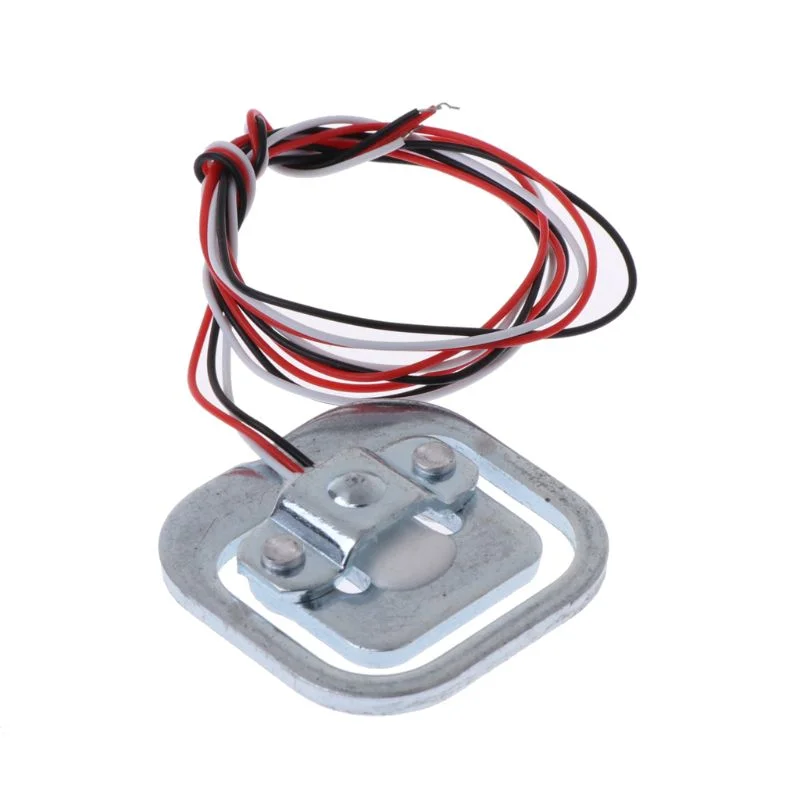

50kg Human Scale load cell weight sensors

Description
Material: Alloy Steel
Range: 50KG
Rated output: 1.0 ¡Â0.1mV / V
Nonlinear: 0.08% F.S
Hysteresis: 0.1% F.S
Repeatability: 0.05% F.S
Creep (5 minutes): 0.05% F.S
Temperature Effect on Output: 0.02% F.S / ¡ã C
Temperature Effect on Zero: 0.02% F.S / ¡ã C
Zero Balance: ¡Â0.1000 mV / V
Input impedance: 1000 ¡Â20% Ohm
Output impedance: 1000 ¡Â20% Ohm
Insulation resistance: 2000 MOhm
Safety Overload: 120% F.S
Ultimate Overload: 150% F.S
Operating temperature range: -20 ~ 65 ¡ã C
Recommended Operating Voltage: 5 VDC
Maximum operating voltage: 8VDC
Protection: IP65
Wiring: red, black, white
Size:28 x 28mm/1.1 x 1.1""(L x W)
Weight:49g
Feature:
Widely used in hopper scales, platform scales, platform balance, belt scales and other electronic weighing devices.
This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends signal via the red signal wire.
Alloy Steel wired weighing load cell,high accuracy,simple structure,simple installation.
You can use multiple load sensors simultaneously to increase the capacity range,Parallel use to add additional capacity.
