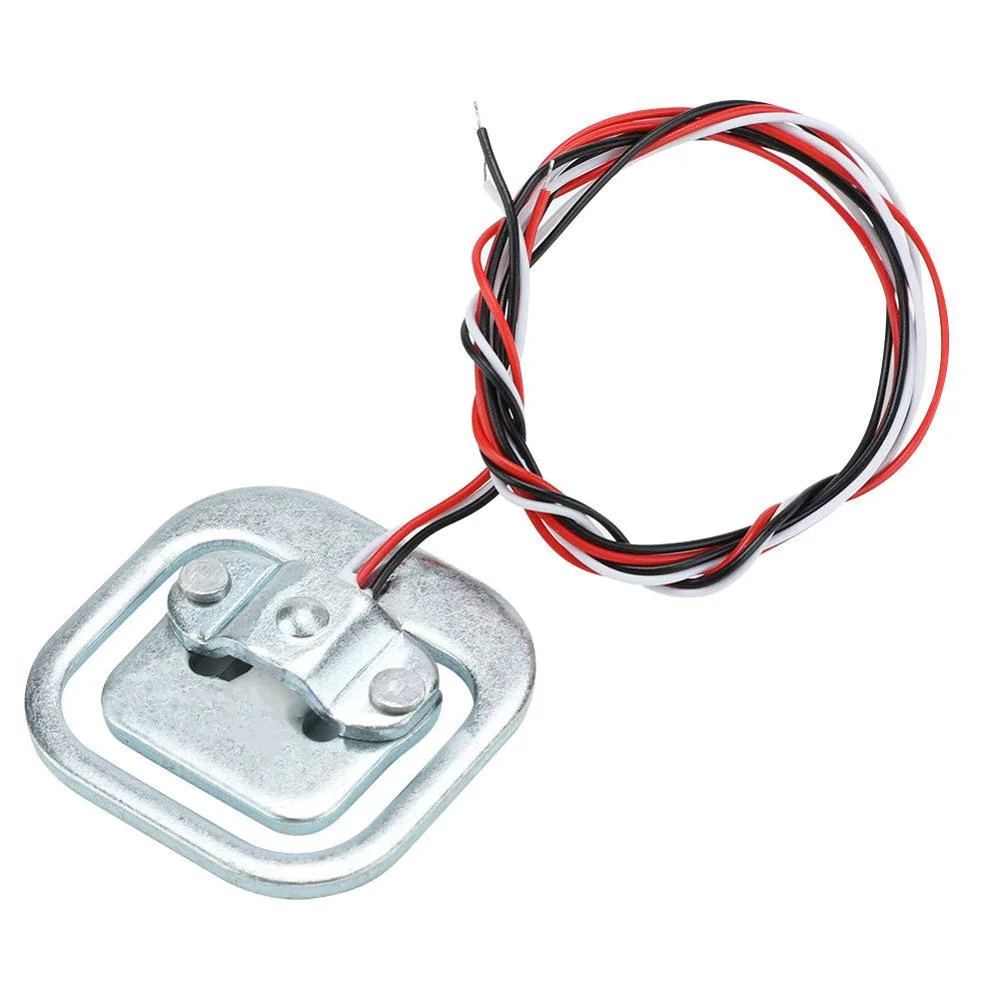

50kg Body Scale Sensor Strain Of Half-bridge Human Scale Load Cell Weighing Sensor
Description Material: Alloy Steel Range: 50KG Rated output: 1.0 ¡Â0.1mV / V Nonlinear: 0.08% F.S Hysteresis: 0.1% F.S Repeatability: 0.05% F.S Creep (5 minutes): 0.05% F.S Temperature Effect on Output: 0.02% F.S / ¡ã C Temperature Effect on Zero: 0.02% F.S / ¡ã C Zero Balance: ¡Â0.1000 mV / V Input impedance: 1000 ¡Â20% Ohm Output impedance: 1000 ¡Â20% Ohm Insulation resistance: 2000 MOhm Safety Overload: 120% F.S Ultimate Overload: 150% F.S Operating temperature range: -20 ~ 65 ¡ã C Recommended Operating Voltage: 5 VDC Maximum operating voltage: 8VDC Protection: IP65 Wiring: red, black, white Size:28 x 28mm/1.1 x 1.1""(L x W) Weight:49g
Feature: Widely used in hopper scales, platform scales, platform balance, belt scales and other electronic weighing devices. This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends signal via the red signal wire. Alloy Steel wired weighing load cell,high accuracy,simple structure,simple installation. You can use multiple load sensors simultaneously to increase the capacity range,Parallel use to add additional capacity.
