500W Pixel DVP MIPI Interface Serial Jpeg Camera Support STM32F429 Auto Focus Video Camera OV5640 Camera Module
OV5640 camera module, 500W pixels, support auto focus, resolution support 2592 * 1944, can be used on STM32F407, STM32F429, STM32F746, STM32F756, STM32F767 and other development boards.
Feature
Standard SCCB interface, compatible with lIC interface;
Uses 1.4um*1.4um pixel size and uses OmniBSI technology for higher performance (high sensitivity, low crosstalk and low noise);
Automatic image control functions: automatic exposure (AEC), automatic white balance (AWB), automatic elimination of light streaks, automatic black level calibration (ABLC) and automatic band pass filter (ABF);
Support image quality control: color saturation adjustment, tone adjustment, gamma calibration, sharpness and lens calibration;
Support RawRGB, RGB (RGB565/RGB555/RGB444), CCIR656, YUV (422/420), YCbCr (422) and compressed image (JPEG) output formats;
Support QSXGA (500W) image size output, and scale down to any other size;
Support for image scaling, panning, and window settings;
Support image compression, you can output JPEG image data;
Support digital video interface (DVP) and MIPI interface;
Support auto focus;
Comes with an embedded microprocessor;
Integrated active crystal oscillator without external clock supply;
Integrated LDO, only need to provide 3.3V power supply to work properly;

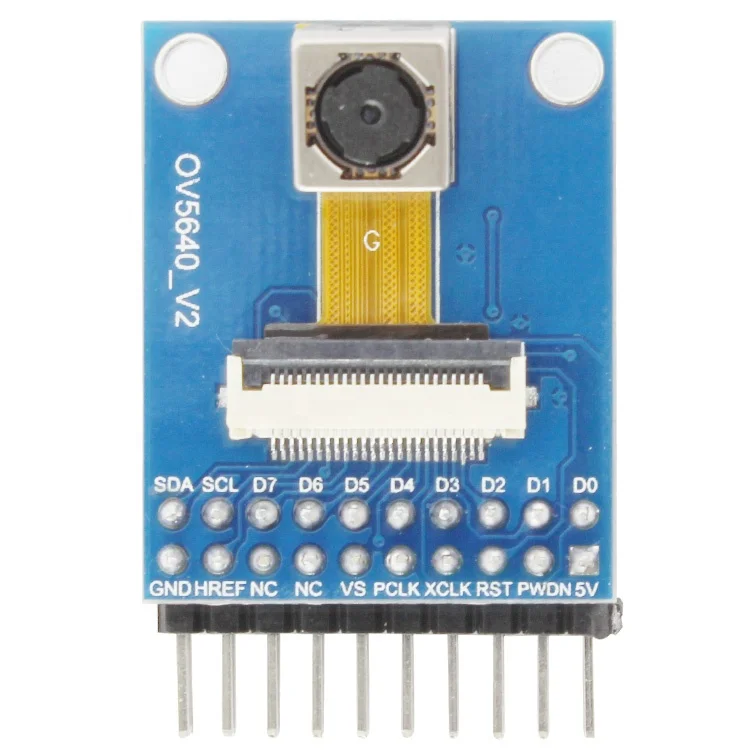

Interface Description
1,5V, power supply (3.3V-5V)
2,DO, data 0
3,PWDN, power-down mode enable
4,D1, data 1
5,RST, reset
6,D2, data 2
7,XCLK, system clock
8,D3,,Data 3
9,PCLK, pixel clock
10,D4, data 4
11,VSYNC, field signal
12,D5, data 5
13NC, no connection
14,D6, data 6
15,NC, no connection
16,D7, data 7
17,HREF, line signal
18,SIO_C, SCCB clock
19,GND, ground
20,SIO_D, SCCB data
