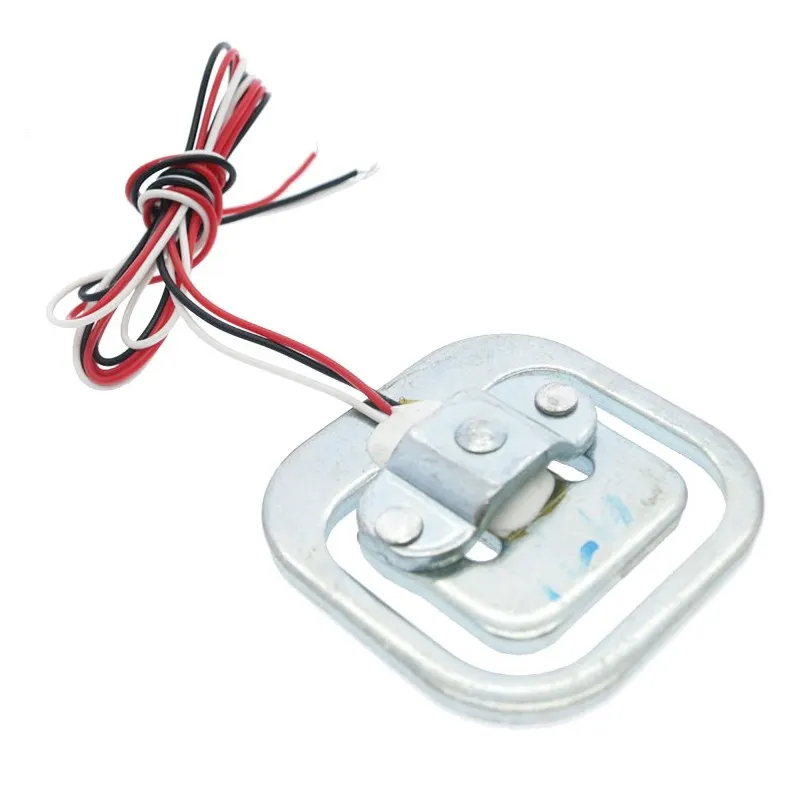

50 Kg Human Body Load Cell Weighing Electronic Scale Sensor Resistance Weight Sensor

Sensor Module
$0.54
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Product Description
50 Kg Human Body Load Cell Weighing Electronic Scale Sensor Resistance Weight Sensor

Description
Material: Alloy Steel
Range: 50KG
Rated output: 1.0 ¡Â0.1mV / V
Nonlinear: 0.08% F.S
Hysteresis: 0.1% F.S
Repeatability: 0.05% F.S
Creep (5 minutes): 0.05% F.S
Temperature Effect on Output: 0.02% F.S / ¡ã C
Temperature Effect on Zero: 0.02% F.S / ¡ã C
Zero Balance: ¡Â0.1000 mV / V
Input impedance: 1000 ¡Â20% Ohm
Output impedance: 1000 ¡Â20% Ohm
Insulation resistance: 2000 MOhm
Safety Overload: 120% F.S
Ultimate Overload: 150% F.S
Operating temperature range: -20 ~ 65 ¡ã C
Recommended Operating Voltage: 5 VDC
Maximum operating voltage: 8VDC
Protection: IP65
Wiring: red, black, white
Size:28 x 28mm/1.1 x 1.1""(L x W)
Weight:49g
Feature:
Widely used in hopper scales, platform scales, platform balance, belt scales and other electronic weighing devices.
This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends signal via the red signal wire.
Alloy Steel wired weighing load cell,high accuracy,simple structure,simple installation.
You can use multiple load sensors simultaneously to increase the capacity range,Parallel use to add additional capacity.
