Description
50-4000MHz Low Noise 0.6dB SPF-5189Z PA Driver Amplifier RF Signal Booster RX Amplifier for W-CDMA ISM WiMAX Receivers
Product Description
The RF amplifier must be connected to the load first, and then connected to the signal (power-on), otherwise it is easy to burn out.
Parameter
Name: Low Noise RF Amplifier 0.05~4GHz Power supply: 5V Size: 37mm X 33mm Current: 90mA NF: 0.6dB
Specification
|
Low noise amplifier RF amplifier test data
|
||||||||||||||||||
|
Fre(MHz)
|
50
|
100
|
500
|
800
|
1000
|
1500
|
2000
|
2400
|
2800
|
|||||||||
|
Gain(dB)
|
21.05
|
21.01
|
20.87
|
19.75
|
16.75
|
13.62
|
10.16
|
10.00
|
9.00
|
|||||||||

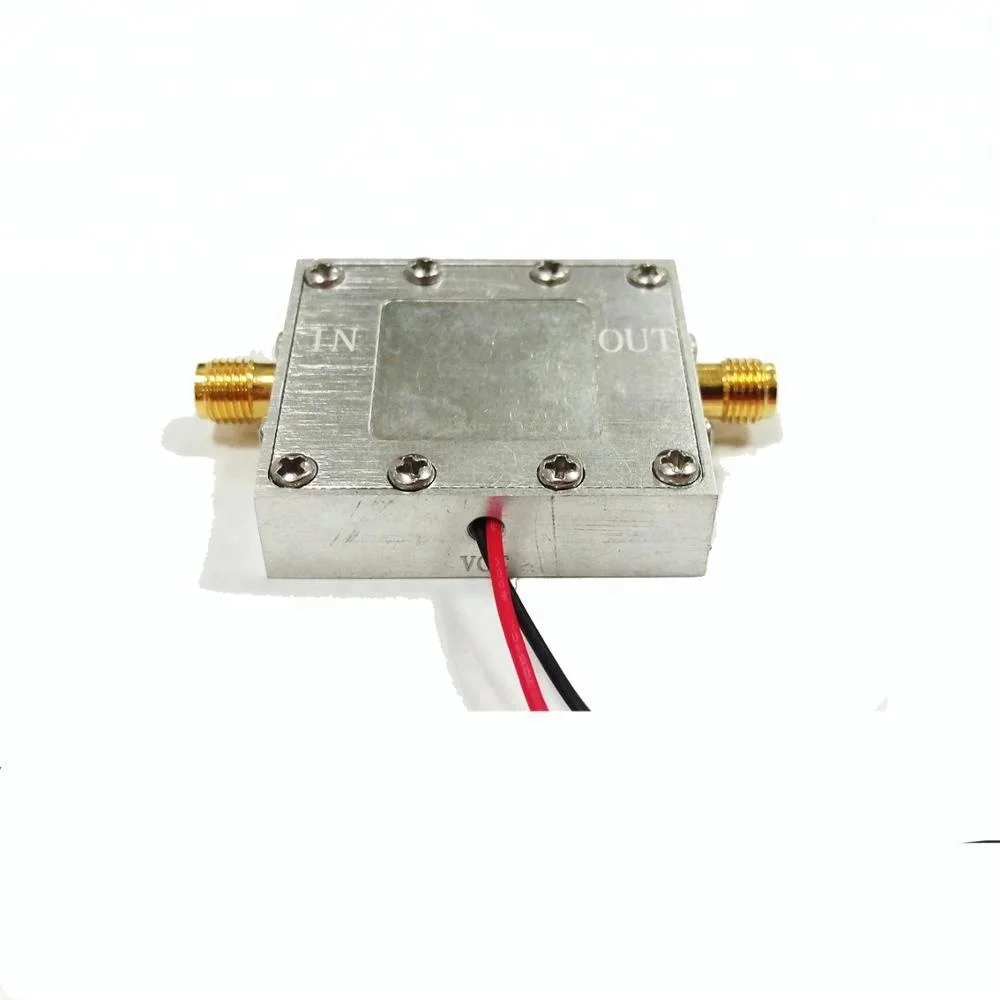

Details Images
