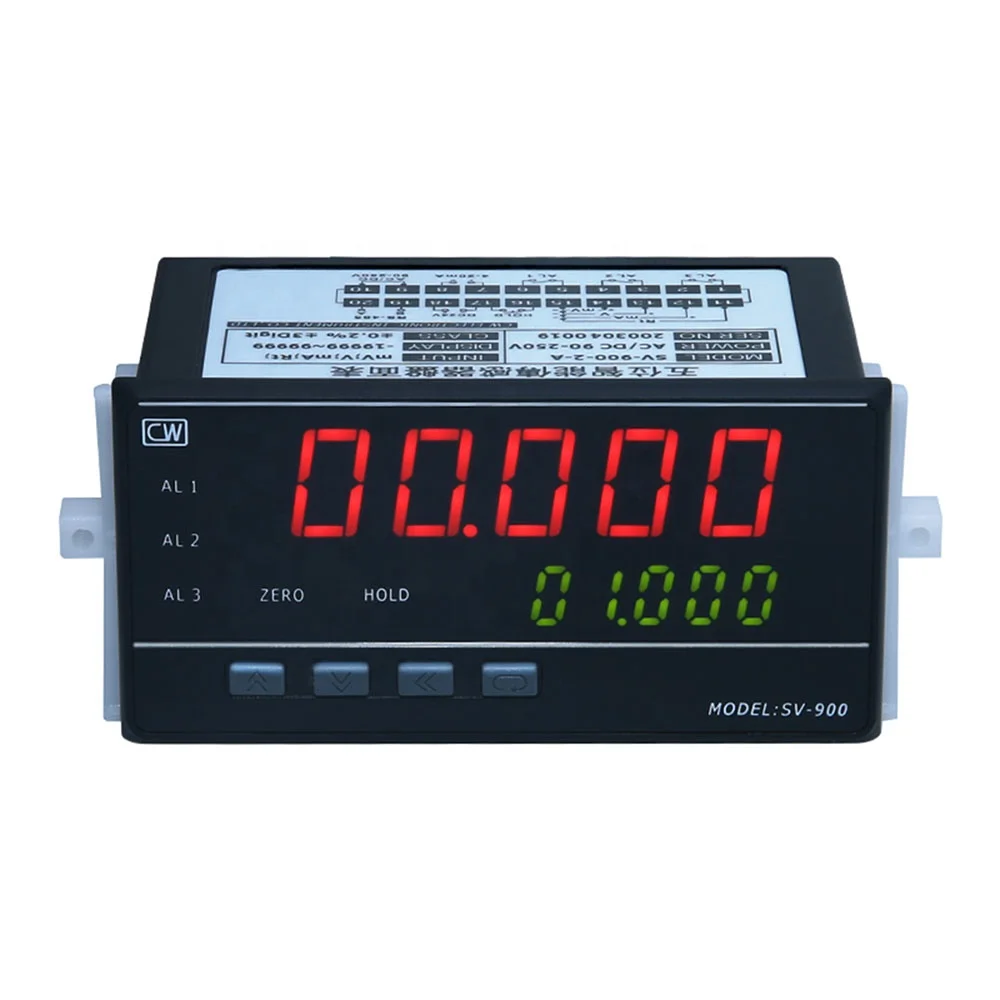

5 Digit Intelligent Pressure Gauge Digital Display Pressure Display Gauge Analog Quantity Display Gauge SV-900
Product Description
Smart meter input signal type 01, voltage 0~10V 02, millivolt voltage 0~200mV 03, current mA, 0~1mA, 4~20mA, 4~20mA 04, Resistance Rt, 0~400Ω, 0~1KΩ, 0~10KΩ
How to choose
DC0-10V input without output DC4-20mA input without output DC0-5V input without output DC0-20mA input without output SV-900-1-A with one relay output SV-900-2-A with two relay outputs SV-900-3-A with three relay outputs SV-900-0-B with 4-20mA analog output SV-900-0-C with RS-485 communication output SV-900-0-D with analog quantity + communication output Output control 0: No output 1: a section of output 2: Two-stage output 3: Three-stage output Communication function A: None B: With transmission C: With 485 communication D: With transmission and 485
Specification
|
item
|
value
|
|
Power supply
|
AC/DC 90-250V (50/60Hz)
|
|
Power consumption
|
About 4VA (220VAC 50Hz)
|
|
Measurement error
|
±0.2% F. s±3Digit
|
|
Display range
|
-19999-99999
|
|
Keep way
|
Switch on
|
|
Analog output
|
4- 20mA; 0-10V output
|
|
input signal
|
mV; V; mA; Rt optional
|
|
communication
|
RS-485 (Modbus)
|
|
Auxiliary power
|
DC24V/ 20mA max
|
|
Withstand voltage
|
AC2KV, 1 minute between power supply/input terminal/output terminal
|
|
Temperature and humidity resistance
|
0-50°C 35%~85% RH
|
|
Install
|
Panel type (W96*H48*D65mm)
|
|
Output control
|
Full range free setting, AL1; AL2; AL3
Relay output: AC250V1A (resistive load)
|
Title goes here.
9 10: Power supply AC/DC 90-250V 1115: Rt signal input 1215: mA signal input 1315: V signal input 1415: mV signal input 1617: HOLD guarantee duration 1718: DC24V power supply output 1920: Rt-485 communication output 56: The first relay output 34: The first relay output 12: The first relay output
