Description

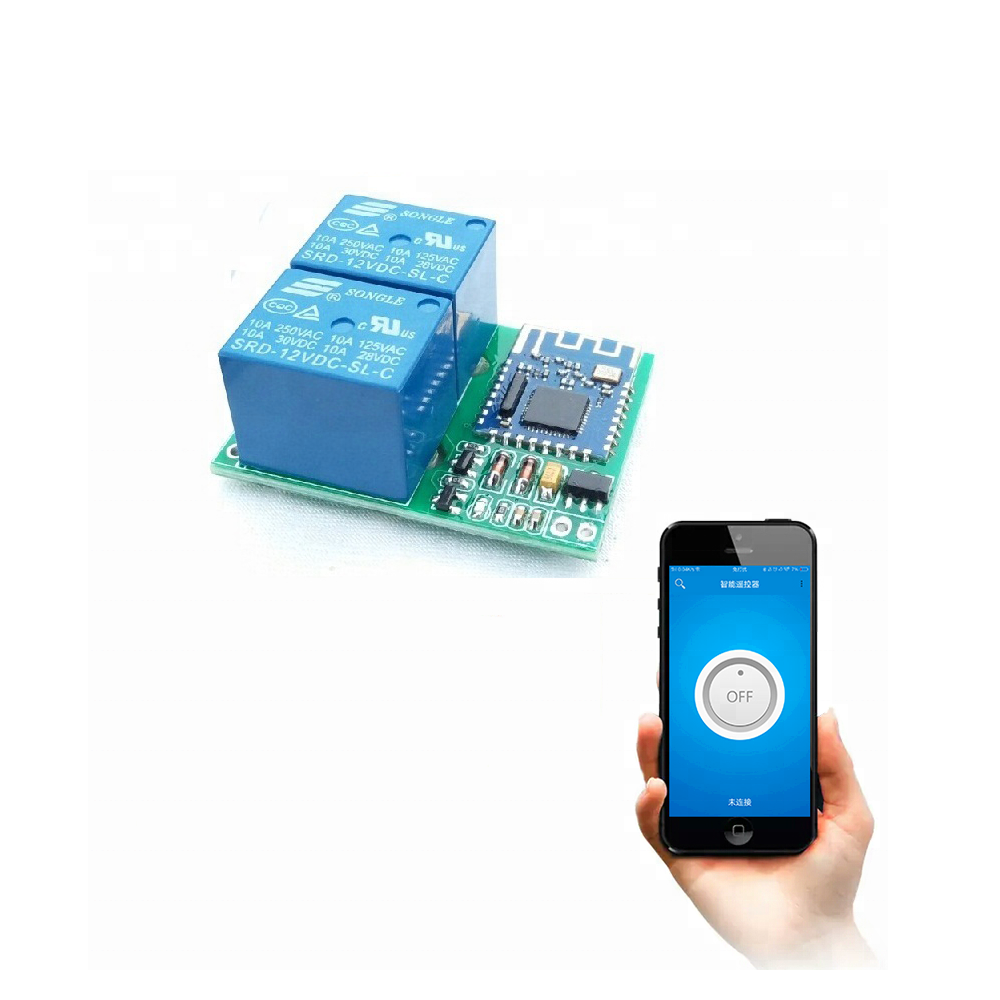

5-9V 9-12V 80-250V Smartphone Ble Relay Switch Module Ble Relay Controller for Motor Driver Light
Product Description
1
Shell size: 50 * 35 * 22mm
2
Module size: 4.7*3.11.9cm
3
Effective distance: greater than 15 meters
4
Rated voltage: 5-220V power supply range is optional
5
Standby current: less than 8MA
6
Working mode: jog, switch (self-locking) interlock, APP free configuration
7
Load range: 0-220V 10A
Precautions
1, can not use the full package benefits module 2, use the specified power supply to guarantee the service life 3, life and stability depends on the module power supply, there is no suitable power supply, please buy a model with voltage regulator 4, the password is 6 digits, you can't retrieve it after forgetting it.
Note
We have 2 way 4 way 5-9V/ 9-12V/ 9-24V/ 12-80V/ 80-220V Ble relay board. Please leave us a note which one do you want.
