Description
5-24V Hand Sweep Sensor Switch DIY IR Proximity Sensor LED Cabinet Light Photoelectric Motion Sensor Pir Light Switch
Product Description

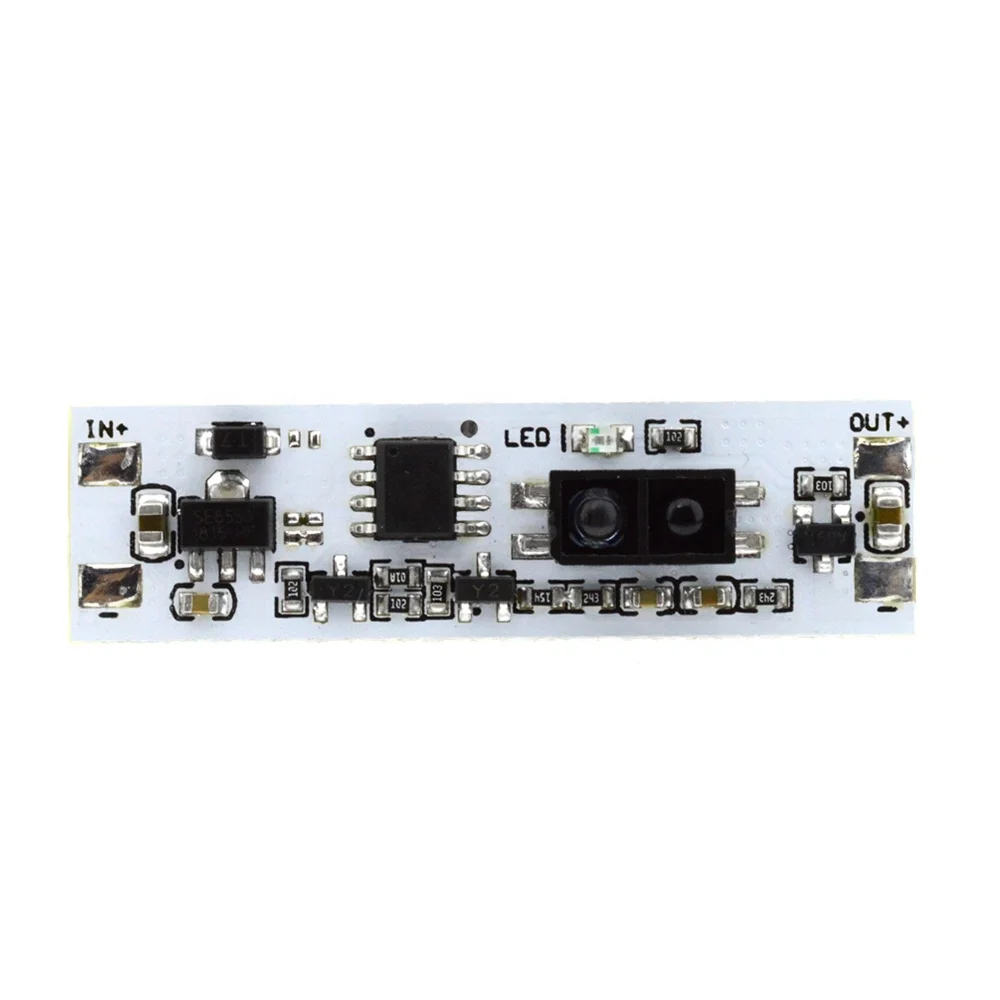

Hand scan sensor switch, used for non-contact hand scan control of LED lights, hand scan distance up to 30~80mm, infrared mode is used to block the sensor
Product Paramenters
Product name
hand sweep sensor module
Input voltage
5 ~ 24V (DC)
Output voltage
equal to input voltage
Output form
switch + indicator
Induction distance
30 ~ 80mm
Delay time
sweep and turn on / off
Induction principle
infrared, distance
Application
DC, constant voltage
Load current
resistive 3A
Standby current
10 ~ 15mA
Total power
<= 72W
Size
42 * 12 * 7.9mm
Installation Instructions
Note
The controller is only suitable for the switch control of LED lights, not for inductive loads (such as inductance, motors, relays, etc.)
