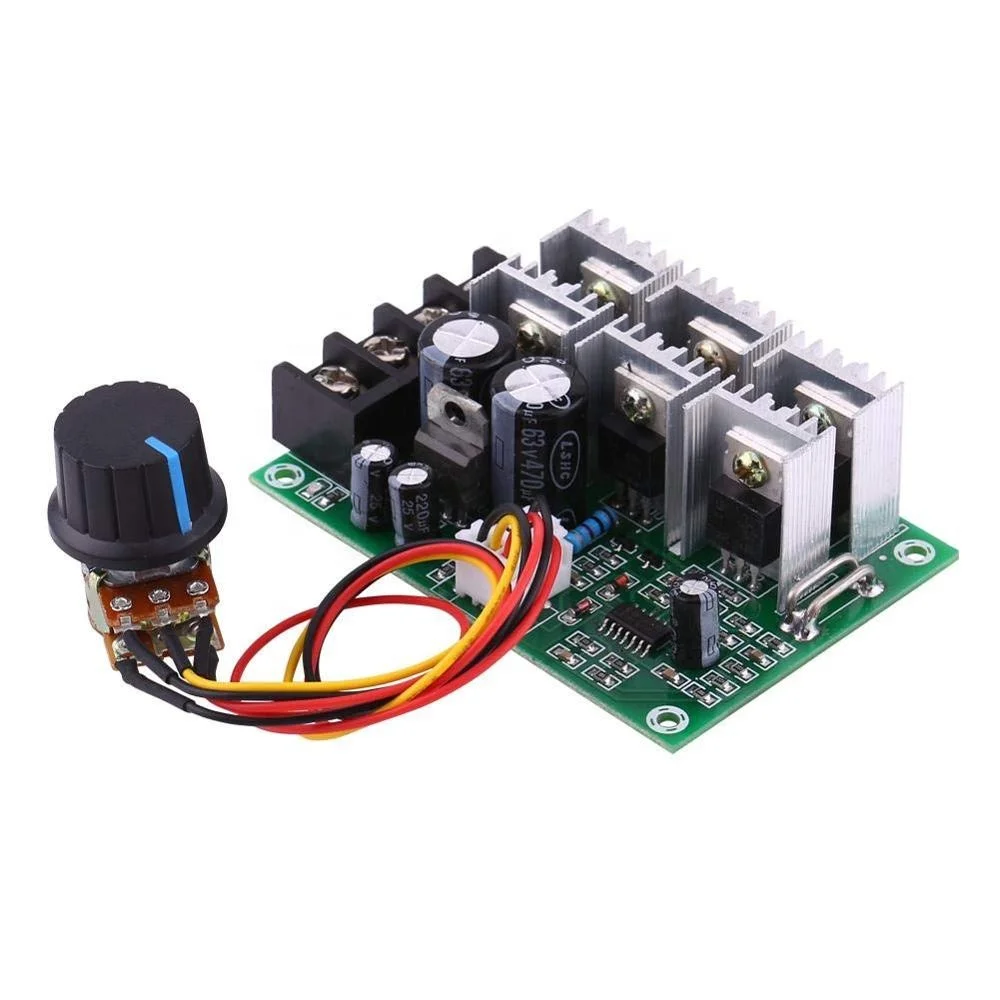

48V 24V 40A High Current DC Motor Speed Controller Overload Protect DC Motor Reducer Permanent Magnet Brushed DC Motor
Product Description
This speed controller for permanent magnet DC Motor is industrial product with high stability. It's the combination of speed controller and overload protector. With the slow start function, it will help a lot in protecting the speed controller and motor from instantaneous large current. With locked-rotor protection function, it is capable of limiting large current caused by locked rotor, rather than cutting off power. It's also upgraded with low-voltage protection. All in all, this is a well-designed product with customers in mind, and it's multi-functional and durable.
|
Input voltage
|
DC10-55V
|
|
Output voltage
|
linear with load
|
|
Maximum current
|
0-40A
|
|
Current limit value
|
30A
|
|
Speed control mode
|
potentiometer (270 degree linear)
|
|
Speed range
|
0 - 100%
|
|
Control frequency
|
15KHZ
|
|
Wiring type
|
Screw terminal
|
|
Knob specification
|
10K (with switch)
|
|
Module size
|
length * width * height 80MM * 56MM * 28MM
|
|
Product net weight
|
95 grams
|
Features
1, Slow start! Stall protection! Low voltage protection!
2, Motor characteristics start momentary current is large, blocking current is infinite
3, Soft start can solve the damage caused by instantaneous high current to the governor and motor
4, Stall protection (current limiting system) can limit the large current generated by motor stall
5, Product update low voltage protection (10V) If the battery is powered well, it can be over-discharged.
6, Note: Stall protection is not power off. Current limit. Current limit value 30A.
