433MHz Ultra Low Power Long Range ARM M3 LoRa 4000m RF Module CC1310
Advantage
Ultra-Low Power
| Voltage Range | 2.4~3.8V |
| Standby | 1uA |
| Active-Mode RX | 5.5mA |
| Active-Mode TX | 75mA @+20dBm |
Long Range
- 4000m @+20dBm, 2.4kbps
- 4500m @+23dBm, 2.4kbps
TI-RTOS and Contiki System Support
External Watchdog
Small Size, Compatible with VT-S02x
Descriptions

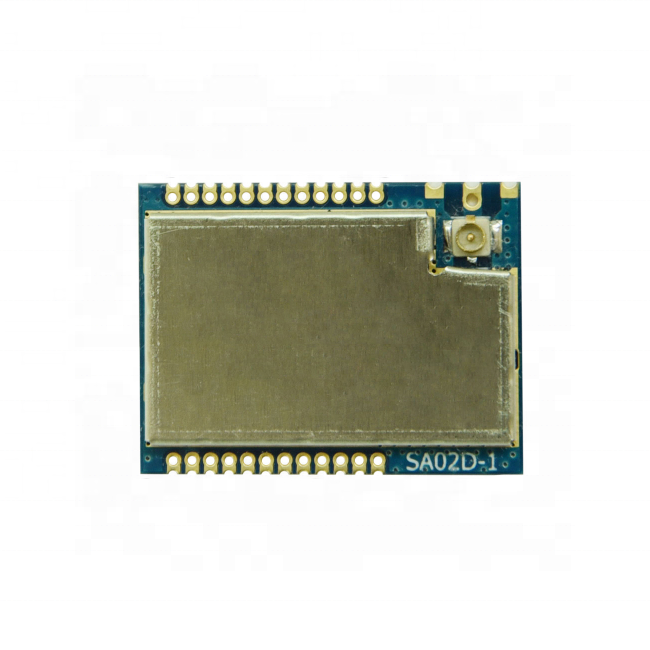

VT-SA02x RF Module is base on the SoC chip CC1310 of Texas Instruments design. It integrated with a high performance RF core, an ARM®®-M3 controller and a high performance amplifier.
It operates at 433MHz, max output power up to 23dBm.
Thanks to its ultra low power feature, the module is extremely suitable for the battery power systems. And thanks to its small size, the module can be easily installed in existing systems without any external circuits.
Device Information
| Part Number |
Frequency |
Output Power |
Sensitivity |
Range |
Voltage |
Temperature |
| VT-SA02C-433 |
433M |
20dBm |
-124dBm |
4000m |
2.4~3.8V |
-40~85℃ |
| VT-SA02D-433 |
433M |
23dBm |
-124dBm |
4500m |
2.4~3.8V |
-40~85℃ |
Features
Radio
- Operate Frequency 433MHz
- Modulation: MSK,FSK,GFSK,OOK,ASK,4GFSK,CPM
- Sensitivity: -124dBm @Long-Range Mode
- Data Rate from 0.625Kbps to 4Mbps
- Hardware support FEC, Data Whitening, CRC
- Support 8.2.15.4g
- Support LBT and CCA
- Support Digital RSSI
Microcontroller
- Powerful ARM® ®-M3
- Up to 48MHz Clock Speed
- 128KB Flash
- 20KB SRAM
- 2-Pin cJTAG and JTAG Debugging
- Support OTA
Peripherals
- 19 GPIO
- 4 Timers (8x16-Bit or 4x32-Bit),
Support PWM Each
- 12-Bit ADC, 8-Channel
- UART,SSI,I2C,I2S
- Real-Time Clock (RTC)
- AES-128 Security Module
- Support 8 Capacitive Sensing Buttons
- Integrated Temperature Sensor
Electric Specification
- Voltage Range from 2.4 to 3.8V
- Standby: 1uA
- Active-Mode RX: 5.5mA
- Active-Mode TX: 75mA @ +20dBm
Package
- SMD + DIP
- Antenna Interface: SMD + DIP + IPEX Connector
- VT-SA02C Module:
|
|
MIN |
MAX |
UNIT |
|
| 433MHz |
Operate Frequency |
431 |
450 |
MHz |
| Output Power |
-10 |
+20 |
dBm |
|
| Sensitivity @Long-Range Mode, 2.4Kbps |
- |
-124 |
dBm |
|
| Data Rate |
625 |
4M |
bps |
|
| TX Current @ +20dBm |
- |
75 |
mA |
|
| RX Current @ MCU Ative |
- |
6 |
mA |
|
- VT-SA02D Module:
|
|
MIN |
MAX |
UNIT |
|
| 433MHz |
Operate Frequency |
431 |
450 |
MHz |
| Output Power |
-10 |
+23 |
dBm |
|
| Sensitivity @Long-Range Mode, 2.4Kbps |
- |
-124 |
dBm |
|
| Data Rate |
625 |
4M |
bps |
|
| TX Current @ +23dBm |
- |
125 |
mA |
|
| RX Current @ MCU Ative |
- |
6 |
mA |
|
