Description
Product Intorduction
|

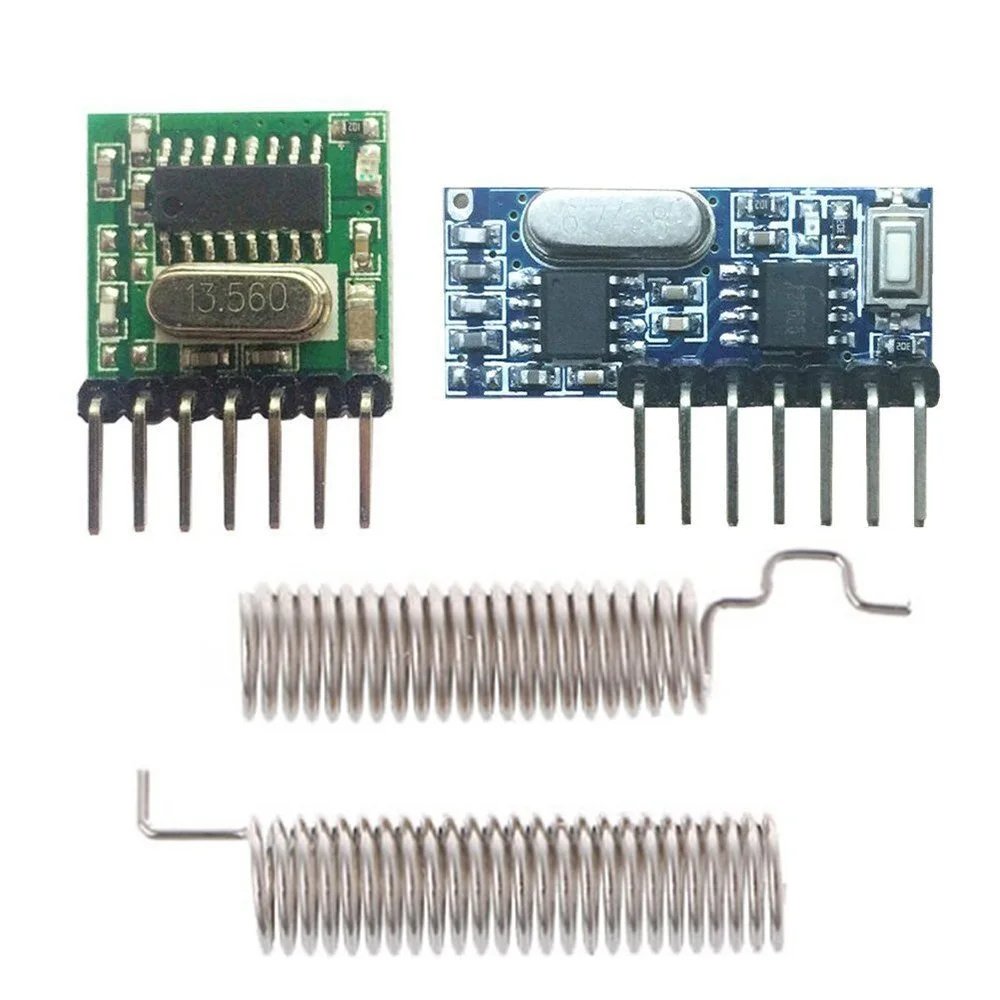

Receiver module
|
||
|
Working Voltage
|
DC2.5V-5V
|
|
|
Working current
|
3MA
|
|
|
Output current
|
10 mA
|
|
|
Working Frequency
|
433MHz
|
|
|
Receive Sensitivity
|
-108dB
|
|
|
Working mode
|
Point move, self-locking, interlocking
|
|
|
The output
|
4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons
|
|
|
Button usage (sets mode and starts pairing process):
Press once: Inching mode (Momentary Mode) Press twice: self-Lock Mode (Toggle-Mode of the 4 Channels) Press three times: interlocked mode (selected channel active and be cleared, if another channel becomes active) |
||
|
Transmitter module
|
||
|
Transmitting power
|
11dbm
|
|
|
Emission current
|
10 mA
|
|
|
Rate of fire: maximum
|
10KB / S
|
|
|
Operating Voltage
|
DC 3V-24V
|
|
|
Customizable special code
|
MCU type
|
|
|
Optional fixed encoding type
|
PT2262 / EV1527 / HT6P20B
|
|
|
Key data
|
A, B, C, D groups of 4 inputs can be combined into 15 groups.Standby current: <3UA
|
|
|
Each module has a unique ID address code
All modules K1-K4 four key code is the same |
||
Pins Instruction
GND : ground or negative pole
+V : DC3.3~5V input
D0: Data output
D1: Data output
D2: Data output
D3: Data output
VT:Output
+V : DC3.3~5V input
D0: Data output
D1: Data output
D2: Data output
D3: Data output
VT:Output
How To Programming:
1.Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.
2. Learning remote code: press learning key once, twice or three times (see below).
LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.
3.Test: after the above operation , the receiver board can be controlled by the remote control .
More transmitters with different IDs can be learned and stored additionally, starting with step 2. A mixture of different modes is
possible.
Short antenna for transmitter module
Long antenna for receive module
1.Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.
2. Learning remote code: press learning key once, twice or three times (see below).
LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.
3.Test: after the above operation , the receiver board can be controlled by the remote control .
More transmitters with different IDs can be learned and stored additionally, starting with step 2. A mixture of different modes is
possible.
Short antenna for transmitter module
Long antenna for receive module
