Description
Product Description

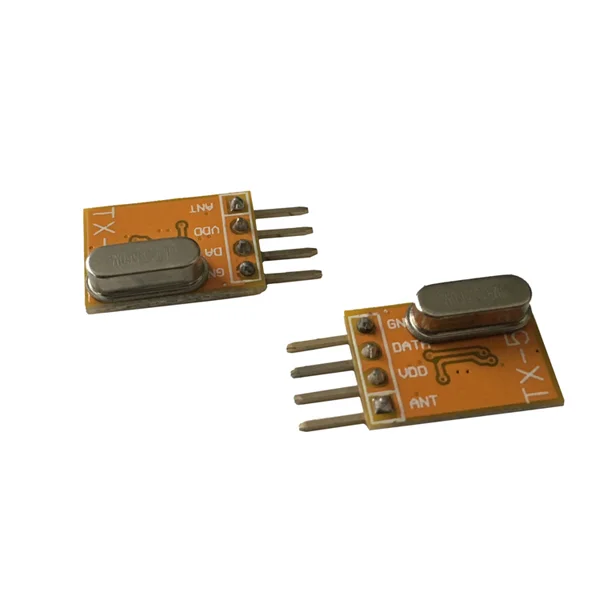

General description The AG-TX5 is an ASK transmitter module.The result is excellent performance in a simple-to-use,the TX5 is designed specifically for remote control,wireless mouse and car alarm system operating at 315MHz.
Key Features 1). The range can be up to 300-500m matching with RXB8 receiver 2). Operation voltage: VCC= 1.8 to 3.6V 3). Frequency: 315MHz/ 433.92MHz(others are available) 4). High output power: 10dBm 5). Frequency tolerance: ±50KHz 6). Current: 10mA 7). Operating temperature: -40℃ ~+80℃ 8). Small size with size of PCB: 11*16*5.5mm 9). Bit rate: <3kbps 10). Circuit shape: PLL
Product Application 1). Remote gate controls 2). Remote keyless entry 3). Car alarm systems 4). Wireless security systems 5). Automation systems
