433MHz DC 12/24V RF Remote Control Switch 2CH RFID Relay Receiver Smart Home Automation Module For Garage Gate--shop.rfid-life.com

$3.20
Use:  315MHz
Color:  White
Quantity

Description

Products Description

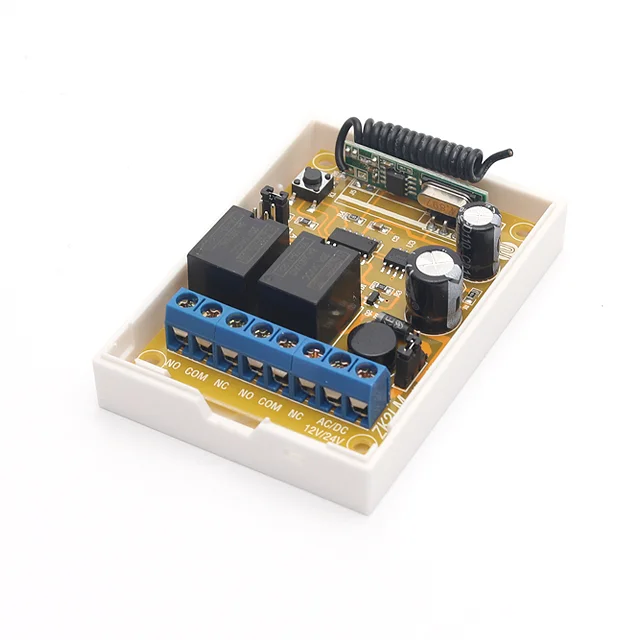

433MHz DC 12/24V Universal Wireless Remote Switch 2CH RF Relay Receiver Smart Home Automation Module For Garage Gate
Tech Spec:
---Working voltage : DC 12V/24V
--- Quiescent Current : <10mA
--- Max current : <10A
--- RF frequency : 315/433MHz
--- Working temperature : -10~+60°C
--- Receiving Sensitivity : >110dbm
--- Support encoding : eV1527 Leaning code,SC2262/P2262/Fixed code
--- RF Operating mode : ASK superheterodyne wireless reception
--- Remote operating mode : Momentary Mode(M4) / Toggle Mode(T4) /Latched Mode (L4)

About Working mode:
----Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
---Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
---Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
