1 Operating Voltage : DC 12V(5V optional)
2 Operating Current(DC 12V) : Standby current 11MA, 1 relay open 37MA, 2 relays open 64MA, 3 relays open 88MA, 4 relays open 110MA, 5 relays open 131MA, 6 relays open 151MA, 7 relays open 170MA, 8 relays open 187MA
3 ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' Four functional modes
4 Decoding type: fixed code, can be adapted to up to 32 remote controls
5 Remote control type: EV1527
6 Working distance: 100 meters (Wireless reception sensitivity: -108dbm)
7 Input control pins 8 ,5V TTL level ,NPN trigger, 0.2-2 second low pulse
8 Size: 99 x 62 x 20 mm
9 Weight : 118.5g
10 Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A
Product Features:

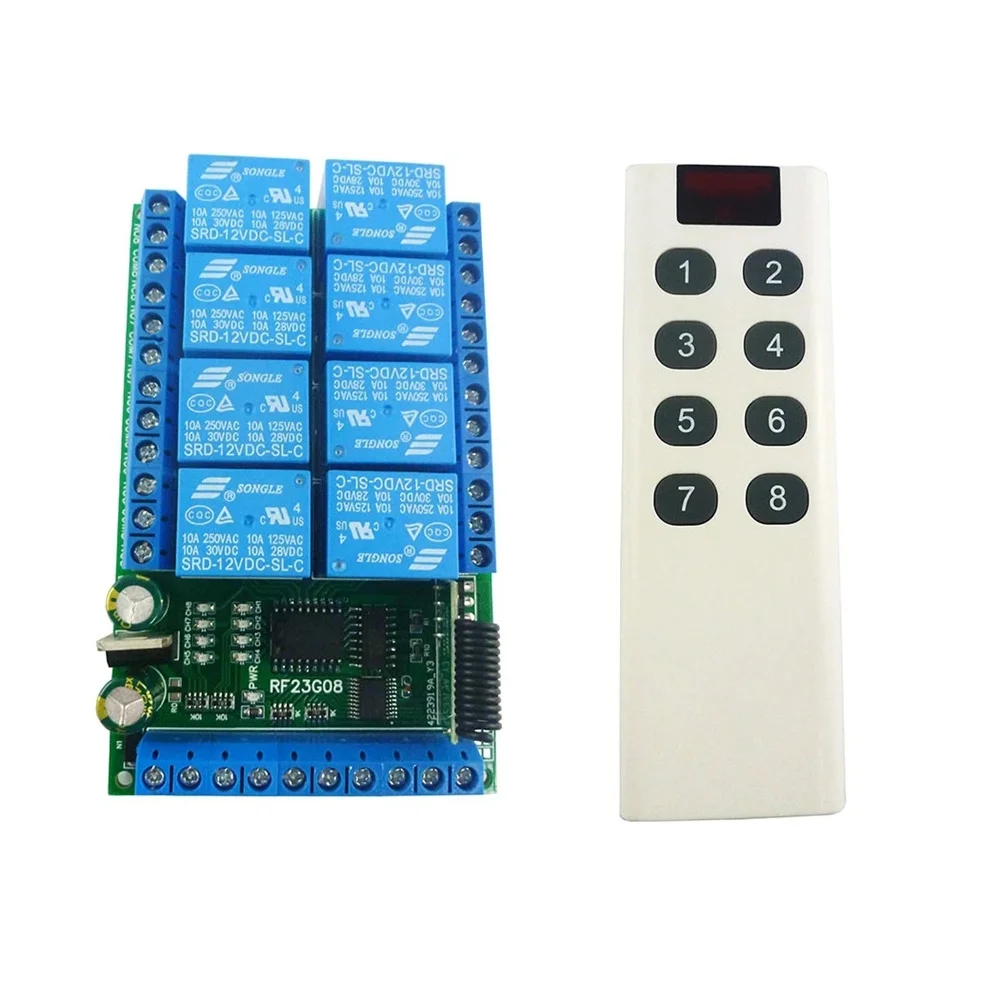

8 channel Multi-function 433M Wireless controller, each channel independently triggered independent delay, do not interfere with each other.
4 kinds of Functional mode: Non-locking (Momentary );Delay(2/10/60/600/3600seconds); Self-locking (Toggle); Inter-locking (Latch), The function mode and delay time are selected by the Solder pad.
Low pulse trigger(Connect to the power supply GND via the trigger button or low level control via the MCU IO port)
In normal working mode, the LED will be always on, and when a valid remote control key value is received, the LED will flash.
Clear code: Press and hold the button, and the LED will be off. After about 5 seconds, the LED will be on, and the code clearing is completed (Note: After the clear code is executed, the previously saved remote control does not exist. If you need to use the old remote control, please re-learn).
Adaptation (learning):
Step 1 (matching the remote control): Press any button on the remote control, if the LED light flashes quickly, it means it is a matching remote control, otherwise it is not a matching remote control.
Step 2 (enter learning mode): touch the button, the LED light is off.
Step 3 (Learning the remote control): Press any button on the remote control within 10 seconds, the LED light flashes 3 times and then turns on, then the learning is successful; if the LED light only flashes twice, the learning fails, indicating that the learning has been completed pass the remote control; learning is complete.
Note: Please use the remote control we sell, otherwise it may not be compatible with the remote control.
Wiring diagram:
1 DC 12V(5V/24V) control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, toy car and other DC 12V(5V/24V) equipment
Power supply : 12V 23A battery replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 18mA ;
Oscillation mode: SAW resonator ;
Oscillation resistor : 270K
Modulation mode: ASK OOK ;
Operating frequency: 433.92MHz ;
Frequency dev iation: ±0.2MHz ;
Encoding format: Million Group Code ( EV1527 ) ;
Transmit power: 15 mW.
Data Rate : 50~60KHZ;
