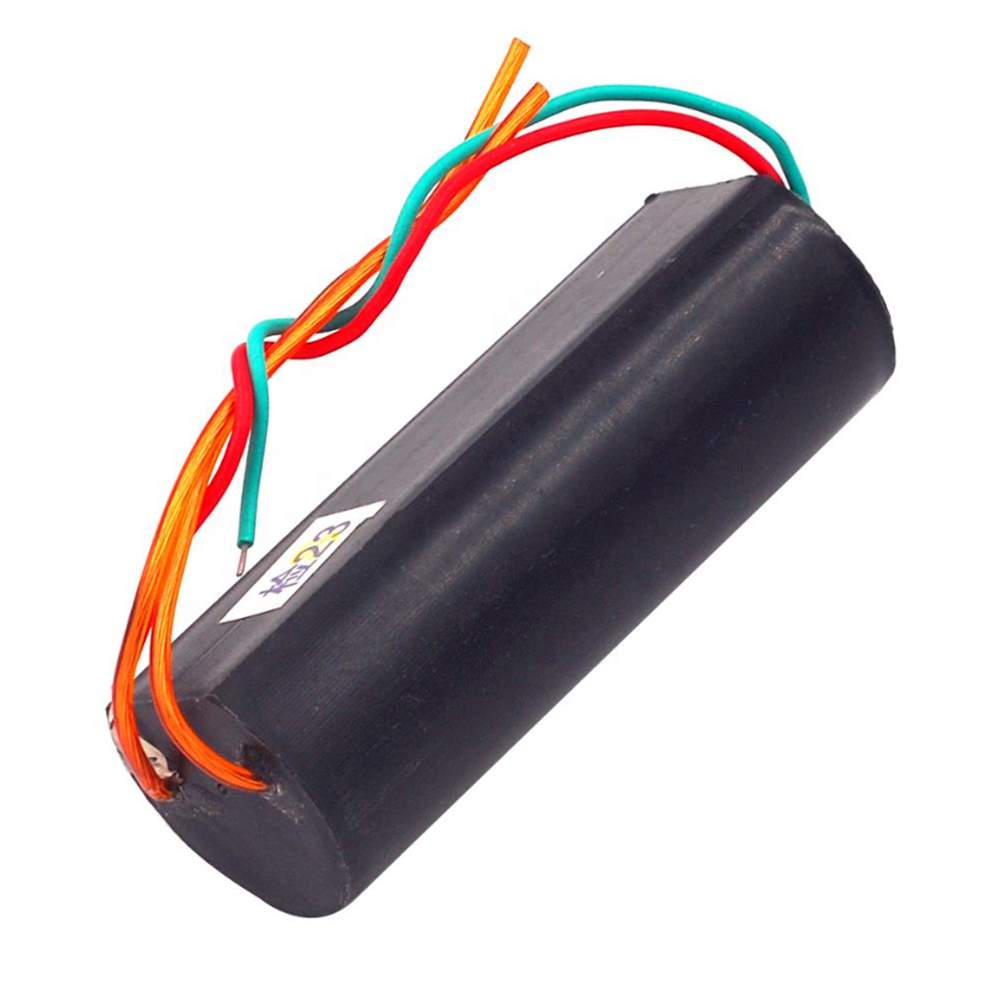

400KV High Voltage Pulse Generator Step Up High Voltage Pulse Inverter ARC Generator High Voltage Pulse Transformer
Product Description
Product manual:
This high-voltage module is capable of intermittent operation for a short period of time, up to 6V3-6V power supply, a lithium battery can work 2 sections in series must be used for a short time, each work is best controlled within 5 seconds The internal temperature of the power supply of about 8V is very fast and easily damaged. The high-voltage module module is fabricated by using the Tesla coil principle, and outputs high-voltage pulse current, small volume, high efficiency, simple peripheral circuit (just need to connect the switch, the battery can be) the discharge intensity is fierce.
|
Input voltage
|
DC 3V-7.2V
|
|
Input current
|
2A-5A
|
|
High voltage type
|
pulse current type
|
|
Output voltage
|
about 200,000 volts (please pay attention to safety when using)
|
|
Two-pole discharge distance
|
10mm-20mm
|
|
High-voltage line length
|
about 100MM
|
|
Input power cord length
|
about 100MM (red line is positive)
|
About the power supply
Can use a single 3.7V lithium battery or two series, such as 18650 battery, idle mobile phone battery (to remove the protection board, recommended capacity above 2000MAH) or nickel-cadmium / nickel-hydrogen battery, 4V or 6V lead-acid battery. This module is a high-voltage inverter for the science production, the finished module of the transformer/booster After inputting DC3.7V-6V at the input terminal, DC high voltage (about 1-2 cm arc) of about 200,000 volts can be obtained at the output end, which can be used as a general science experiment, electronic instrument, negative ion generator, and scientific small production. Use of high voltage source. Note that this is not a high temperature arc, you can't smoke cigarettes.
Instructions:
The module is divided into input and output. The red and green lines are the input terminals, red and green are negative, and the output is two high-voltage lines of the same color. The input terminal can be connected to the battery to generate high-voltage arc. Please operate the module strictly according to the method of use and precautions, otherwise it will easily damage the module!
About input power:
Can use a single 3.7V lithium battery or two series, such as 18650 battery, idle mobile phone battery (to remove the protection board, recommended capacity above 2000mAh) or nickel-cadmium / nickel-hydrogen battery, 4V or 6V lead-acid battery, etc. 6V battery for best results)
Note
1. The high-voltage module should avoid the use of high-voltage and no-load power. Before power-on, the appropriate distance of the high-voltage line must be adjusted. The arc-pull distance of the high-voltage line is proportional to the battery voltage and capacity used. 2. When testing the arc distance, it should be tested from short to long. When the power is on, it is forbidden to exceed the longest arcing distance. Because the high voltage energy cannot be released, the module is easily damaged. 3, the module's power is large, the internal heat is not suitable, so it can not work for a long time, generally no problem within 10 seconds. 4. The way to determine whether the battery capacity can drive the maximum output power is to measure the battery voltage when the arc is pulled. If you are around 6V, you can output the maximum power. 5. The small-capacity lithium battery is connected in series of 7.2V. The voltage measured in the arcing state has dropped to about 4V. The smaller the capacity, the lower the voltage is pulled. Therefore, it is recommended to use lithium batteries of 2000MA or more, and it is better to have batteries with 4000MA or more.
3-6V 800-1000KV parameters
This module is a high-voltage inverter for the science production, the finished module of the transformer/booster After inputting DC3.7V-6V at the input terminal, DC high voltage of tens of thousands of volts can be obtained at the output end. It can be used as a high-voltage source in the general science experiment, electronic instrument, negative ion generator, and scientific small production. The module is fabricated using the Tesla coil principle, which outputs high-voltage pulse current, small size and high efficiency. The peripheral circuit is simple (just need to connect the switch, the battery can be) the discharge intensity is fierce. Note that this is not a high temperature arc, you can't smoke cigarettes.
We have 3-6V 400KV and 3-6V 800-1000KV, please leave us a note which one do you want. Otherwise we default sent 400KV.
Details Images
