Description
40 Segments LED Bar Graph Meter Double Beam Level Indicator LED VU Meter Bar-graph Display LED Bar Graph Meter
Product Description

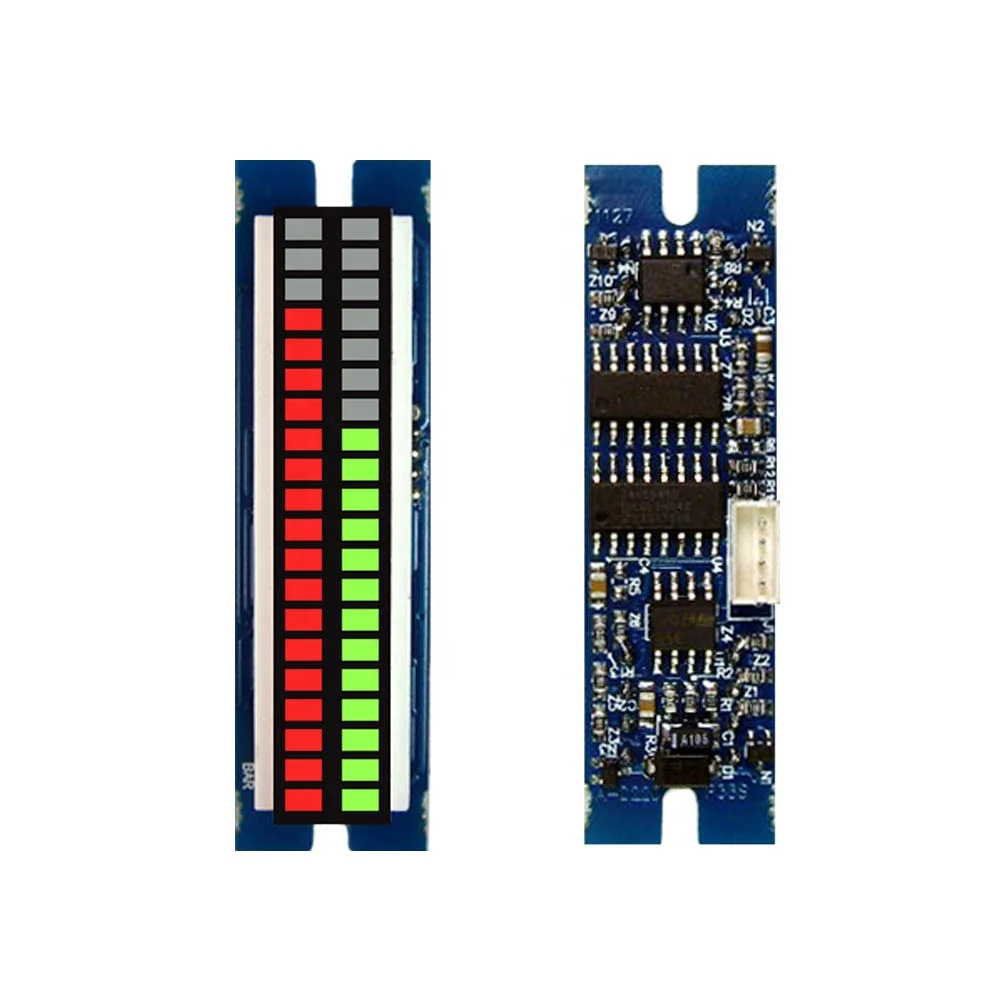

40-segment LED double-beam display meter module, one beam and two signals
Specification
1.
Measured signal form: current, voltage, varistor;
2.
Input allowable overload: twice the input signal;
3
Voltmeter input impedance: >500KΩ
4
Ammeter loop resistance: <50Ω;
5
Valid display segments: 2*20 segments;
6
Light bar display length: 30mm;
7
Light bar display width: 6.0mm;
8
Segment spacing: 2.5mm;
9
Power supply: DC5V-DC24V;
10
Typical power consumption: ≤0.25W (F.S.);
11
Measurement accuracy: current, voltage (±0.5%F.S±1segment), varistor (±1.0%F.S±1segment);
Details Images
