40~100mm Long Distance 5V 1A High Current Power Supply XKT801-23 Induction Coil Charger Wireless Charging Plate

Wireless Charging Plate
$22.97
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description

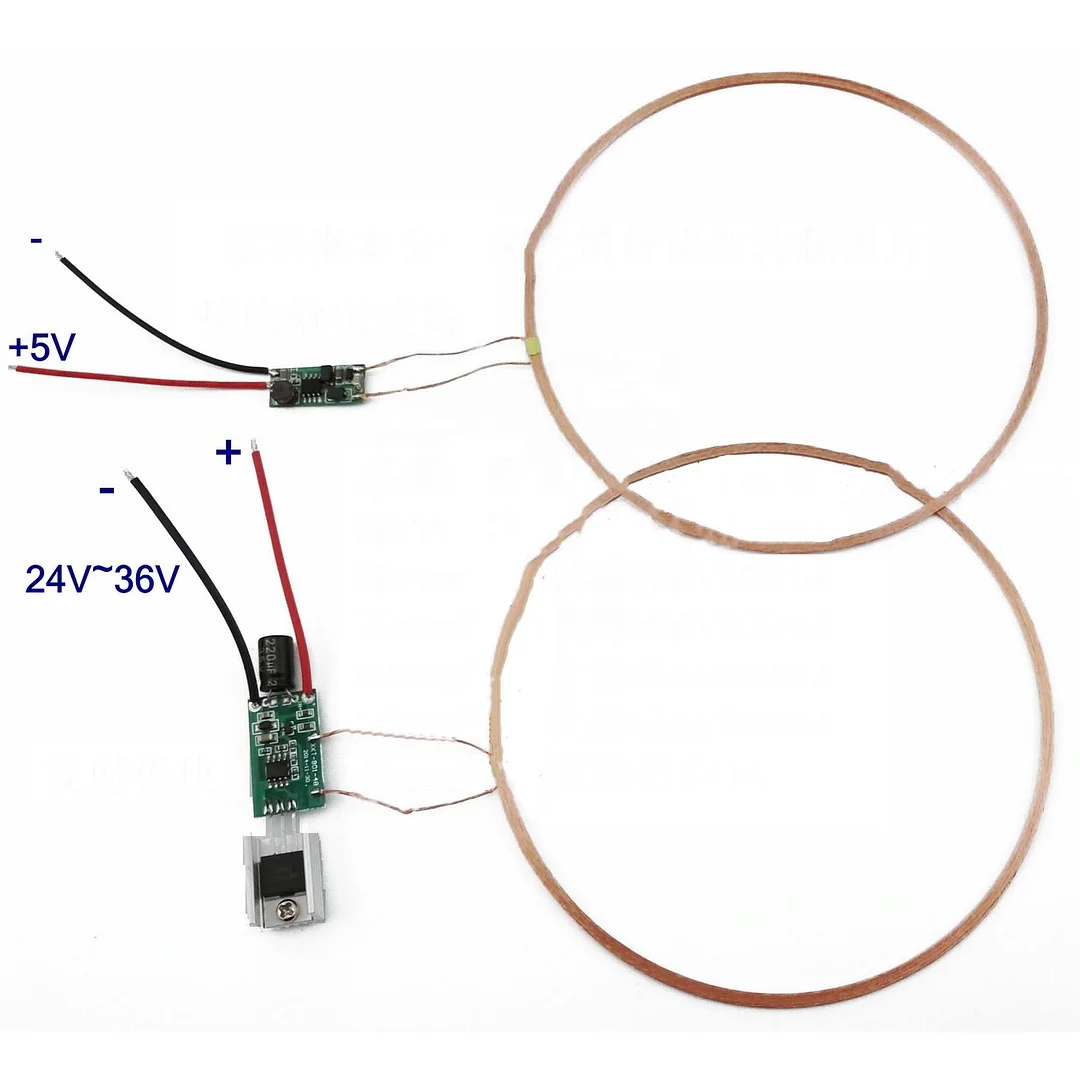

40~100mm Long Distance 5V 1A High Current Power Supply XKT801-23 Induction Coil Charger Wireless Charging Plate
Product Description
100mm DC remote module, designed with XKT-801 chip, the circuit is simple and practical
Specification
item
value
Transmission voltage
wide voltage (12V~) 36V
Transmitter module size
17*28mm
Transmitting coil
inner diameter 125mm outer diameter 135mm
Receiver module size
10mm*25mm
Installation Instructions
Receiver coil size: inner diameter 125mm outer diameter 135mm
Sensing distance: receiving output 5V100mA at 100mm
Receive output 5V150mA at 90mm
Receive output 5V200mA at 80mm
Receive output 5V300mA at 70mm
Receive output 5V450mA at 60mm
Receive output 5V700mA at 50mm
Receive output 5V1A at 40mm

Note: This module can not be used below 40mm!
Proximity will overvoltage damage the receiving module!
Details Images
