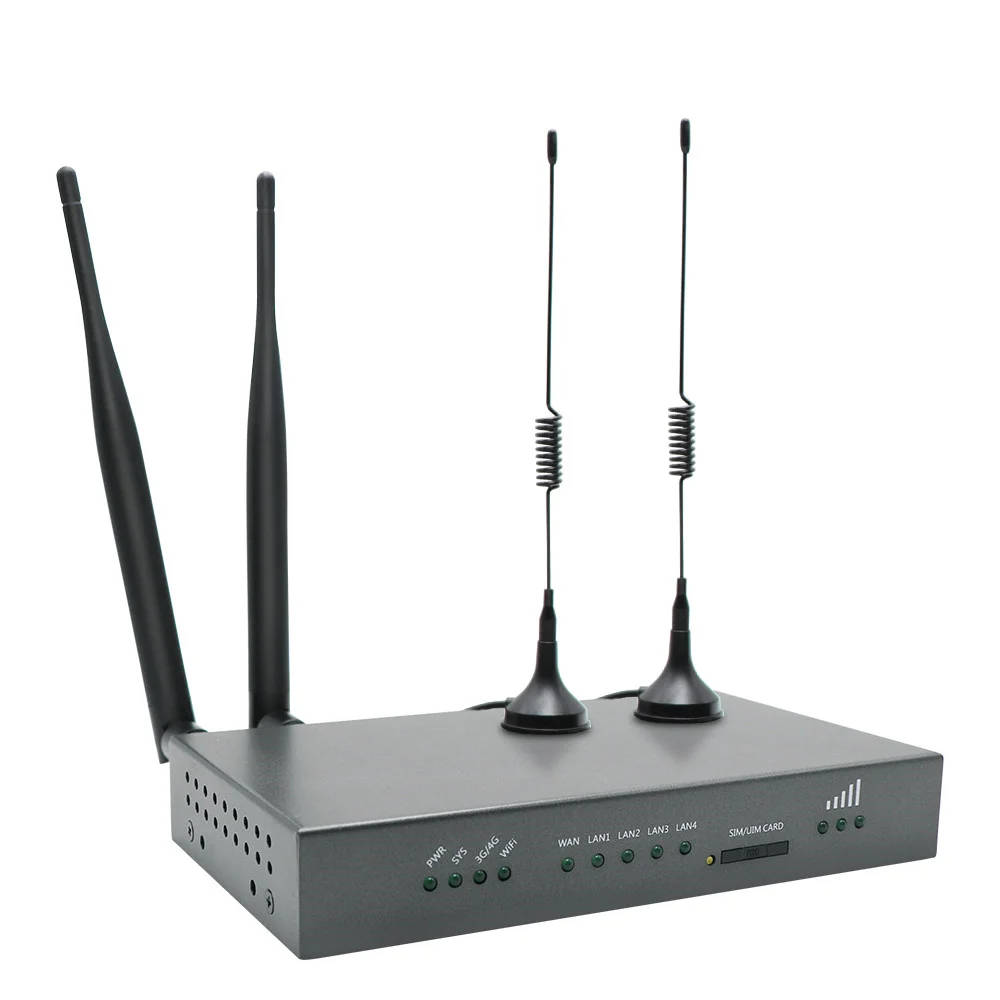

4 ports 4G LTE WIFI Industrial Grade Router 3G 4G Wireless Router with SIM Card Slot and WAN LAN Ports
Introduction
It is a high-speed industrial wireless router based on GPRS/CDMA/WCDMA/EVDO/LTE cellular mobile network, providing users with high-speed wireless Internet and wireless data transmission.
This product adopts 32-bit industrial dedicated communication processors, industrial wireless module and LINUX embedded real-time operating system. It supports a SIM card interface, four LAN ports, a WAN port, a USB interface and WIFI interfaces, which can provide internet or data transmission for LAN port equipment or WiFi equipment at the same time. Adopting wide temperature and wide voltage input, the product is also very stable and reliable through EMC test.
It has been widely applied to M2M industry of the Internet of things industrial chain, such as self-service terminals, intelligent grid, intelligent transportation, smart home, financial, mobile POS terminals, supply chain automation, industrial automation, intelligent buildings, firefighting, public security, environmental protection, meteorology, digital medical treatment, telemetry, military, space exploration, agriculture, forestry, water, coal, petrochemical and other fields.
Features
ü Adopt High performance full band cellular wireless module
ü Adopt High performance dedicated routing chip
ü Adopt metal shell design( protection level reaches IP30, mainly used in industrial grade environment)
ü Support DC6-28V working Voltage, -40+70℃ working temperature
ü Support Watchdog design (24 hours online)
ü Support Mobile and Unicom Telecom (4G 3G network optional)
ü Support 1 WAN port (10/100M), 4 LAN ports (100M), 2 WIFI interfaces(80211b/g/n), and 1USB interface
Details
|
Temperature |
Storage Temperature: (-30°C to 70°C) |
||
|
Working Temperature: (-20°C to 65°C) |
|||
|
Relative Humidity |
95% |
||
|
Warranty |
1 year |
Order information:
|
Model |
LAN |
WAN |
SIM slot |
WIFI ANT |
4 GANT |
|
YDT-R4008-4_LTE |
4 |
1 |
1 |
2 |
2 |
|
YDT-R4008-4_HSDPA |
4 |
1 |
1 |
2 |
2 |
|
YDT-R4008-4_EVDO |
4 |
1 |
1 |
2 |
2 |
|
Size |
L*S*H: 6.9in x 3.9in x 1.1in |
|
Weight |
Gross weight: 2.2lb Net weight: 1.3lb |
|
Accessories |
Router, 1.5m long RJ45 Cable, 12V/1A Power Adapter, Antennas, User Manual(PDF optional), Warranty Card, Certification |
Shipping: all goods could be shipped within 3 days after receiving the payment. DHL, UPS, FEDEX, Aramex, etc
Payment: bank transfer, shop on Alibaba, Paypal, Western Union
Special packages: We provide special packages to help you to save bulk taxes
