Description
Product Description

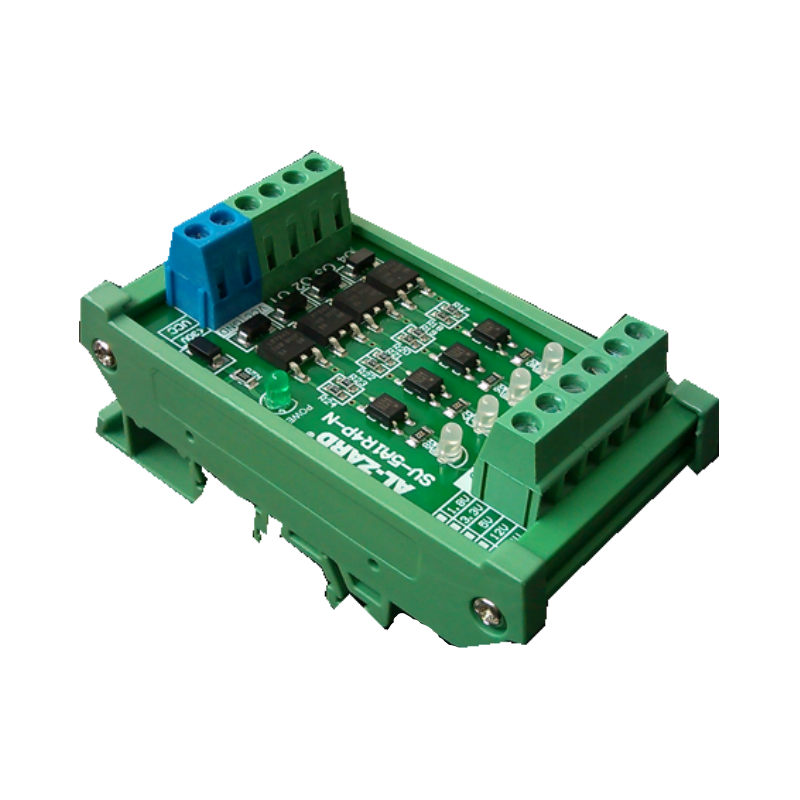

4 Channel PLC Amplifier Board Input Full Compatible Photoelectric Isolation High Power Transistor DC 3.3V 5V 24V PNP output
1. Adopt the new original imported field effect tube.
2, the input signal is compatible with NPN and PNP, can be compatible with Mitsubishi, Panasonic, Siemens and other PLC equipment and domestic PLC.
3, signal input voltage 3.3V/5V/12V/24V optional, to facilitate the control of different signal generation equipment.
4. Each input terminal adopts photoelectric isolation module to effectively protect the safety of the control terminal; It is also equipped with eight bipolar status indicators.
5, Wiring: VCC and GND are the power supply ports of this module, according to the prompt voltage wiring. COM is connected to the common pole of the signal control end, and 1-4 is connected to each control signal; The output end of the controlled electrical device is the source output, and the label is O1-O4.
6, installation method: DIN35mm rail installation, convenient and fast!
