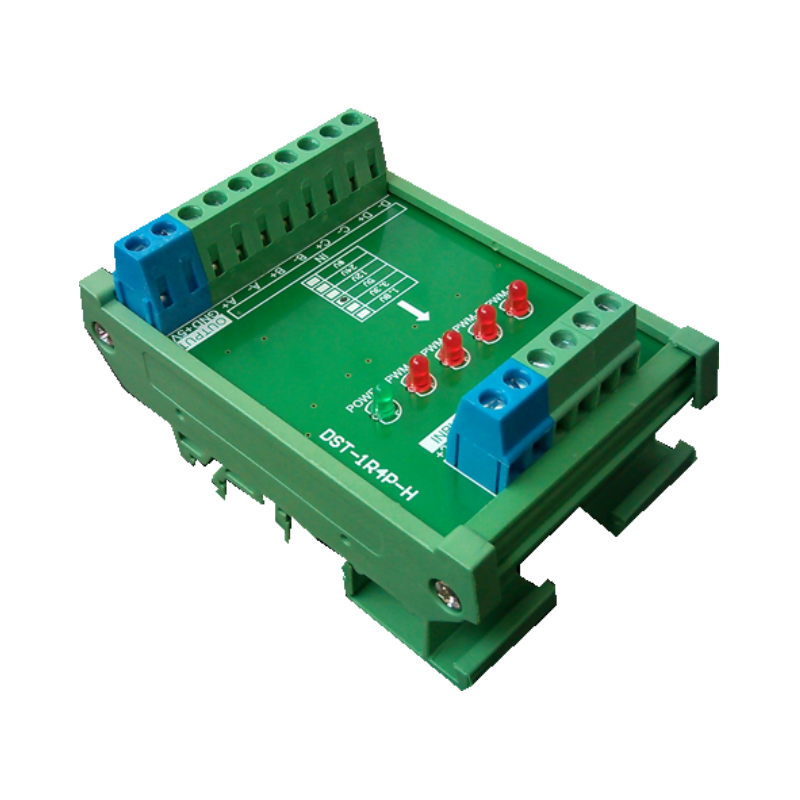

4 channel high speed pulse signal 2MHZ voltage level conversion single chip PLC 3V3 5V 12V 24V

$16.92
Specification : 1.8V to 24V
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Product Description
4 channel high speed pulse signal 2MHZ voltage level conversion single chip PLC 3V3 5V 12V 24V
1, the low voltage signal into high voltage collector signal output, 4 channels, electrical isolation between input and output.

2, limit operating frequency 2MHZ. Can realize single-chip microcomputer, ARM,DSP signal -->PLC high-speed signal port.

3, output mode: push-pull output mode, support NPN or PNP input PLC interface.

4, the module built-in voltage conversion module, can output 5V, 1A (maximum), for the grating ruler, rotary encoder module power supply.

5, installation method: DIN35mm rail installation, convenient and fast!

6, module dimensions: 85*58*28mm(length * width * height).

Note: This module provides 5V, 1A (Max) output. Please note whether the differential signal generator requires a 5V supply. Otherwise suspended, do not connect (such as servo drive). When the differential signal generation equipment uses a lot of power (such as grating ruler, rotary encoder, etc.), please use the new type (with 5V, 1A output).

Module internal structure diagram:


Module simple wiring example:

1, module wiring method 1 (NPN-> This module ->NPN) :
2, module wiring method 2(NPN-> This module ->PNP) :
3, module wiring method 3(PNP-> This module ->PNP) :
4, module wiring method 4(PNP-> This module ->NPN) :
5, module wiring method 5 (differential signal -> this module ->PNP) (this option "5V to 24V") :
6, module wiring method 6 (differential signal -> this module ->NPN) (this option "5V to 24V") :
