4 Channel EV1527 433MHz RF Relay Board Kit Wireless RC Transmitter and Receiver Board Remote Control Relay Board

RF Relay Board
$9.07
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
4 Channel EV1527 433MHz RF Relay Board Kit Wireless RC Transmitter and Receiver Board Remote Control Relay Board
Product Description
The remote control and receiving module already contain 1527/2267 encoding chip and decoding MCU. The remote control outputs 1527 internal codes, that is, all remote controls can be used independently, and the codes issued are different. After receiving the signal from the receiving module, your MCU motherboard can drive 4 relay modules to implement wireless remote control appliances, which is very suitable for smart home projects. Before use, solder the spring antenna to the ANT pad of the receiving module, and then power on, so that the remote control and the receiving module are coded. Press and hold the learning button on the board for 2 seconds, the learning indicator on the board flashes once, it indicates that the learning mode has been entered; release the learning button, press any one of the remote control keys to flash 4 times to indicate that the learning is successful, and exit the learning mode. Output method: -By default (T2 and T1 are floating) is direct mode. When the button of the remote control is pressed, the corresponding pin of the receiving module will output a high level and will not output a low level until the key is released. -The back of the board (T2 ground, T1 floating) is self-locking mode. When the button of the remote control is pressed, the signal state of the corresponding pin of the receiving module is reversed, that is, the original output low level becomes high level, and vice versa Of course. -The back of the board (T2 floating, T1 ground) is in interlock mode. When the button of the remote control is pressed, the corresponding pins of the receiving module will output a high level, and the other pins will output a low level, and this output will be maintained. Status until another key is pressed.

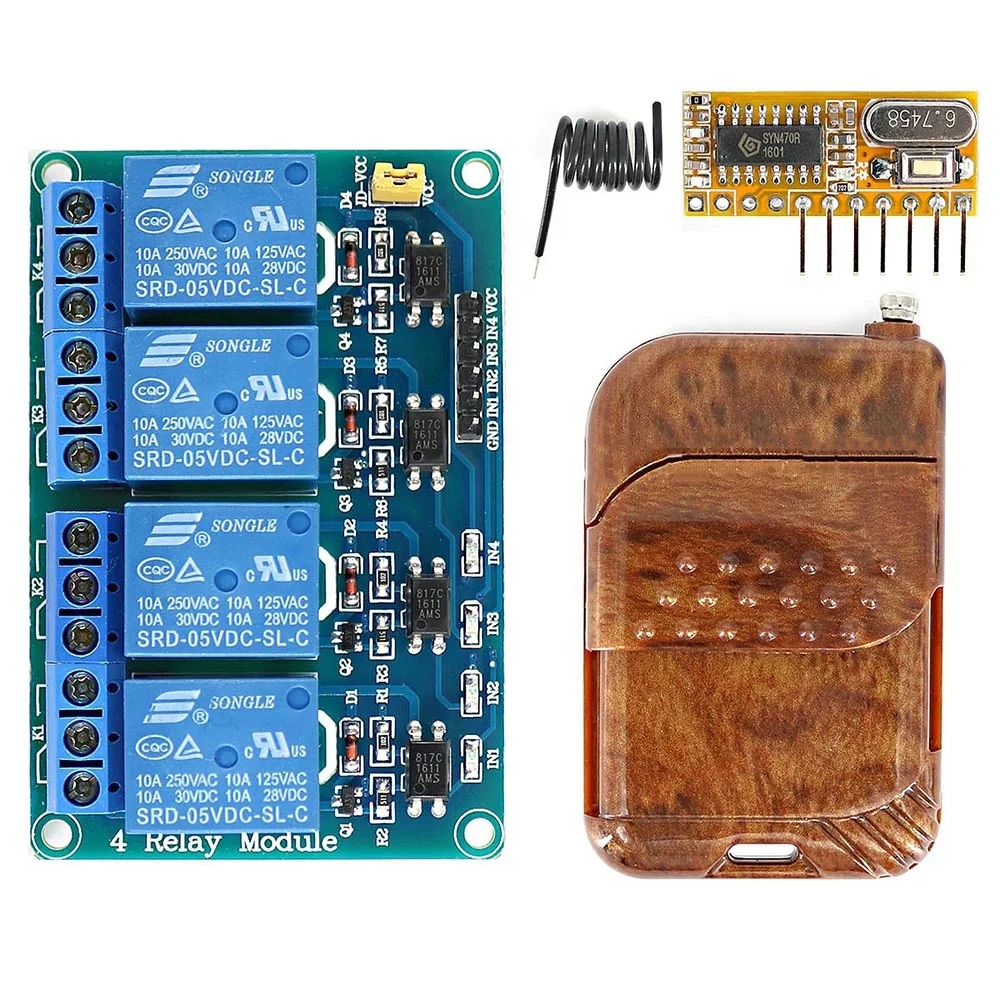

Receiving module

-Working voltage: 3.3-5.5VDC -Working current: 5mA (maximum) -Working frequency: 433MHz -Output pins: 4 (D0, D1, D2, D3) corresponding to A / B / C / D buttons of the remote control -Supported remote controllers: 2260, 2262, 2240, 1527, etc. -Antenna: ANT pad can be soldered with spring antenna -Great for DIY

Remote Control

-Working voltage: 12V -Battery type: 23A, 12V -Encoding chip: EV1527 -Working current: 10mA (maximum) -Working frequency: 433MHz -Buttons: 4

Relay expansion board

-Number of channels: 4 -Active level: low level -Operating voltage: 5V -Operating current: 75mA (per channel) -Maximum conversion voltage: 250VAC / 28VDC -Maximum conversion current: 10A -On-board red indicator -Widely used in home appliance control
Pin description
ANT
Requires an external antenna
GND
Power ground
LED
External indicator
SW
External learning button
VT
 can be connected with external indicator light, remote control signal indication output, flashing when receiving remote control signal
D0
 data output
D1
 data output
D2
 data output
VDD
power positive
GND
power ground
