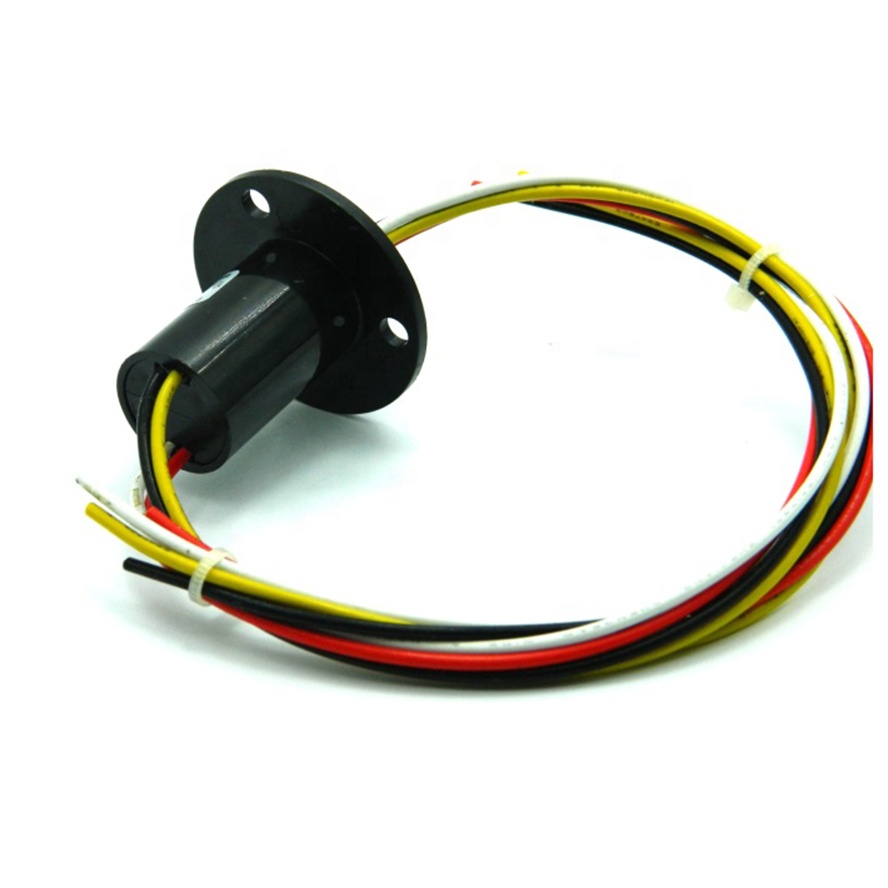

4 Channel 10A Current Conductive Slip Ring Collector Ring 360 Degrees Rotating Power Brush Conductive Ring
Product Description
Feature
1. The precise and compact internal structure design is 360° rotating and energized, and the wires will not be twisted or twisted or broken; 2. Stable, smooth, low-torque and smooth operation can simultaneously transmit multiple signals and powers such as electrical signals, high-definition video, high-frequency signals, command control, data transmission, servo motors, etc.; 3. The conductive ring adopts the V-slot design and is treated with imported military-grade wear-resistant gold to ensure extremely low resistance fluctuations and long working life.
Application
■ Closed-circuit monitoring PTZ ■ Manipulator ■ Medical and health equipment ■ Rotating work platform ■ Assembly line production, industrial control equipment
Specification
|
Number of channels
|
4 channels
|
Rated current
|
10A/wire
|
|
Rated voltage
|
0~240 VDC/VAC
|
Range of rotation
|
0-250rpm
|
|
Contact point material
|
Precious metal: gold-gold
|
Conductive ring material
|
Low resistance wear-resistant copper alloy precious metal material
|
|
Insulation resistance
|
500MΩ@250VDC/AC
|
Compressive strength
|
500V@50HZ, 60s without breakdown
|
|
Change in contact resistance
|
Static≤8mΩ
|
Working temperature
|
-20℃+60℃
|
|
Outer diameter
|
ø22 mm
|
Shell material
|
Engineering plastic or metal material
|
|
Wire specification
|
High temperature resistant AWG26# low resistance silver plated
|
Wire length
|
200mm, wire length, wire diameter, color can be customized
|
|
Protection grade
|
IP51
|
Installation Instructions
Notice
1. The service life of the product is strongly related to the working conditions such as working speed, working temperature, humidity and load. 2. Electrical noise is precisely related to working speed, current and voltage.
Details Images
