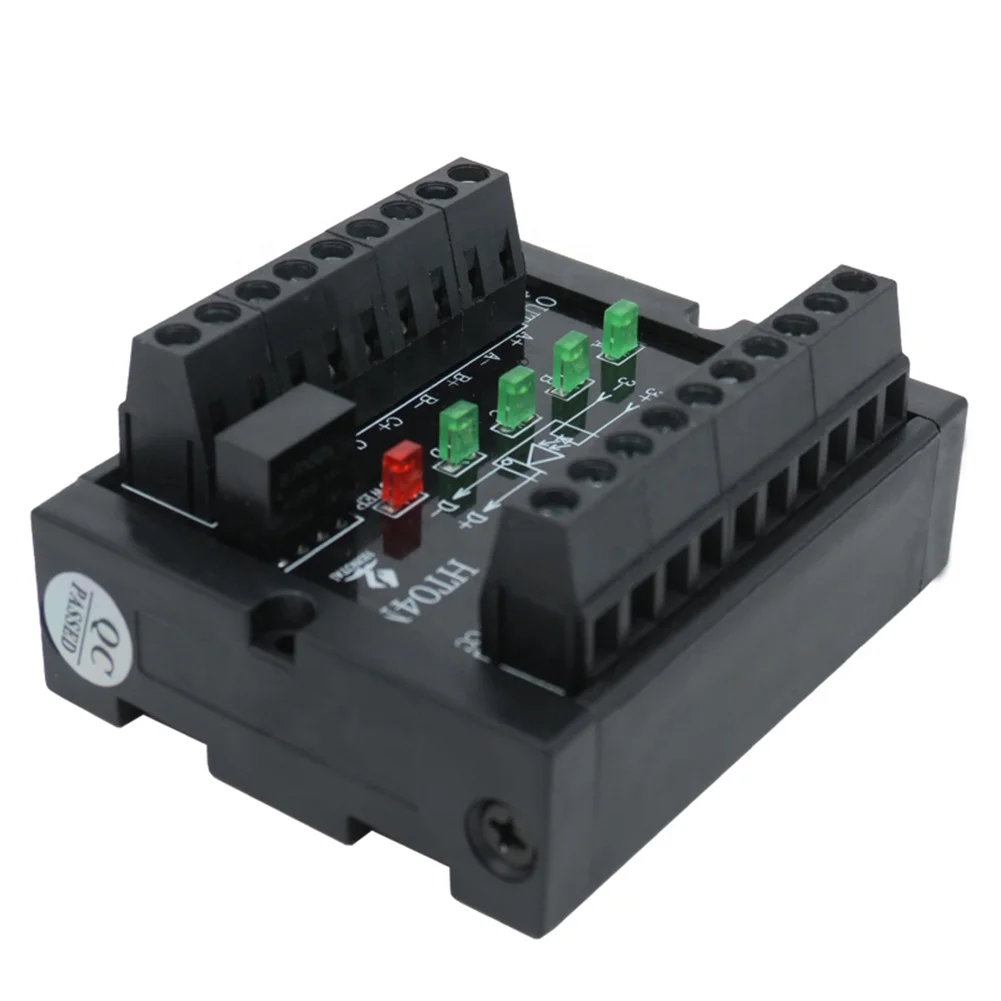

4 CH Collector/Differential/HTL/TTL to Differential Output HT04M DIN Rai Signal Isolator Converter Board for PLC MCU
Product Description
Features
The input and output are completely isolated, the timing positioning is accurate, the anti-interference ability is strong, and the transmission distance is long; Using original imported chips, small size, long life, no noise, no electromagnetic interference, fast response speed (frequency up to 10MHz), no pulse loss, little interference to the outside world, low output loss, built-in chip dust-proof and pollution-proof, with LED Action display, input and output status are clear at a glance. Support multiple signal input, TTL/EIA422/423 differential, sine wave, single-ended, collector signal and compatible with NPN and PNP signals
Use
The collector pulse signal output by the PLC is converted into a differential signal and then the servo system is controlled to enhance the transmission distance and improve the anti-interference ability. Support NPN and PNP PLC interface. Convert various single-ended, collector, and pulse signals into differential signals, and differential signal input can also be used for differential isolation! Support input signal waveform: differential waveform signal, sine wave signal, pulse signal Output signal waveform: differential waveform signal
Specification
|
item
|
value
|
|
Channel
|
4 channels (independent conversion channel, no need to connect)
|
|
Output voltage/current (max)
|
±5.0V / 40mA
|
|
Signal voltage/action current
|
DC8-30V/4-20mA voltage optional 3.3/5. 0V
|
|
Supply voltage
|
TTL/EIA422/423 differential, sine wave, single-ended, collector signal
|
|
Input support signal
|
Collector 8-24V / TTL differential 3-8V optional
|
|
Output signal
|
5V differential waveform signal (default), single-ended 5V signal optional
|
|
Input wiring method
|
10 points (one cross recessed head screw type)
|
|
Output wiring method
|
9 points (one cross recessed head screw type)
|
|
Use environment
|
Temperature: -40℃～＋100℃
|
|
Responding speed
|
tpHL: 20ns; tpLH: 20ns
|
|
Product weight
|
About 68g
|
|
Installation method
|
DIN35mm rail installation or M3*25 screw fixation
|
