Description

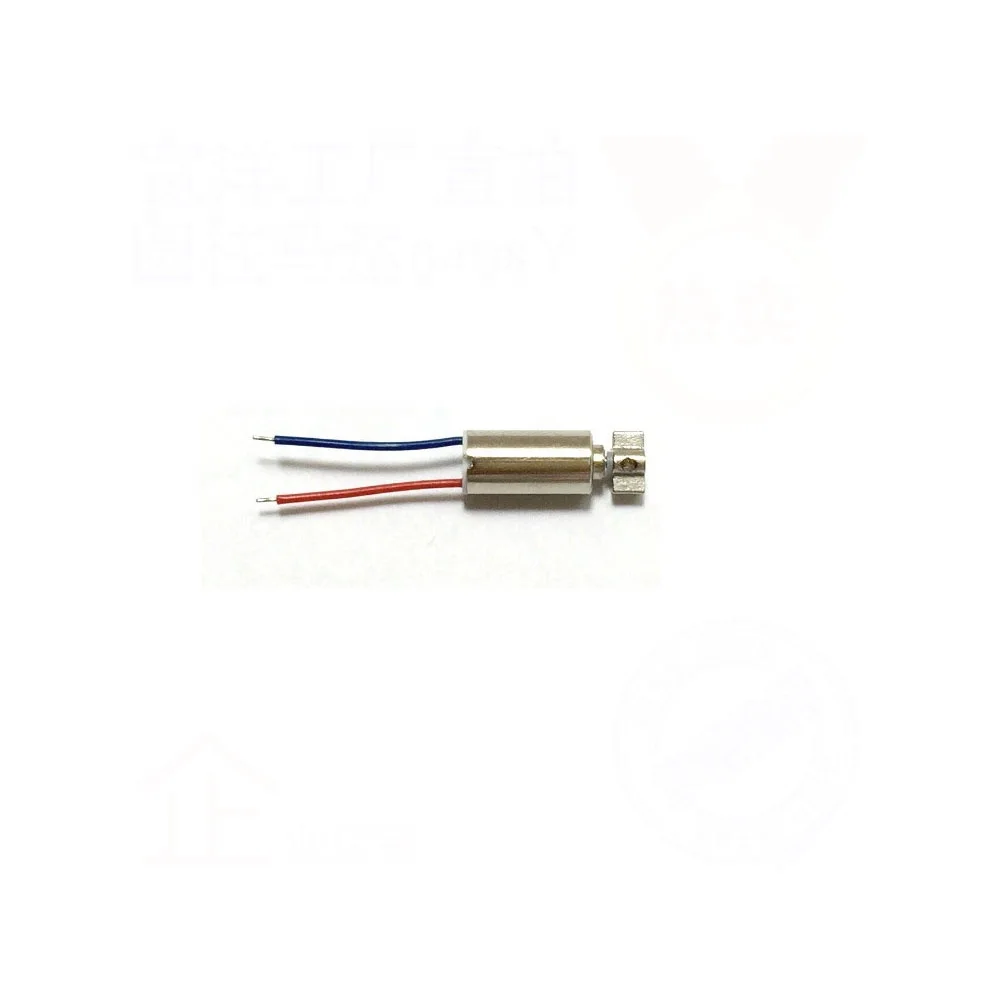

3V 0408 Hollow Cup Small Electric Vibrating Motor Mobile Variable Speed Vibration Motor for Vibration
Product Description
Hollow cup vibration motor, hollow cup vibration motor p4 series technical parameter reference (take 0408H-02 as an example):
Rated load eccentric hammer (refer to relevant drawings)
Direction of rotation
Rated load eccentric hammer (refer to relevant drawings)
Direction of rotation
|
Rated voltage
|
3. 0V DC
|
|
Use voltage range
|
2.5~4.0V DC
|
|
Use environment
|
-20°C ~ +60°C
|
|
Storage environment
|
-30°C~+70°C
|
|
Rated speed
|
11000±3000 RPM Min
|
|
Current
|
90mA Max
|
|
Stall current
|
120mA Max
|
|
Starting voltage
|
2.4V DC Max
|
|
Insulation resistance
|
10M2Min
|
|
Terminal impedance
|
309+15% (single phase) 11 609+15% (duplex)
|
