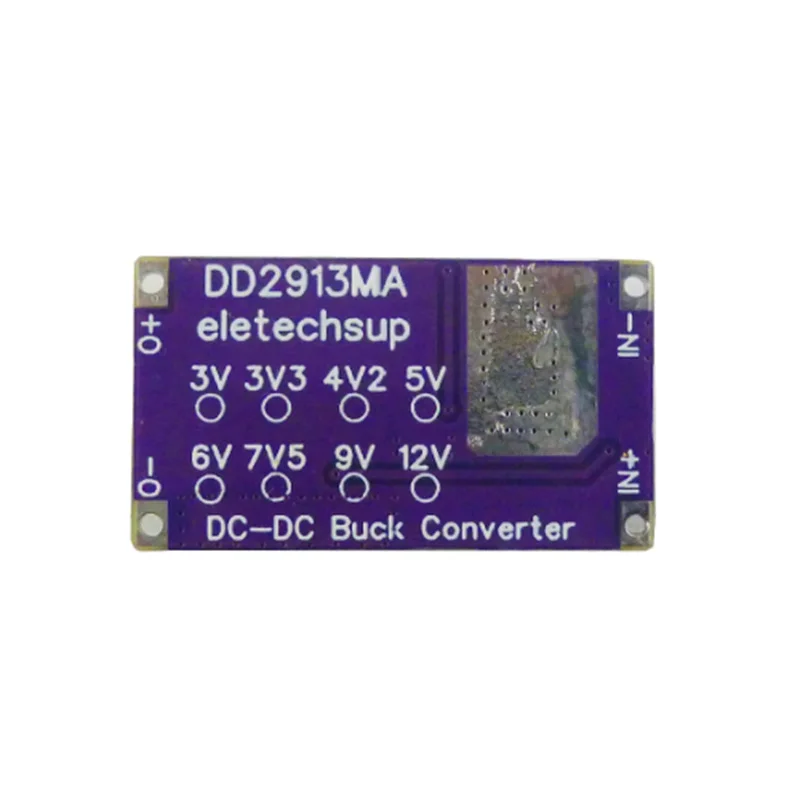

Mini Size High Efficiency PFM Synchronous Rectified Step Down Regulator Module
Input DC 30V-4.5V,Output DC 3V
Input DC 30V-4.5V,Output DC 3.3V
Input DC 30V-5V,Output DC 4.2V
Input DC 30V-6.5V,Output DC 5V
Input DC 30V-8V,Output DC 6V
Input DC 30V-9V,Output DC 7.5V
Input DC 30V-11V,Output DC 9V
Input DC 30V-14V,Output DC 12V
Maximum output current 2.6A,Short time maximum output current 3A(With good heat dissipation)
DC-DC Step-Down Converter module working frequency 500KHz. efficiency is 84-93% .
Quiescent current: 0.6mA
Operating Temperature :–40°C to +105°C
Size : 24 x 13.5 x 6mm
Weight : 2.5g
36W output power refers to the maximum output power of the 12V version
Multiple protections to ensure the safety of power supply at the rear stage:
Under-voltage protection (UVP)
Over Voltage Protection(OVP)
Over-Current Protection (OCP)
Over Temperature Protection(OTP)
Short Circuit Protection(SCP)
Internal Soft-Start
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Applications:
DC motor power supply
WIFI Router Ethernet Switch
Network Equipment
Multimeter instrumentation
PTZ CCTV IP Camera
Electric toys
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
Battery powered equipment
Audio amplifier
