Description
30K-200M Broadband Programmable Amplifier 0 to 65dB Adjustable Gain Amplifier Module Gain Control Step 0.5dB
Product Description
The input signal of the module needs to be greater than 10mV when the frequency is lower than 1MHz, and the lowest 2mV signal can be amplified when the frequency is higher than 1MHz. The default configuration of the module has a maximum gain of 65dB, which can be measured when the frequency is 50MHz and the input is 2mV. At this time, the output is about 4100mV.
Note
(1) The power supply of the module is a positive and negative dual power supply, and the voltage cannot exceed 5.5V. (2) Since the module is a high-precision device, in order to avoid unnecessary interference, it is recommended to use a linear power supply. (3) For the output signal, it is recommended to use the SMA to BNC line to input and output signals. Use an oscilloscope to observe the effect. Poor contact or poor quality wires may cause signal attenuation or excessive noise.
Specification
|
item
|
value
|
|
Module model
|
Broadband adjustable gain amplifier
|
|
Module type
|
Programmable gain amplifier
|
|
Module supply voltage
|
±5V
|
|
Module power supply current
|
71mA (Max), excluding the 45mA current of the main control board
|
|
Input signal form
|
Single-ended
|
|
Input voltage range
|
2mVpp-2Vpp (Max)
|
|
Input frequency range
|
10KHz-200MHz, default bandwidth 30KHz-200MHz
|
|
Input resistance
|
50Ω
|
|
Output signal form
|
Single-ended
|
|
Output voltage range
|
5.8Vpp (Max), different frequency output voltage is different
|
|
Input and output signal characteristics
|
Input and output capacitive coupling
|
|
Output current
|
±5mA (Max)
|
|
Module gain range
|
0~65dB gain adjustable
|
|
Gain control step
|
0.5dB
|
|
Gain control method
|
Program control, 3.3V-TTL or 5V-TTL
|
|
Gain control bits
|
8-bit
|
|
Module enable
|
Have
|
|
Module weight
|
15.9g
|
|
Module protection
|
With reverse connection protection, unlimited flow protection
|
|
Module specifications
|
80*33*14mm, length * width * height PCB size
|
|
Module heating
|
No heat sink, no heat dissipation required for normal operation
|
|
Module heating factor
|
Excessive supply voltage damages the chip or the module is damaged
|
|
Module working temperature
|
-25℃~+75℃, industrial grade
|
|
Module features
|
Positive and negative power LED indication, 2. 54-5PIN anti-reverse connection program
|
|
Scope of application
|
Receiver front end, signal processing front end, video receiver, etc.
|
|
Module interface type
|
SMA signal input and output, 5. 08 blue power card socket
|

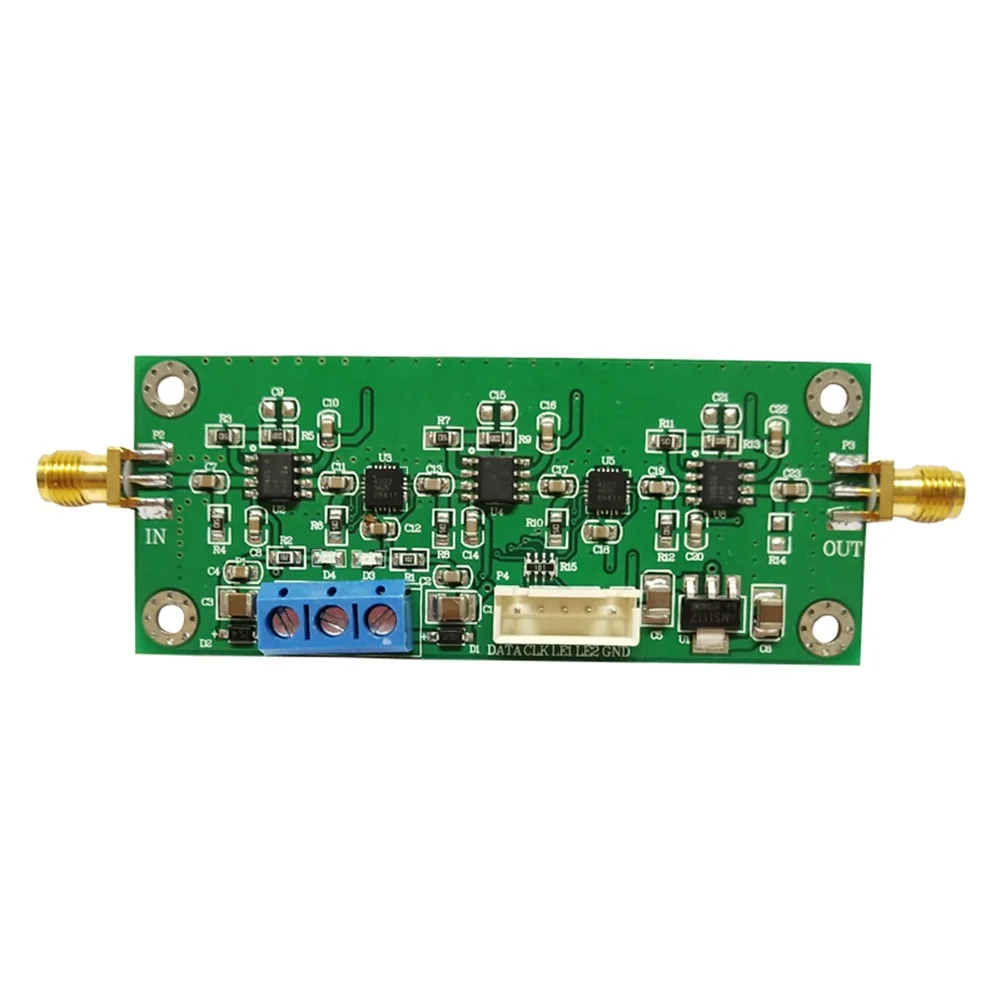

Details Images
