10M 1M Middle Range 860960 Mhz Uhf Rfid Tags Reader Module Read Rfid Uhf
General Description
It is a high-performance UHF RFID Reader Module, which is designed with lower dissipation, high integrated RFID chip design, cost effective and small size. It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti- counterfeiting systems and production process control and many other applications.
Key Features
* Designed with low power dissipation and high integrated RFID chip solution * Support EU 840~868MHz, US 902~928MHz working frequency (or Customized). * Support EPC Global UHF class 1 gen2 / ISO18000-6C protocol RFID tags. * Support temperature sensor RFID tag, moisture Sensor RFID tag and some other sensor RFID tags. * Optimized multiple tags inventory algorithm, speed is more than 100 per second * FHSS or Fix Frequency transmission * RF output power up to 30dBm (1dbm step adjustable) * Support IAP firmware upgrading. * Low-dissipation design with single +5V power supply * Support 4 GPIO ports GPIO, I/O Control for RS-485 port and indication I/O for Read Tag. * Support 1 external antennas with MCX socket * Support UART (3.3V TTL level) interface. * Effective distance 25m with 12dBi linear polarized antenna and E41 tag. * Provide DEMO and SDK for development * Support development based on Windows, Android, Linux etc. and C, C#, JAVA etc.
|
10M 1M Middle Range 860960 Mhz Uhf Rfid Tags Reader Module Read Rfid Uhf
|
||
|
Main Function
|
||
|
Protocol
|
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
|
|
|
Support Tags
|
Normal RFID tags; Temperature sensor; Moisture sensor rfid tag
|
|
|
RSSI Testing
|
Support
|
|
|
RFID
|
||
|
Frequency
|
EU 840~868MHz/ US 902~928MHz or customized
Fixed or FHSS |
|
|
RF Power
|
30dBm±1dB(Max)
|
|
|
Step Power
|
1dBm
|
|
|
Signal Width
|
<250KHz
|
|
|
Antenna Port
|
1 MCX or IPX
|
|
|
Tag Reading
|
||
|
Effective Distance
|
12dBi circular polarized antenna, 30dBm, standard E41 testing card.
Read:25m Write:6m |
|
|
Reading Speed
|
100tags/s
|
|
|
Communication Parameter
|
||
|
Interface
|
+3.3V TTL UART RS232
|
|
|
4 ports GPIO (+3.3V TTL Level)
|
||
|
1 port RS485
|
||
|
1 port tag access output indication
|
||
|
Baud Rate
|
115200bps
|
|
|
Power Parameter
|
||
|
Operating Voltage
|
DC 5.0V (+3.7V~+5.5V)
|
|
|
Operating Current
|
≤1.0A / DC 5V
|
|
|
Standby Current
|
≤50mA / DC 5V
|
|
|
Temperature Parameter
|
||
|
Operating Temperature
|
-20~+65°C
|
|
|
Storage Temperature
|
-30~+85°C
|
|
|
Operating Humidity
|
<95%RH (+25°C) Non-condensing
|
|
|
Mechanical Parameter
|
||
|
Dimension
|
55*31*8mm
|
|
|
Weight
|
23g
|
|

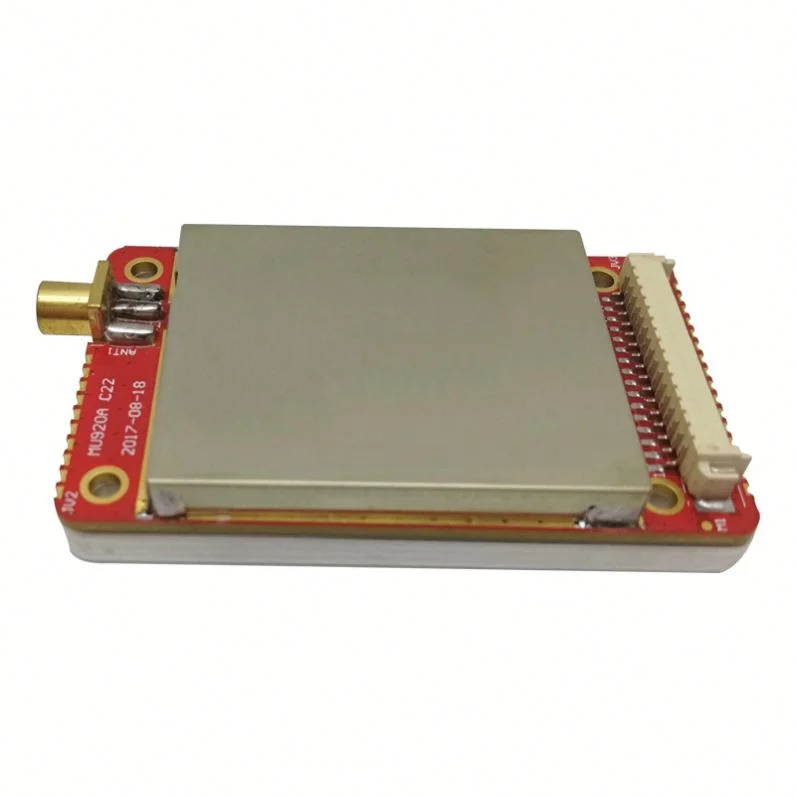

Product Picture
