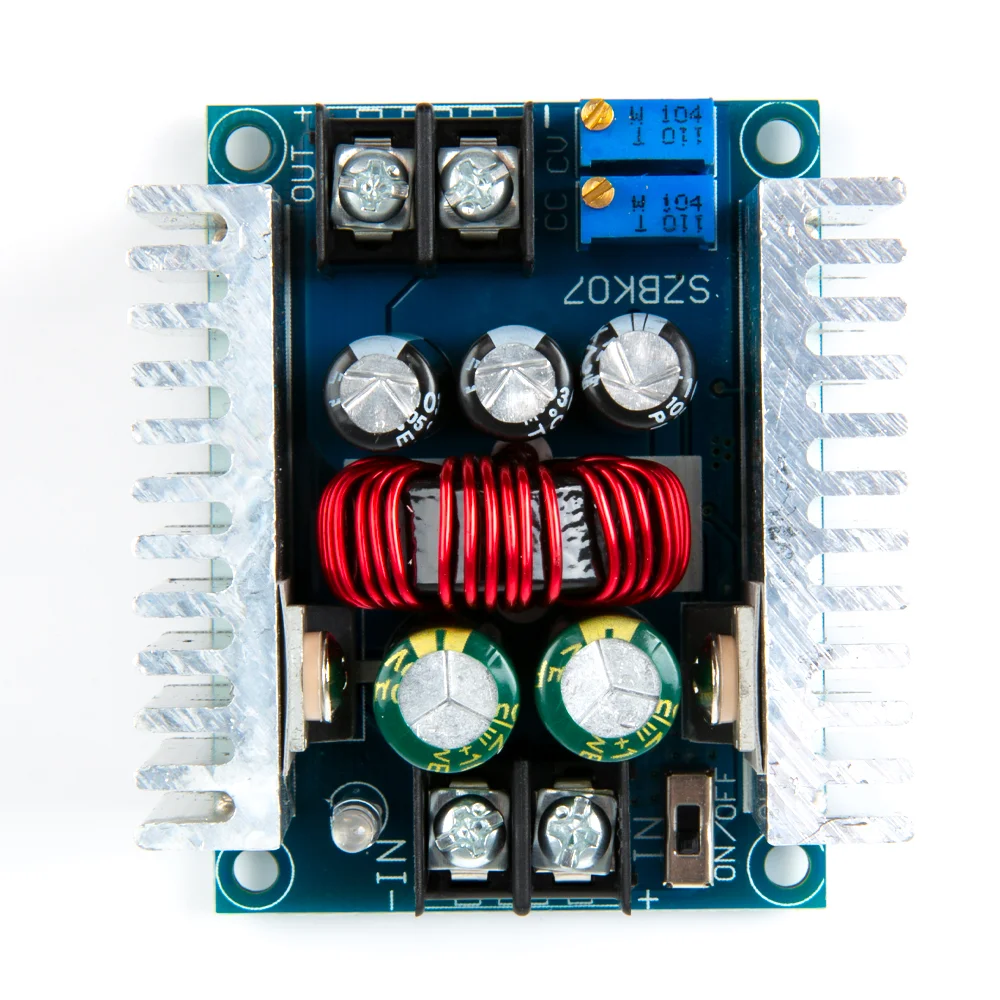

300W 20A DC-DC Converter Step-down Module Constant Current LED Driver Power Supply Module
Description
Wide input voltage range from 6-40 V, the step-down converter can accurately adjust output voltage and current.
Efficiency up to 96%, measured at 20 A, converting 24 V to 12 V
It is designed with 75 V / 80 A current dual MOS tube.
Input and output use high frequency low resistance electrolytic capacitor for stable output.
Large current 30 A screw terminals
The module has 2 heat sinks for enhanced heat dissipation.
When large input and output voltage occurs, please decrease power and current.
Efficiency up to 96%, measured at 20 A, converting 24 V to 12 V
It is designed with 75 V / 80 A current dual MOS tube.
Input and output use high frequency low resistance electrolytic capacitor for stable output.
Large current 30 A screw terminals
The module has 2 heat sinks for enhanced heat dissipation.
When large input and output voltage occurs, please decrease power and current.
|
Specifications
|
||
|
Input voltage
|
6 V to 40 V DC(10 V to 40 V suggested)
|
|
|
Output voltage
|
1.2 V to 36 V DC
|
|
|
Output current
|
20 A (max.), 15 A (suggested)
|
|
|
Efficiency
|
95%(24 V to 12 V, 20 A)
|
|
|
Output ripple
|
≤ 50 mV
|
|
|
Wiring method
|
Terminal
|
|
|
Short circuit protection
|
Self-recovery
|
|
|
Size
|
60 x 53 x 27 mm / 2.36 x 2.08 x 1.06 in
|
|
VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
When input and output is common grounded, no-load CV output constant voltage,CC output constant current
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
When input and output is common grounded, no-load CV output constant voltage,CC output constant current
