Description
Specification

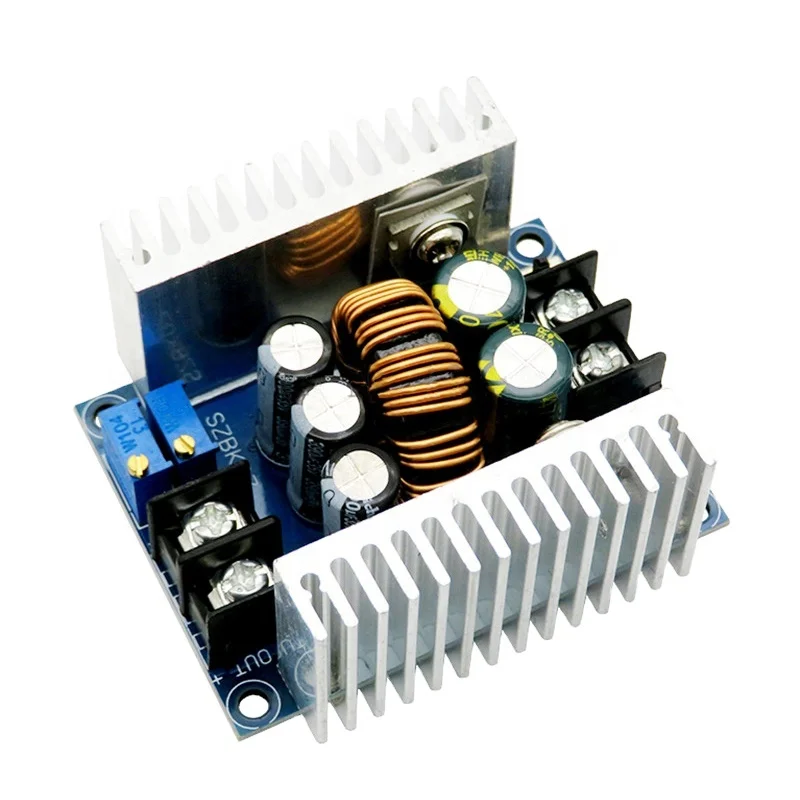

300W 20A DC-DC Buck Converter Step Down Module Constant Current LED Driver Power Step Down Voltage Module Electrolytic Capacitor
| Input Voltage | 6V to 40V DC(10V to 40V is suggested) | ||||||
| Output Voltage | 1.2V to 36V Dc | ||||||
| Output Current | 20A(max.),15A(suggested) | ||||||
| Efficiency | 95%(24V to 12V, 20A) | ||||||
| Output Ripple | ≤50mv | ||||||
| Wiring Method | Terminal | ||||||
| Short Circuit Protection | Self-recovery(cannot short circuit for long time) | ||||||
| Size | 60 x 53 x 27mm / 2.36 x 2.08 x 1.06" | ||||||
| VO+ | Output positive | ||||||
| VO- | Output negative | ||||||
| +IN | Input positive | ||||||
| -IN | Input negative | ||||||
| CV | Output voltage adjustment | ||||||
| CC | Output current adjustment | ||||||
| EN | Enable, low voltage level shut off output; suspension, high voltage level is effectiveWhen input and output is common grounded, no-load cV output constant voltage,ccoutput constant current | ||||||
Products Description
FAQ
Q1. What is your terms of packing?
A: Generally, our modules are all with Anti-static bag individually wrapped,also can be accepted customized package.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 1-3work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery?
A: Generally EXW,can be according to customer’s requests.
Q4. How about your delivery time?
A: Generally, goods would be shipped in 1-3 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
