Description

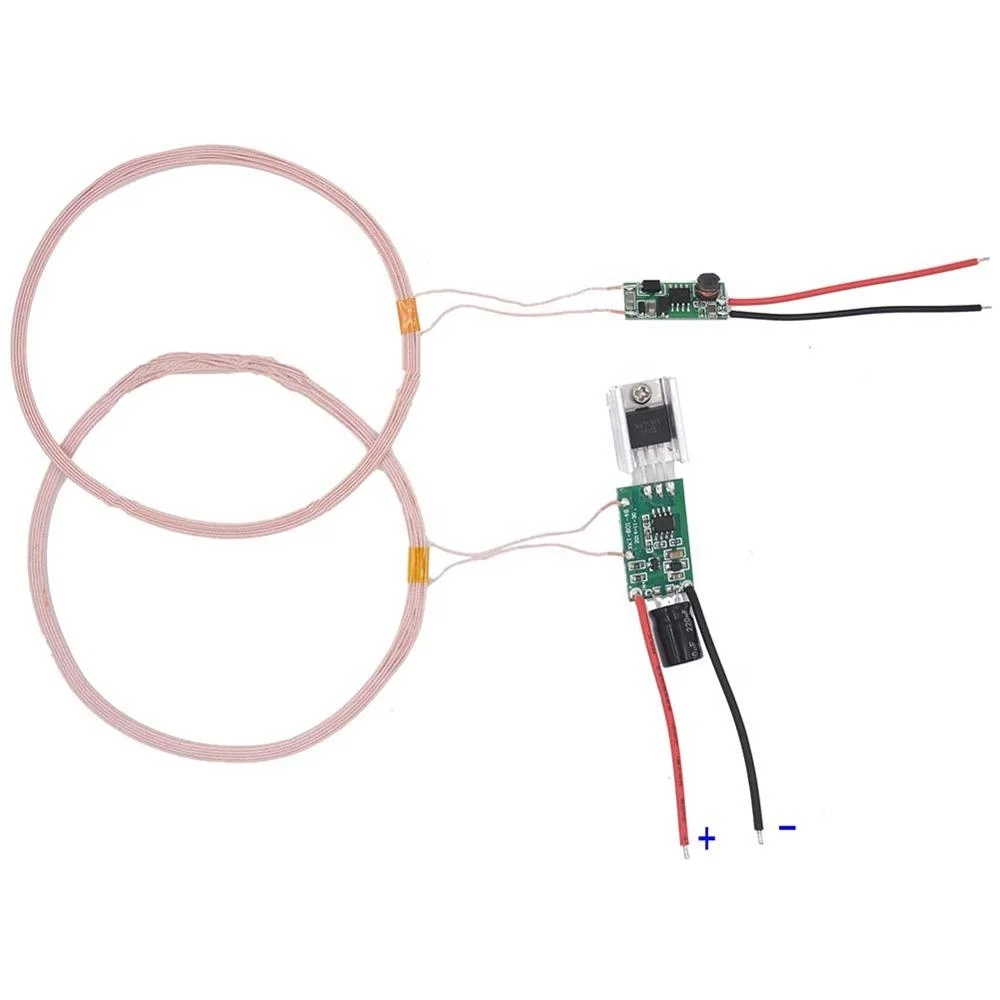

30~80mm DC Long Distance Wireless Charging Transmission XKT801-24 Wireless Power Station iInductive Charging Module

80mm DC remote module, designed with XKT-801 chip, the circuit is simple and practical

The main technical parameters:

Transmitting voltage (12V~) 36V
Transmitter module size 17*28mm
Transmitting coil inner diameter 90mm outer diameter 100mm
Receiver module size 10mm*25mm



Receiver coil size: inner diameter 90mm outer diameter 100mm

Sensing distance: receiving output 5V600mA when 80mm

Receive output 5V150mA at 70mm

Receive output 5V250mA at 60mm

Receive output 5V350mA at 50mm

Receive output 5V500mA at 40mm

Receive output 5V600mA at 30mm

Note: This module can not be used below 30mm!

Proximity will overvoltage damage the receiving module!
