Features
100% Brand new !

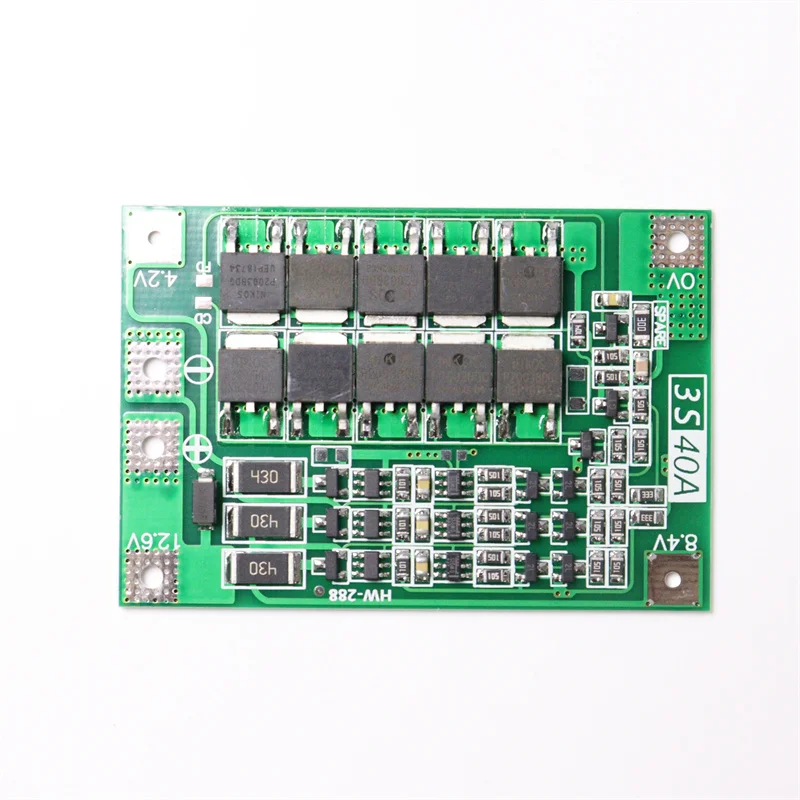

3 string 40A lithium lipo battery protective board module.
Enhanced version without balanced function, applicable to electric drills/drill motor with starting current below 80A, power below 130W, resistive Load below 504W.
Ideal 3S 40A 3S40A li-ion lithium battery 18650 charger protection board BMS PCB 11.1V 12.6V cell charging protecting module.
Specifications
Charging Voltage: 12.6V~13.6V
Continuous Discharge Current (upper limit): 40A(If the cooling environment is not good, please reduce the use of load current.)
Continuous Charge Current (upper limit): 20A
Size: About 41x55x3.4mm/1.6x2.2x0.13"
Scope: Nominal voltage of 3.6V, 3.7V lithium battery(including 18650, 26650, lithium polymer battery)
Attentions
1. Please allow tiny size deviations due to human measurement.
2. This item is an enhanced version BMS PCB without any equalized charging.
3. The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery(ordinary 18650 can not start the drill!!).
4. Strictly according to wiring guide 0V, 4.2V, 8.4V, 12.6V, do not touch any components on the board while soldering the wire to avoid short circuit.
5. Do not mix good batteries with bad ones.
6. The closer the internal resistance of the three battery capacities is the better.
7. When charging the battery, the "430" resistor heat is normal, indicating that the equalization circuit is working; if the "430" resistor is also hot in the uncharged state, please check if the wrong line is connected.
