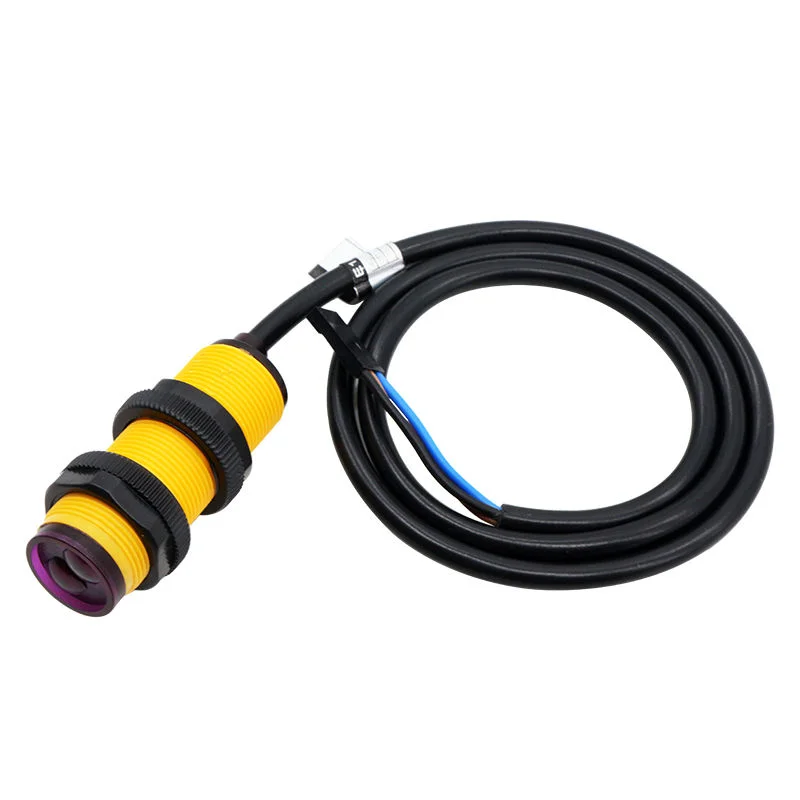

3-80cm Detection Infrared Obstacle Avoidance Photoelectric Sensor Proximity Switch E18-D80NK

Description:
This is a set of transmitter and receiver in one of the photoelectric sensor. The detection distance can be adjusted upon request. The sensor has a detection distance and the visible light interference, cheap, easy to assemble, easy to use features of robot obstacle avoidance, and assembly line piece can be widely used in many occasions.
Electrical Characteristics:
U: 5VDC
I: The 100mA
Sn :3-80CM
Size:
Diameter: 17MM
Sensor length: 45MM
Lead Length: 45CM
Applications:
1.A production line goods automatic counting device
2, multi-functional reminder
3, the maze robot
Red: connected 4.5-5V power supply high
Yellow: connected microcontroller output TTL level to the microcontroller
Green: GND 0V power low
Photoelectric sensor (photoelectric switch) NPN normally open
