Description
Product Description

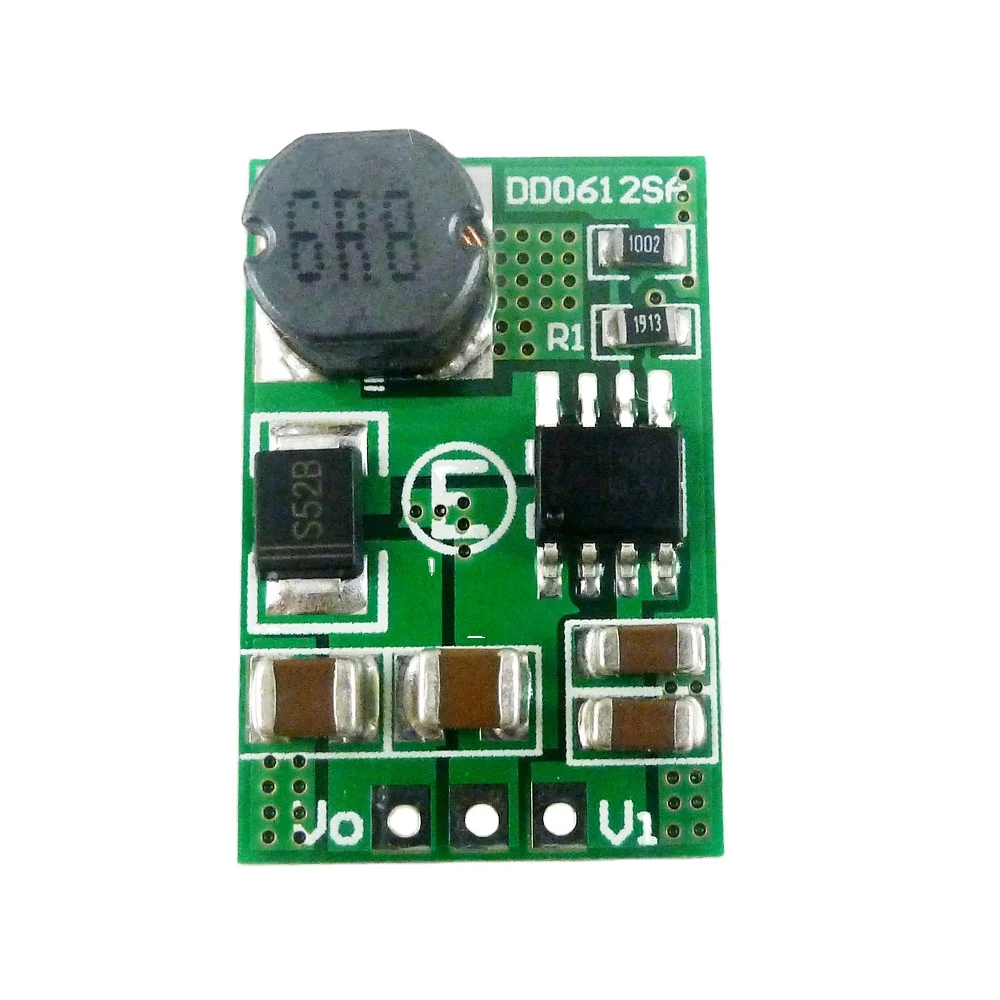

3.5A DC-DC 3V 3.3V 3.7V 4.2V 5V to 5V 6V 9V 12V Step-up Boost Converter Voltage Regulate Power Supply Module
5V:
Input voltage DC 2.6 ~ 5V,output DC 5V±3%
Maximum output : 5V/2.6A(See the table below for details)
6V:
Input voltage DC 2.6 ~ 6V,output DC 6V±3%
Maximum output : 6V/2.5A(See the table below for details)
9V:
Input voltage DC 2.6 ~ 6V,output DC 9V±3%
Maximum output : 9V/1.6A(See the table below for details)
12V:
Input voltage DC 2.6 ~ 6V,output DC 12V±3%
Maximum output : 12V/1.2A(See the table below for details)
DC DC Boost Converter Module working frequency 1MHZ.
Up to 96% Efficiency (usually is 74%-96%)
Quiescent current : 0.19mA
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,for MCU Development Board Breadboard friendly.
Size : 23.8x 16 x 6.3mm
Weight : 2.51g
Protection :
Over current protection(OCP)
Over voltage protection(OVP)
Short circuit protection(SCP)
Over temperature protection(OTP)
Applications
Battery powered equipment
MCU Breadboard Power Supply
Small power motors
Camera, Video camera
Toy car boat
Model aircraft
power bank
LED Lighting
Mobile phone charger
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself
