3.3-5V 1.3 Inch LCD Screen SSH1106 IIC Interface OLED Display 4 Pin 128x64 I2C OLED Screen SSH1106

Interface OLED Display
$7.46
Specification : 1.3 Inch
Model Number : 1.3 Inch Screen SSH1106 128x64 IIC OLED
Color : White Color
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description

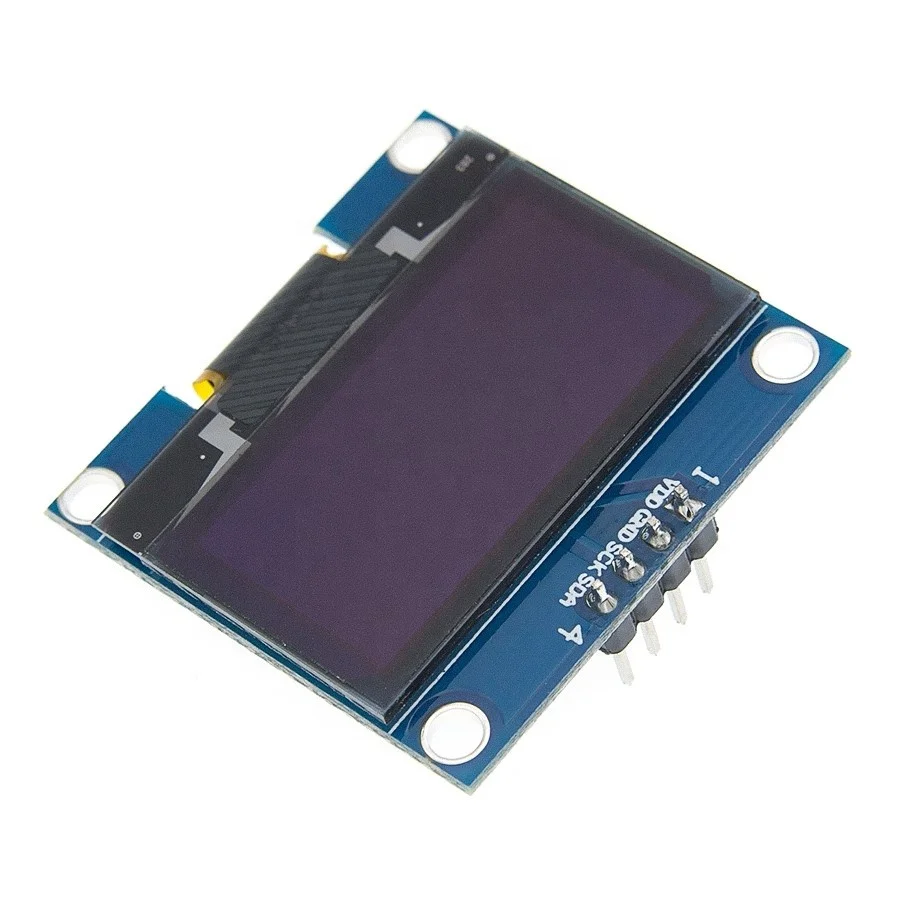

3.3-5V 1.3 Inch Screen SSH1106 IIC Interface OLED Display 4 Pin 128x64 I2C OLED Screen SSH1106
Products Description
1.3 inch blue LCD display module IIC communication OLED display module 4-pin
Product Paramenters
item
value
Resolution
128 * 64
Control chip
SSH1106
Display area
29.42*14.7mm
Drive voltage
3.3-5V
Working temperature
-40 ~ 70
Interface type
IIC interface

Pin definition

GND (power ground) VCC (power positive) SCL (clock line) SDA (data line)
Regarding the control chip SSH1106: SSH1106 is basically compatible with SSD1306. The difference is that the RAM space of the SSH1106 control chip is 132*64, while the space of SSD1306 is 128*64. The 1.3-inch OLED 128*64 dot matrix, so it took 128 in the middle of the screen Row. When using the SSD1306 program to point to the SSH1106 screen, just change the address to line 0x02 to start.
Details Images
